Plate 21M techn. ivory - 14691.02

Pdf

14691.02
Wiring devices / Traditional wiring devices / PLANA / Cover plates

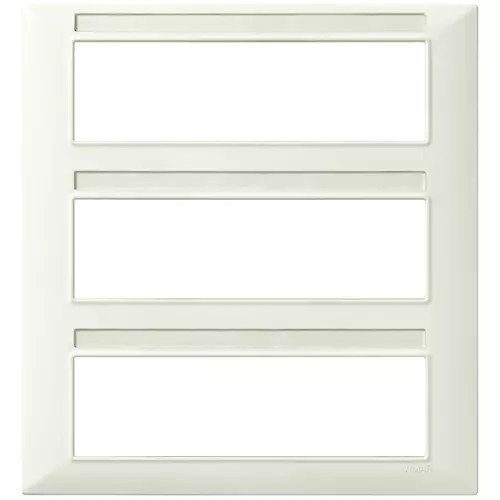

Plate 21M techn. ivory
21 (7+7+7)-module cover plate, technopolymer, ivory

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
21
Mounting direction
Horizontal and vertical
Number of units horizontal
7
Number of units vertical
3
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
3
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9002
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
206,00 mm
Height
222,00 mm
Depth
9,00 mm
Built-in width
206,00 mm
Built-in height
222,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352111349
1 NR
25.5x29.6x1.1 [cm]
93.2 [g]
Barcode Qty 5 NR
8007352111356
5 NR
21.7x22.1x8.3 [cm]
558.47 [g]
