KNX IR presence detector white - 14850

Pdf
14850

Plana / Systems / KNX

KNX IR presence detector white
Passive infrared motion detector, KNX standard, white - 2 modules

Product Status
4 - Active

Class group
Installation bus systems
Class
Movement sensor for bus system
Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
Model
Movement sensor
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Bus connection included
Yes
Staircase monitoring
Yes
Response value luminosity adjustable
Yes
Max. transmission range sideways
10,00 m
Detection angle vertical
-30 - 6
Detection angle horizontal
-56,00 - 56,00
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352390256
1 NR

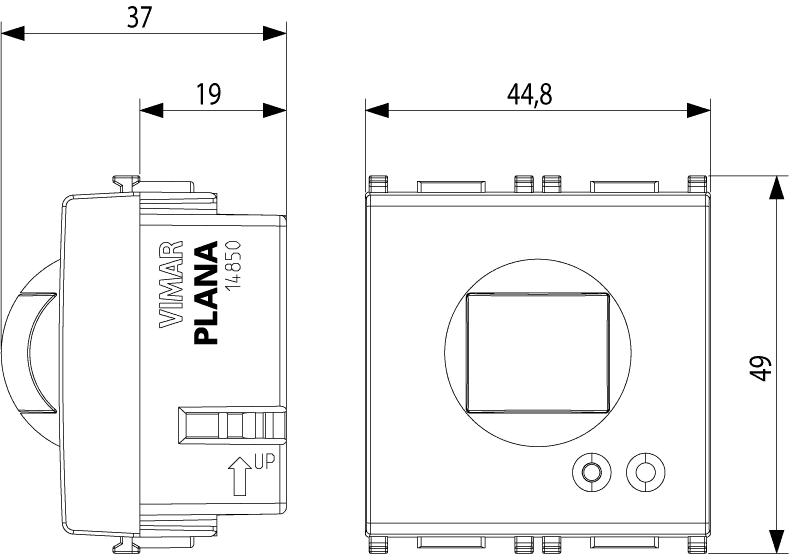

11.2x9.6x9.8 [cm]
106 [g]
