250V 16A 4-output actuator KNX - 01523.1

01523.1
Smart systems&products / KNX / Shared components / DIN devices

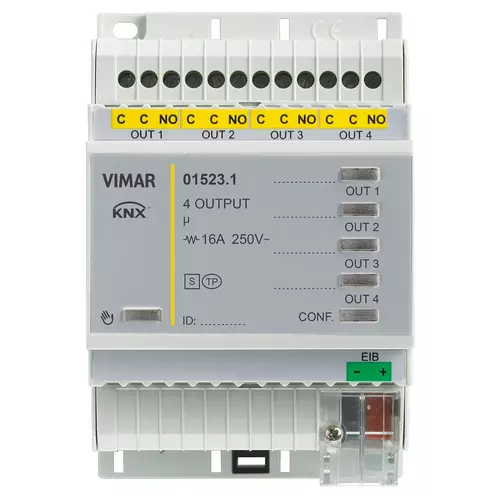

250V 16A 4-output actuator KNX
Actuator with 4 NO relay outputs 16 A 250 V~, programmable with control function for lights, roller shutters with slat orientation, push buttons for local control, KNX standard, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Product Status
3 - Active

You may also be interested in

01522.1 - Device 4inputs/outs KNX

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1023 kb)
• Manuale installatore (2707 kb)
• Manuale installatore (2591 kb)

Product Software

• DB_ComponentiAutomazione_KNX_01.16_20210920.zip
• DB_ComponentiAutomazione_KNX_01.19_20230331.zip
• DB_ComponentiAutomazione_KNX_01.20_20240917.zip
• DB_ComponentiAutomazione_KNX_01.21_20250224.zip

---

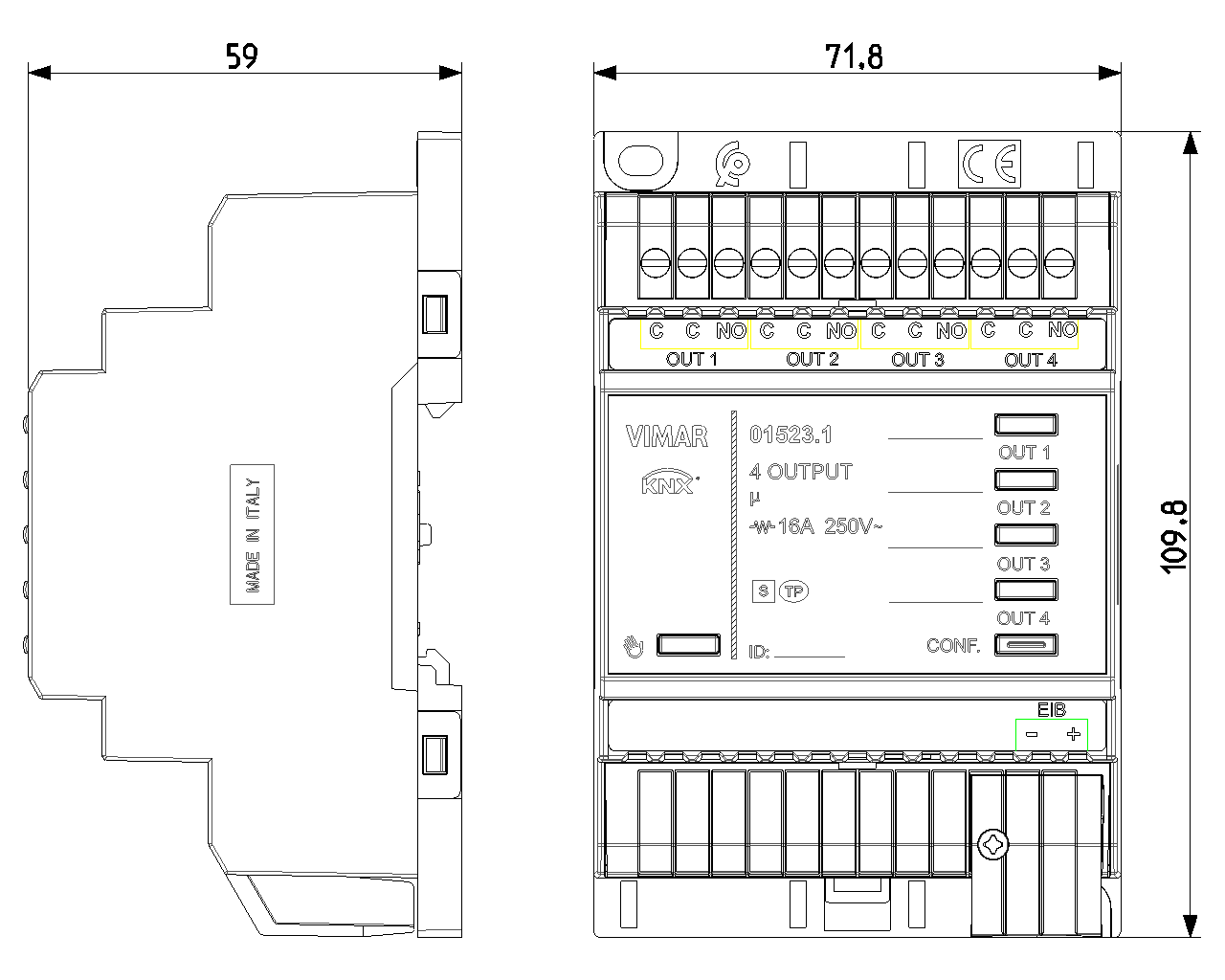

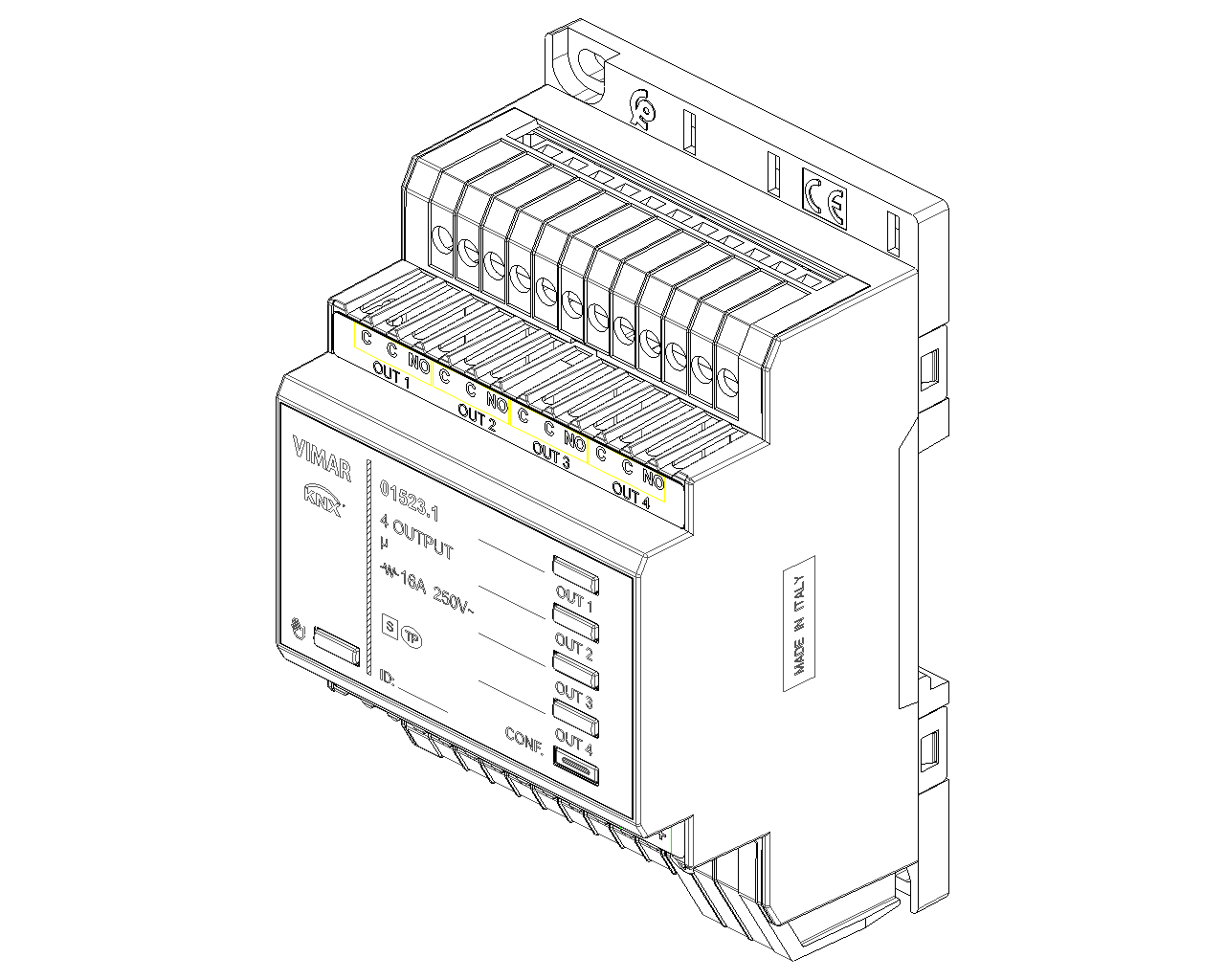

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Actuating drive for bus system

Bus system KNX
Yes

Bus system KNX-RF (Radio Frequency)
No

Bus system radio frequency
No

Bus system LON
No

Bus system Powernet
No

Radio frequency bidirectional
No

Mounting method
Other

With bus connection
Yes

Temperature control with built-in continuous control
No

Buttons for manual operation at the drive
Yes

Function master/slave
No

Nominal voltage
250 V

Voltage supply over bus
No

00. CE Marking - EU

27. KNX

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352644359

1 NR

11.7x10.8x7.1 [cm]

273 [g]
