IP55 enclosure with inserted socket 2M - 14963

Pdf
14963

Enclosures and mounting boxes / IP40 and IP55 series / IP55 covers - Isoset

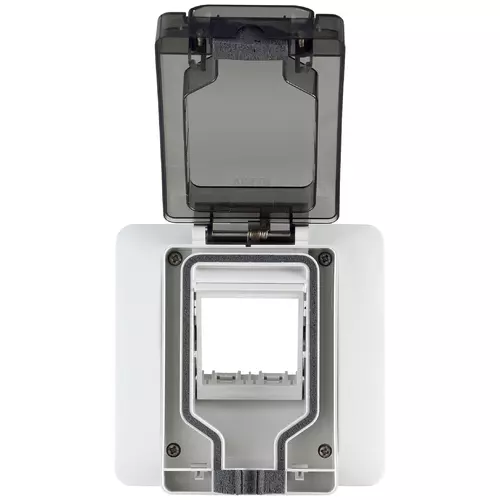

IP55 enclosure with inserted socket 2M
Watertight IP55 cover with inserted plug, 2 Eikon, Arké and Plana modules, for installation on 3-module flush mounting box

Product Status
3 - Active

You may also be interested in

Class group
Connection devices
Class
Equipment carrier for insulated walls
Material
Plastic
Mounting surfaces
Other
With full insulating materials
Yes
Minimum order quantity: 4 NR

Barcode

Barcode Qty 1 NR
8007352656208
1 NR
8.5x12.5x7.8 [cm]
241.9 [g]
Barcode Qty 4 NR
8007352656215
4 NR
28.4x18.4x13.7 [cm]
1,070.5 [g]
Question: What type of plugs are compatible with this enclosure?
Answer: Cables wired with both axial plugs or with space-saving plugs can be used. The rotation of the connector block towards the front or downwards allows for maximum compatibility.
Question: Does the product already come supplied with connector blocks?
Answer: No, the product is supplied without connector blocks, and it can be completed according to individual requirements.
Question: Can I install controls in the enclosure?
Answer: Yes, controls can be installed. To activate them, you will need to open the front cover.
Question: Which wiring series connector blocks can I install in the enclosure?
Answer: The enclosure is designed for the installation of connector blocks from the Eikon, Arké or Plana wiring series.
Question: Which connector blocks can I install?
Answer: Two one-module connector blocks or one two-module connector block can be installed.
