Flush mounting box 3M light blue - V71303

Pdf

V71303
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

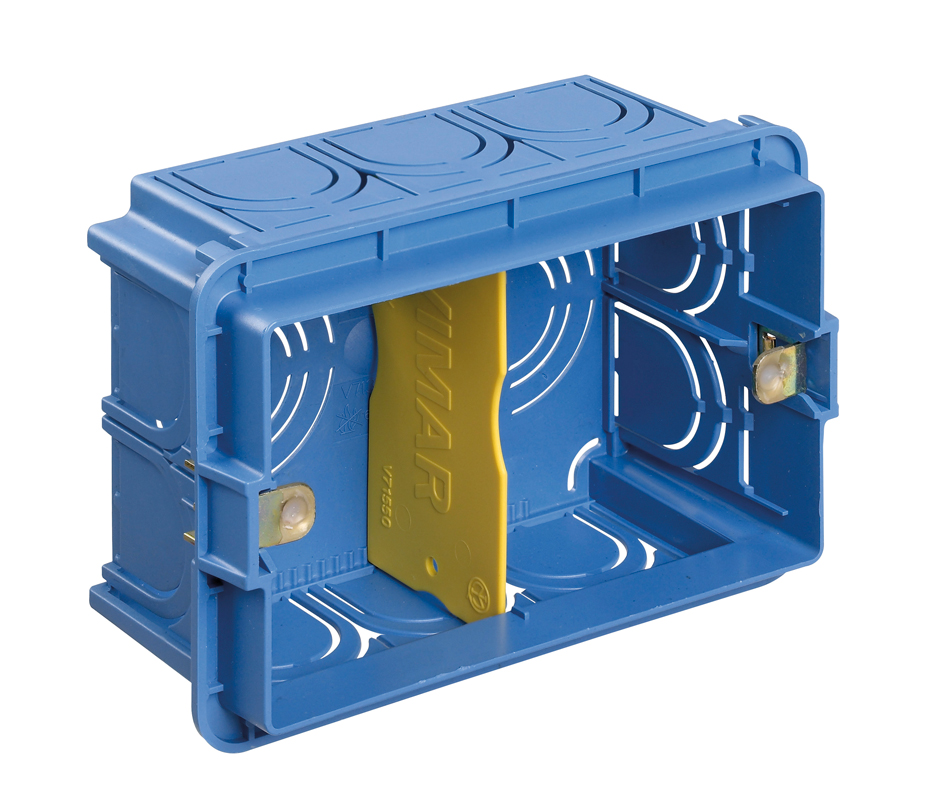

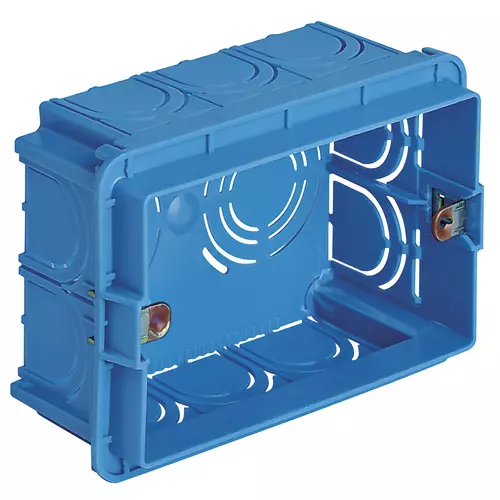

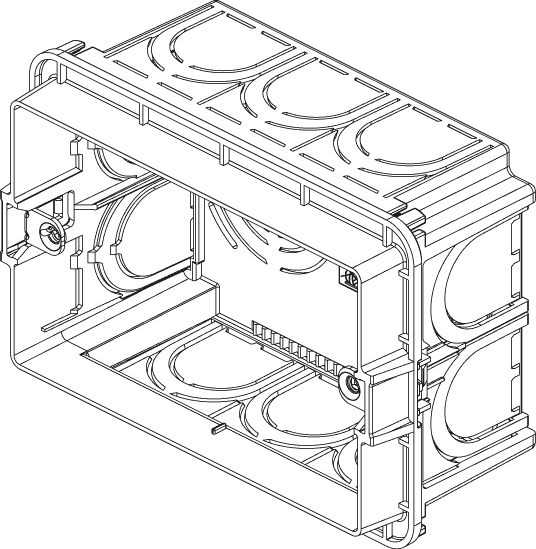

Flush mounting box 3M light blue
3-module flush mounting box, (Glow Wire 650 °C), for masonry walls, light blue

  • Plenty of space of internal wiring
  • Wide range of accessories available: anti-mortar covers, coupling joints to create multiple series of boxes
  • Knockouts designed for the insertion of pipes with various cross-sections
  • Rack for fixing the dividing screen (patented)
  • Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing

Product Status
3 - Active

You may also be interested in

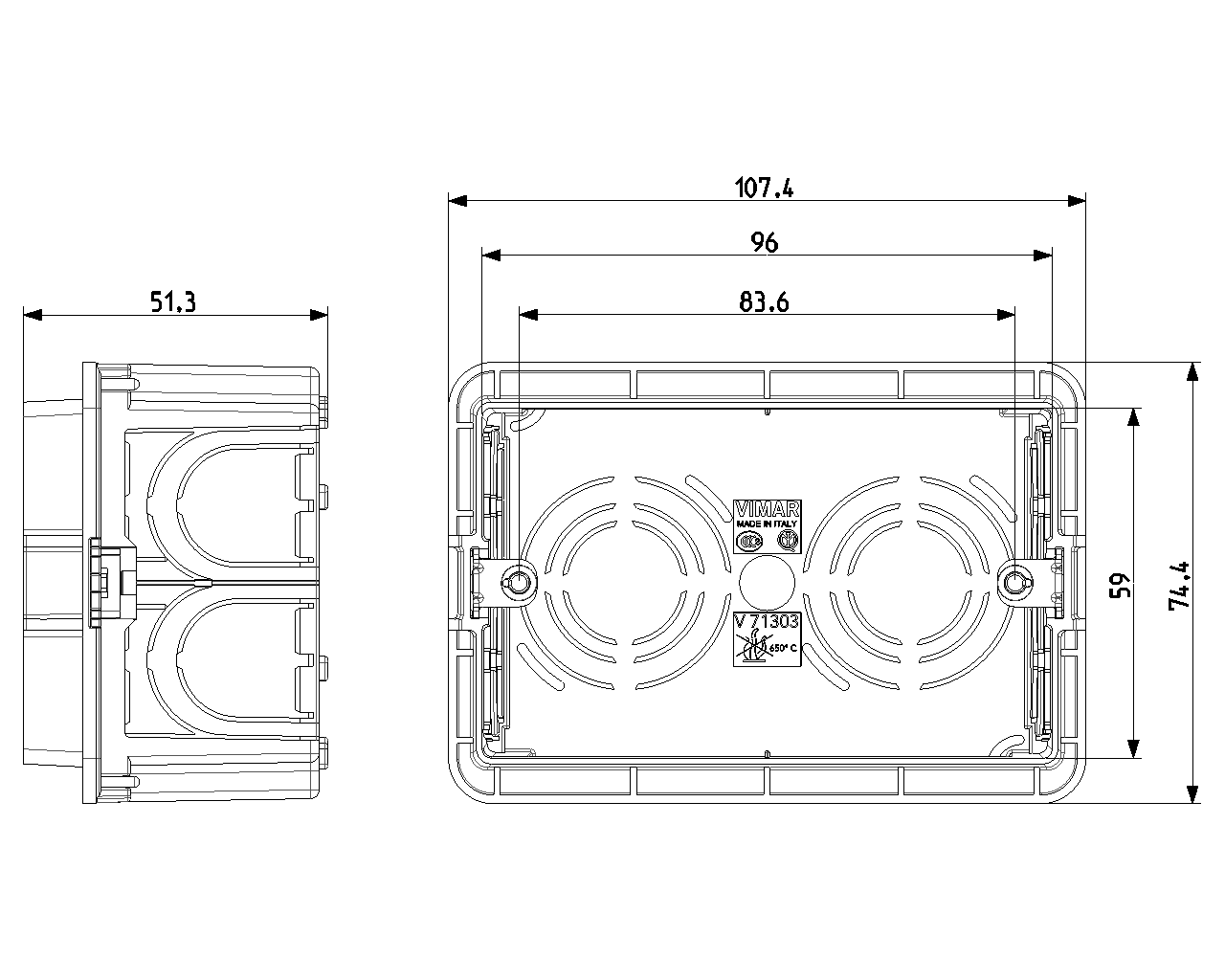

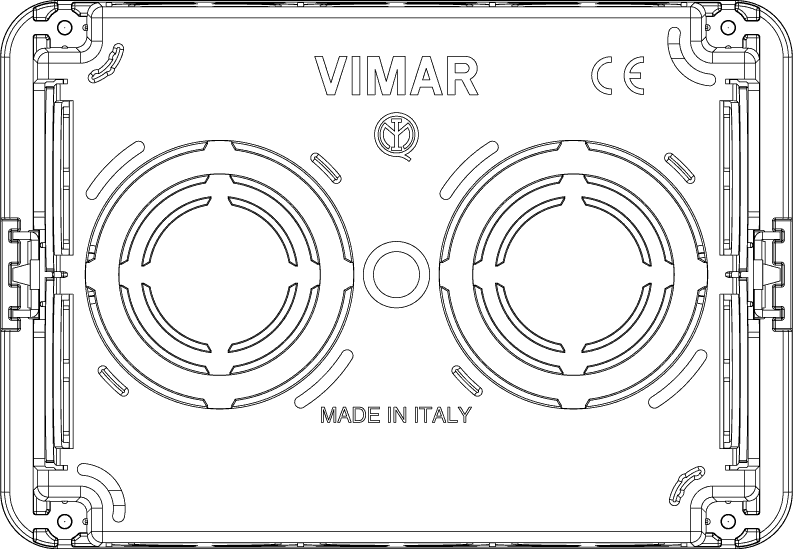

Drawings

Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm
Length
59,00 mm
Width
96,00 mm
Depth
0,00 - 49,80 mm
Inner depth
50,00 mm
For number of electric fittings
3
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
12
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

43. UKCA mark - Great Britain

50. Product Environm. Profile

Minimum order quantity: 15 NR

Barcode

Barcode Qty 1 NR
8007352079342
1 NR
10.6x7.4x5 [cm]
32.27 [g]
Barcode Qty 15 NR
8007352119420
15 NR
54x10.7x7.5 [cm]
504 [g]
Barcode Qty 300 NR
8007352119451
300 NR
59x39x44 [cm]
10,900 [g]
Barcode Qty 4,800 NR
8007352263499
4,800 NR
80x120x190 [cm]
190,720 [g]
Question: What do I need to install the warning light assembly (article 02084)?
Answer: The LED light (article 02084) can be installed on surface and flush mounting in a 3-module box (article V71303).
Question: Can box V71303 also be used outdoors?
Answer: Flush mounting box V71303 is for both indoor and outdoor use.
Question: Where do you insert the pipes in flush mounting box V71303?
Answer: Through the knockouts (which can be knocked out without the need for any tools) designed for the insertion of various section pipes on each side with differentiated diameters.
Question: Can electrically separate compartments be created?

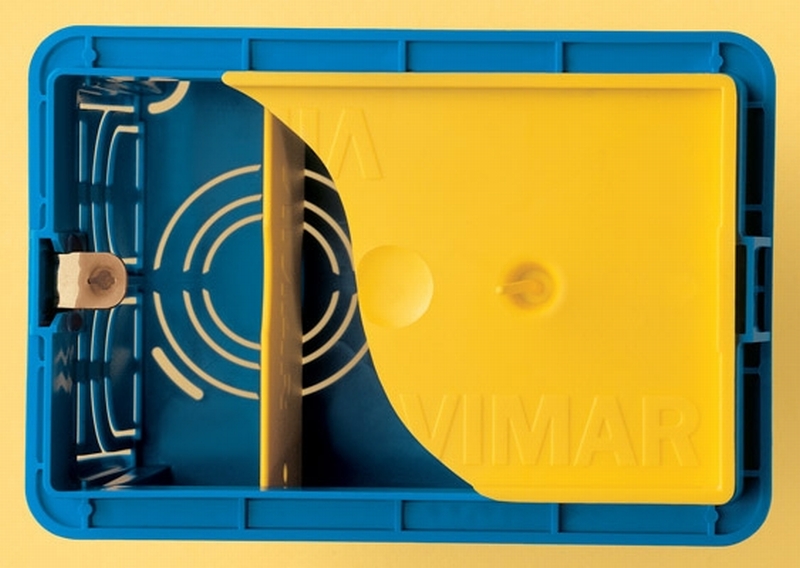

Answer: Yes, electrically separate modular compartments can be created using dividing screen V71550 secured to a patented rack.
Question: Is use on plasterboard walls acceptable?
Answer: Mounting box V71303 is envisaged for masonry walls and not plasterboard walls, which require a higher resistance on the part of the insulating material to abnormal heat and fire.
