1P NO 16A push white - 16101.B

Pdf

16101.B
Wiring devices / Traditional wiring devices / IDEA / Devices

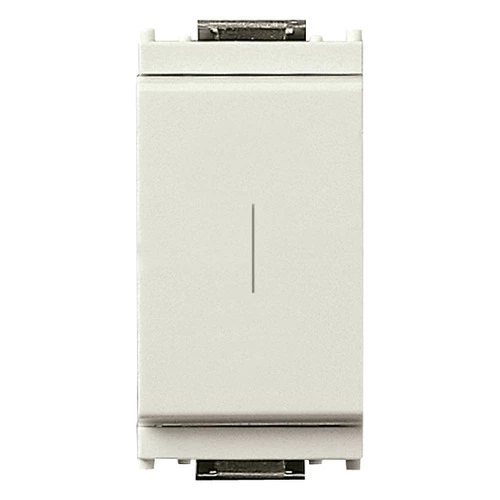

1P NO 16A push white
1P NO 16 A 250 V~ push button (ON), white

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
24,80 mm
Device height
50,10 mm
Device depth
42,50 mm

00. CE Marking - EU

01. IMQ - Italy

19. NOM - Mexico

20. IQC - Argentina

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352067325
1 NR
5.1x2.8x5.3 [cm]
28.2 [g]
Barcode Qty 20 NR
8007352067332
20 NR
27x11.6x6 [cm]
633.4 [g]
Barcode Qty 120 NR
8007352650404
120 NR
37.5x30x13.5 [cm]
4,152 [g]
