1P 10AX 2-way switch white - 16140.B

Pdf

Vimar - 16140.B - 1P 10AX 2-way switch white

16140.B
Wiring devices / Traditional wiring devices / IDEA / Devices

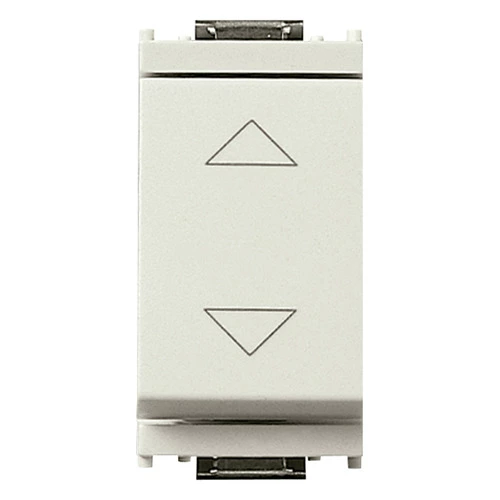

1P 10AX 2-way switch white
1P 10 AX 250 V~ 2-way switch (3 terminals) with directional arrows and central OFF position, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 16140.B

PNG DXF

rear view art. 16140.B

PNG DXF

3D view art. 16140.B

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Rocker

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9001

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
24,80 mm

Device height
50,10 mm

Device depth
43,60 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

8007352059887

1 NR

5.1x2.8x5.3 [cm]

33.4 [g]

8007352264090

10 NR

14.4x11.6x6 [cm]

379.6 [g]

8007352648081

120 NR

36.5x33x13.5 [cm]

4,968 [g]
