2P16AX 1-way switch+000-key in OFF white - 16165.S.CU.B

Pdf

16165.S.CU.B
Wiring devices / Traditional wiring devices / IDEA / Devices

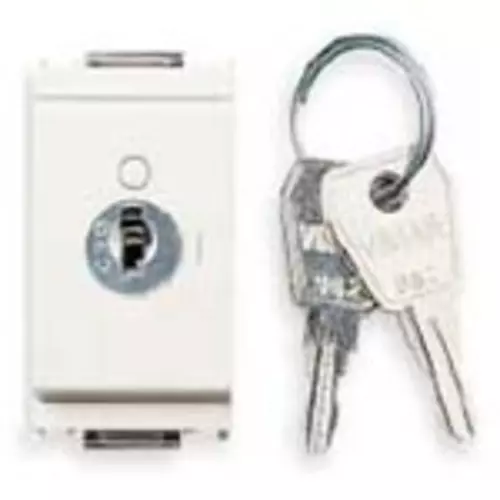

2P16AX 1-way switch+000-key in OFF white
2P 16 AX 250 V~ key-operated 1-way switch, with 000 unified key removable in OFF position only, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Key
Assembly arrangement
Other
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
24,80 mm
Device height
50,10 mm
Device depth
32,80 mm
Built-in depth
32,80 mm

00. CE Marking - EU

14. TSE - Turkey

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352142954
1 NR
5.1x2.8x5.3 [cm]
52.4 [g]
Barcode Qty 20 NR
8007352142961
20 NR
27x11.6x6 [cm]
1,112.8 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
