1P NO 16A push +000-key white - 16180.CU.B

Pdf
Vimar - 16180.CU.B - 1P NO 16A push +000-key white
Vimar - 16180.CU.B - 1P NO 16A push +000-key white

16180.CU.B
Wiring devices / Traditional wiring devices / IDEA / Devices

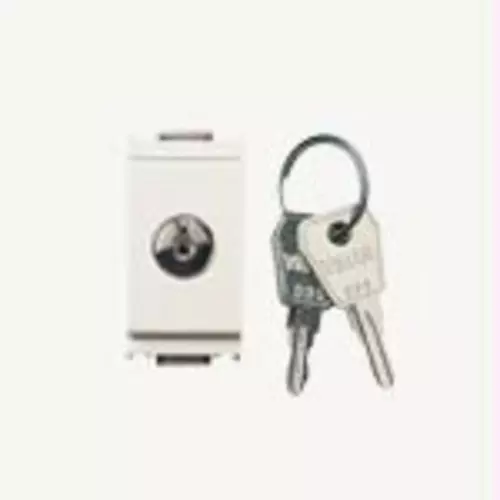

1P NO 16A push +000-key white
1P NO 16 A 250 V~ key-operated push button, with 000 unified key, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
24,80 mm
Device height
50,10 mm
Device depth
32,80 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352067684
1 NR
5.1x2.8x5.3 [cm]
47.33 [g]
Barcode Qty 20 NR
8007352067691
20 NR
27x11.6x6 [cm]
1,015.27 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
