2P+E 16A universal outlet red - 16210.R

Pdf
16210.R

Idea / Devices / Socket outlets for dedicated lines

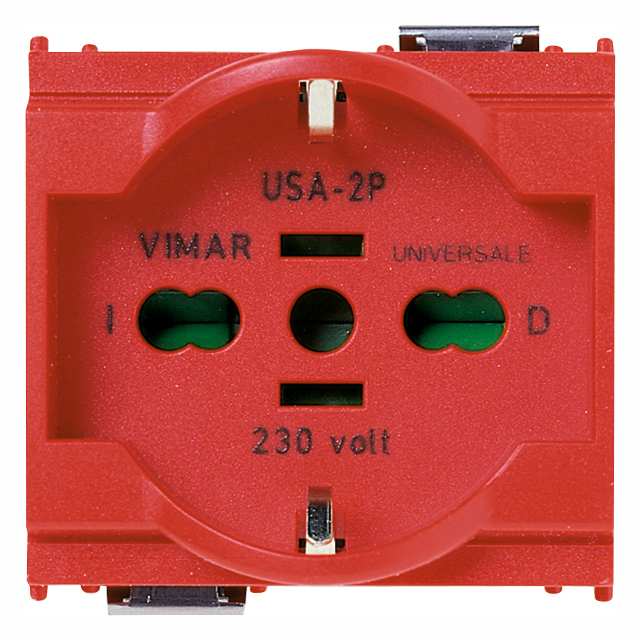

2P+E 16A universal outlet red
2P+E 16 A 250 V~ SICURY socket outlet, universal, for 2P 2,5 A Europlugs, 2P and 2P+E 10 A and 16 A Italian standard plugs, 2P+E 16 A German standard plugs, 2P 15 A 125 V~ American standard plugs with non-polarized flat blades, for dedicated lines, red - 2 modules. Earth connection is not realized with 2P+E 16 A 250 V~ French standard plug

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
With built-in USB power supply
No
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Red
RAL-number (similar)
3001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush mounted (plaster)
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other

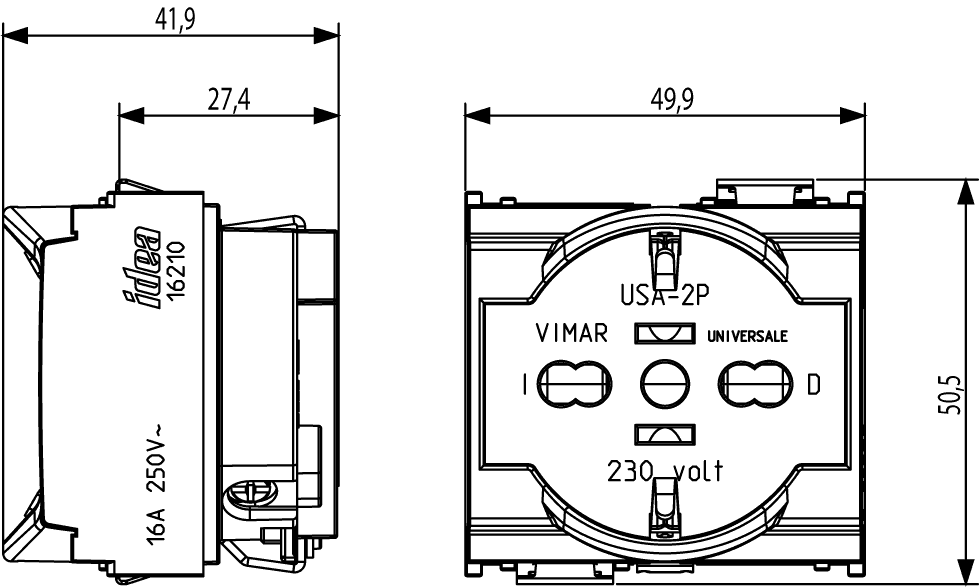

Width of device
49,80 mm
Height of device
50,10 mm
Depth of device
41,90 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352100732
1 NR
5.1x4.3x5.3 [cm]
56.93 [g]
Barcode Qty 20 NR
8007352100749
20 NR
26.9x11.6x9 [cm]
1,226.33 [g]
Barcode Qty 240 NR
8007352641549
240 NR
38x28.5x35.5 [cm]
15,780 [g]
