2P+E 16A P17/11outlet+C16 RCBO white - 16283.B

Pdf

16283.B
Wiring devices / Traditional wiring devices / IDEA / Devices

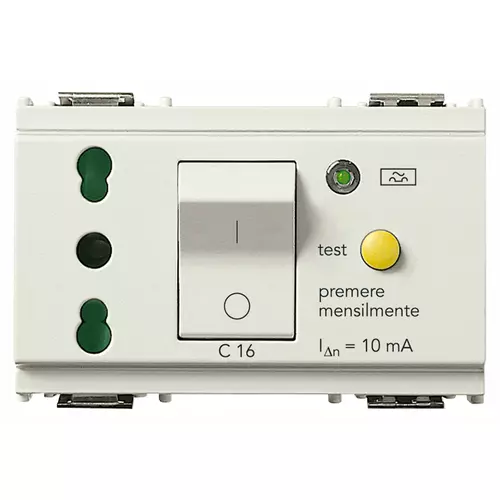

2P+E 16A P17/11outlet+C16 RCBO white
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11 interlocked with 1P+N C 16 residual current breaker with overcurrent protection, suppply voltage 230 V~ 50 Hz, IΔn 10 mA, breaking capacity 3000 A, white - 3 modules

Product Status
3 - Active

Sheets, Manuals, Documentation

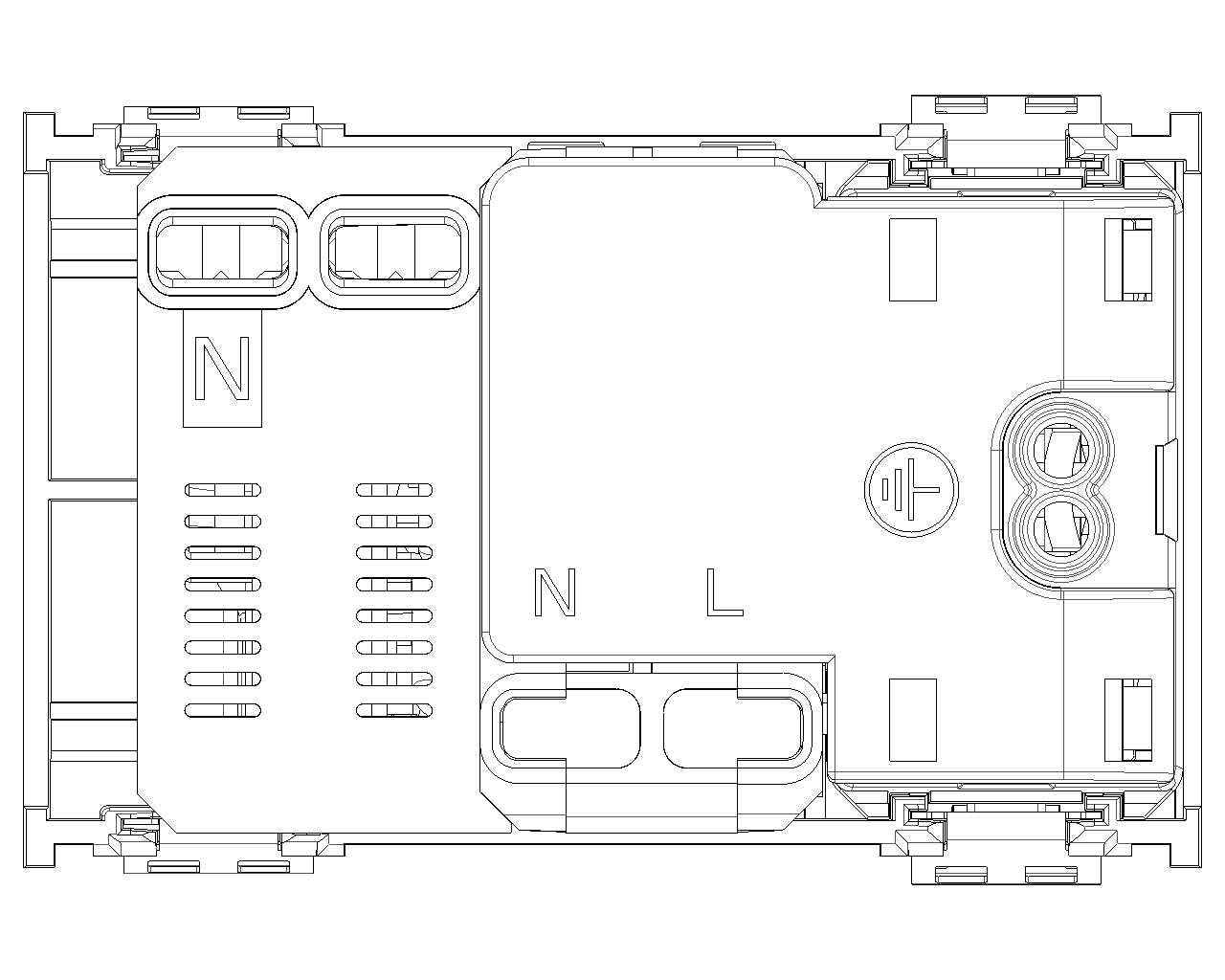

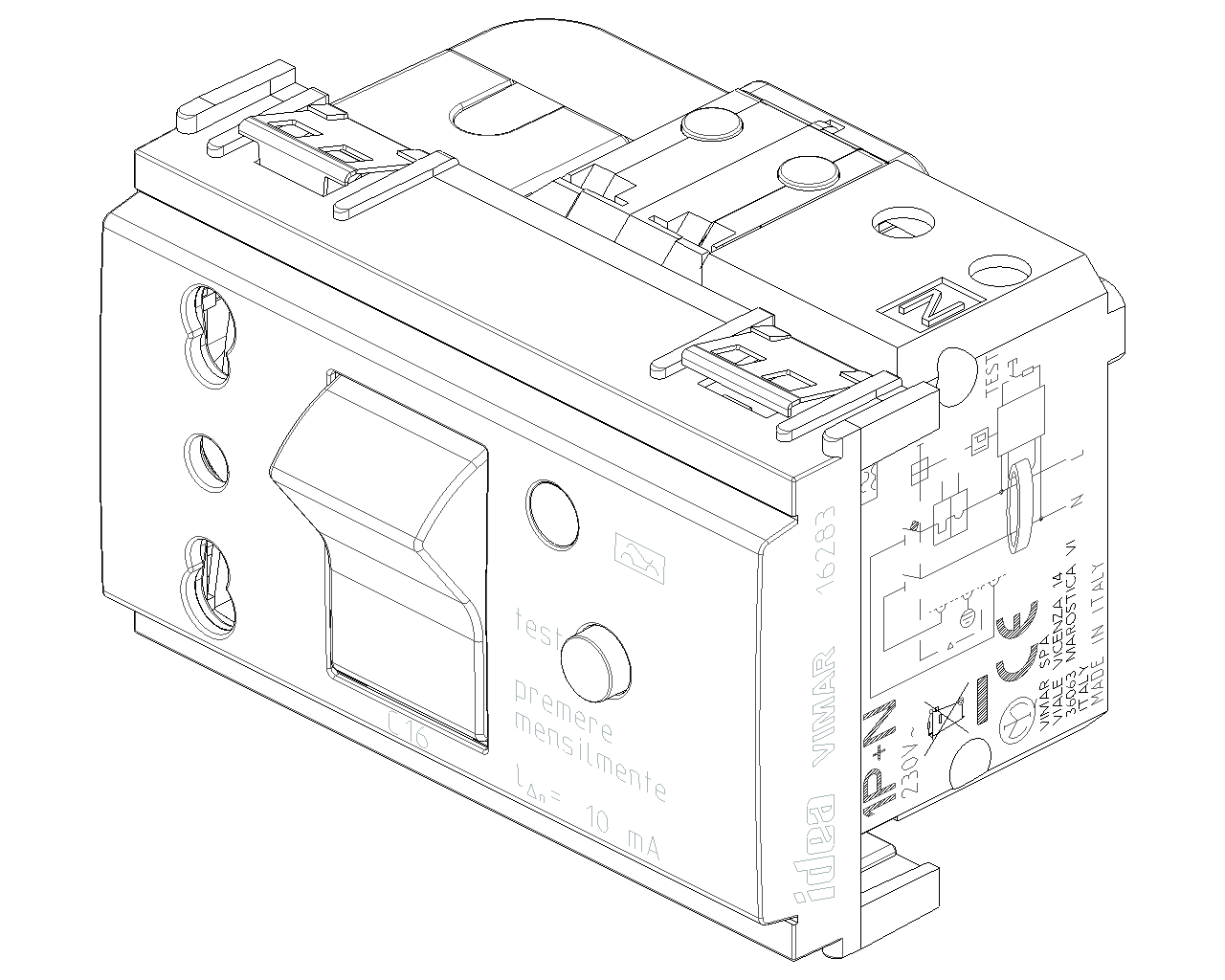

Drawings

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
Number of units
2
Number of modules (module system)
3
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
Yes
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50,00 - 50,01 HZ
Rated fault current
10 mA
Suitable for degree of protection (IP)
IP20
Impact strength
Other

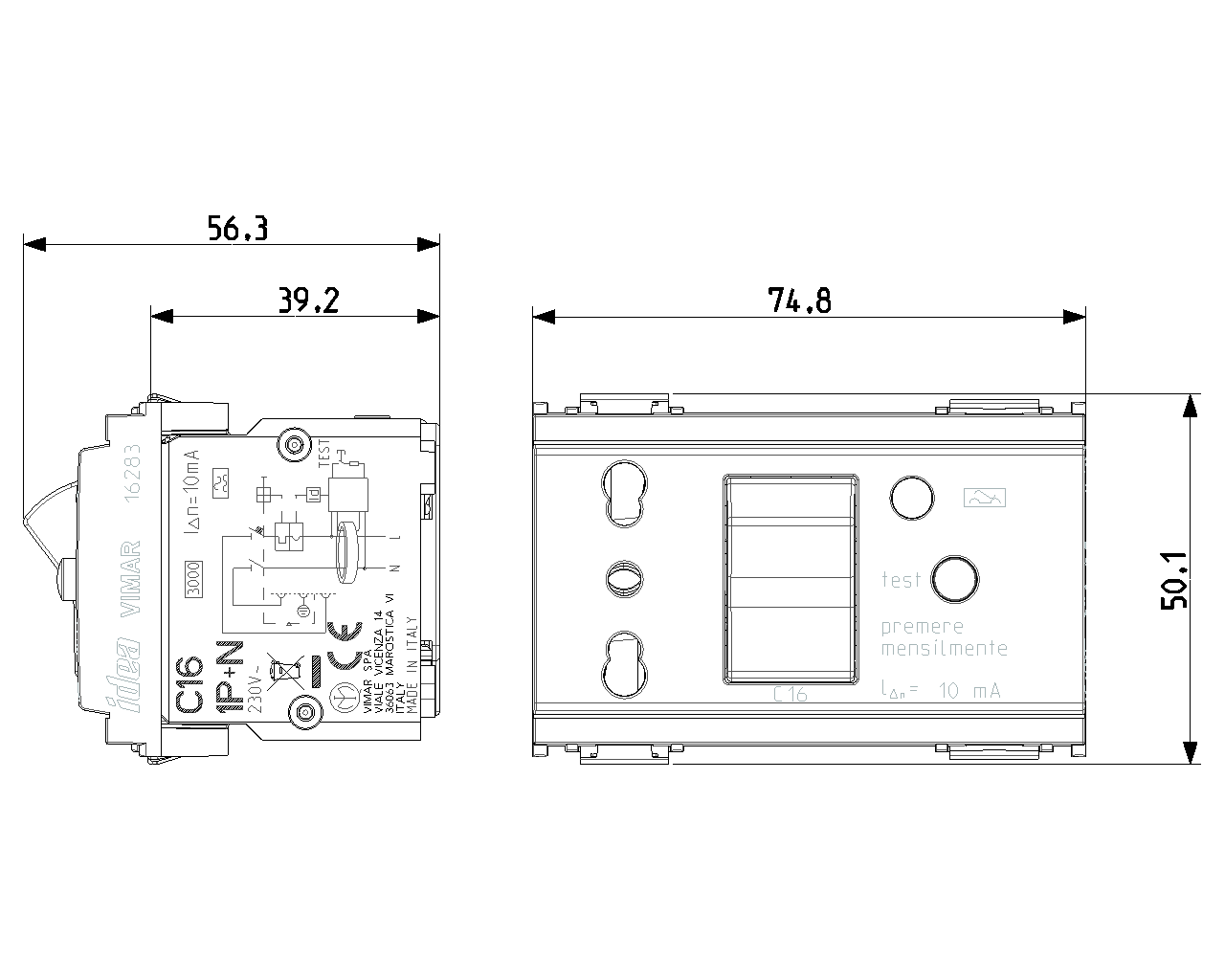

Device width
74,80 mm
Device height
50,10 mm
Device depth
57,40 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352113190
1 NR
5.2x5.7x7.6 [cm]
140.2 [g]
Barcode Qty 5 NR
8007352113206
5 NR
21.4x11.6x6 [cm]
761.87 [g]
