2P+E 16A P30 outlet+C16 RCBO white - 16286.B

Pdf
Vimar - 16286.B - 2P+E 16A P30 outlet+C16 RCBO white
Vimar - 16286.B - 2P+E 16A P30 outlet+C16 RCBO white

16286.B
Wiring devices / Traditional wiring devices / IDEA / Devices

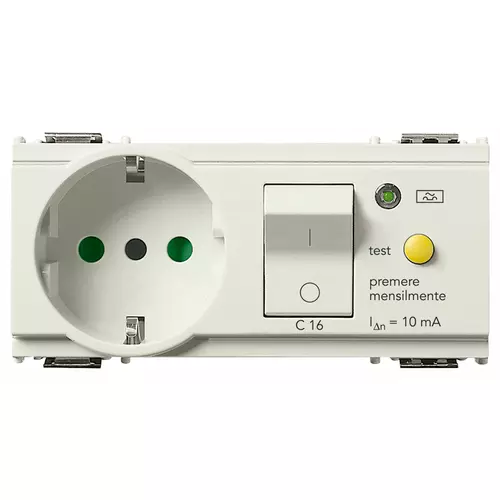

2P+E 16A P30 outlet+C16 RCBO white
2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts) interlocked with 1P+N C 16 residual current breaker with overcurrent protection, supply voltage 230 V~ 50 Hz, IΔn 10 mA, breaking capacity 3000 A, white - 4 modules

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16286.B
PNG DXF

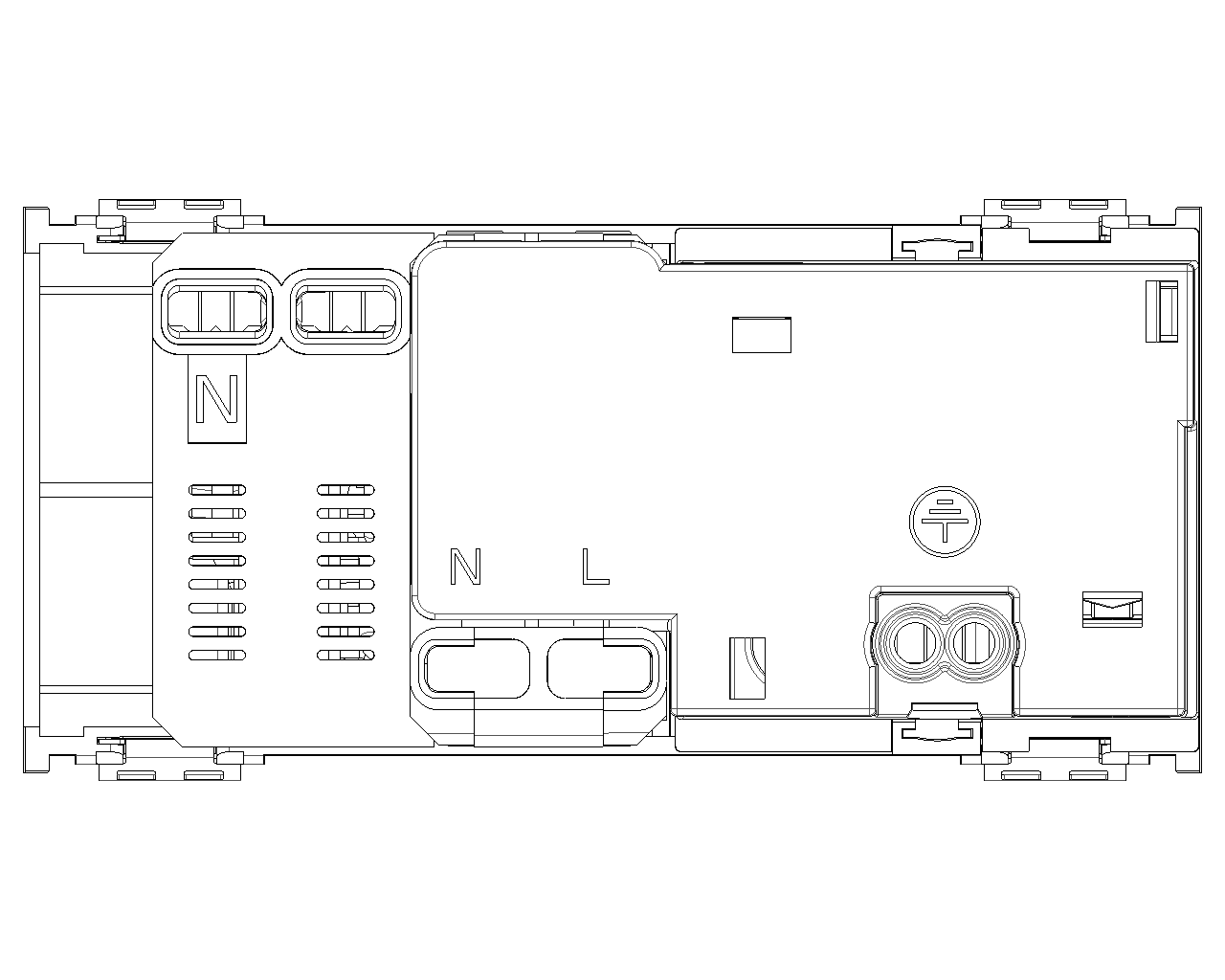

rear view art. 16286.B
PNG DXF

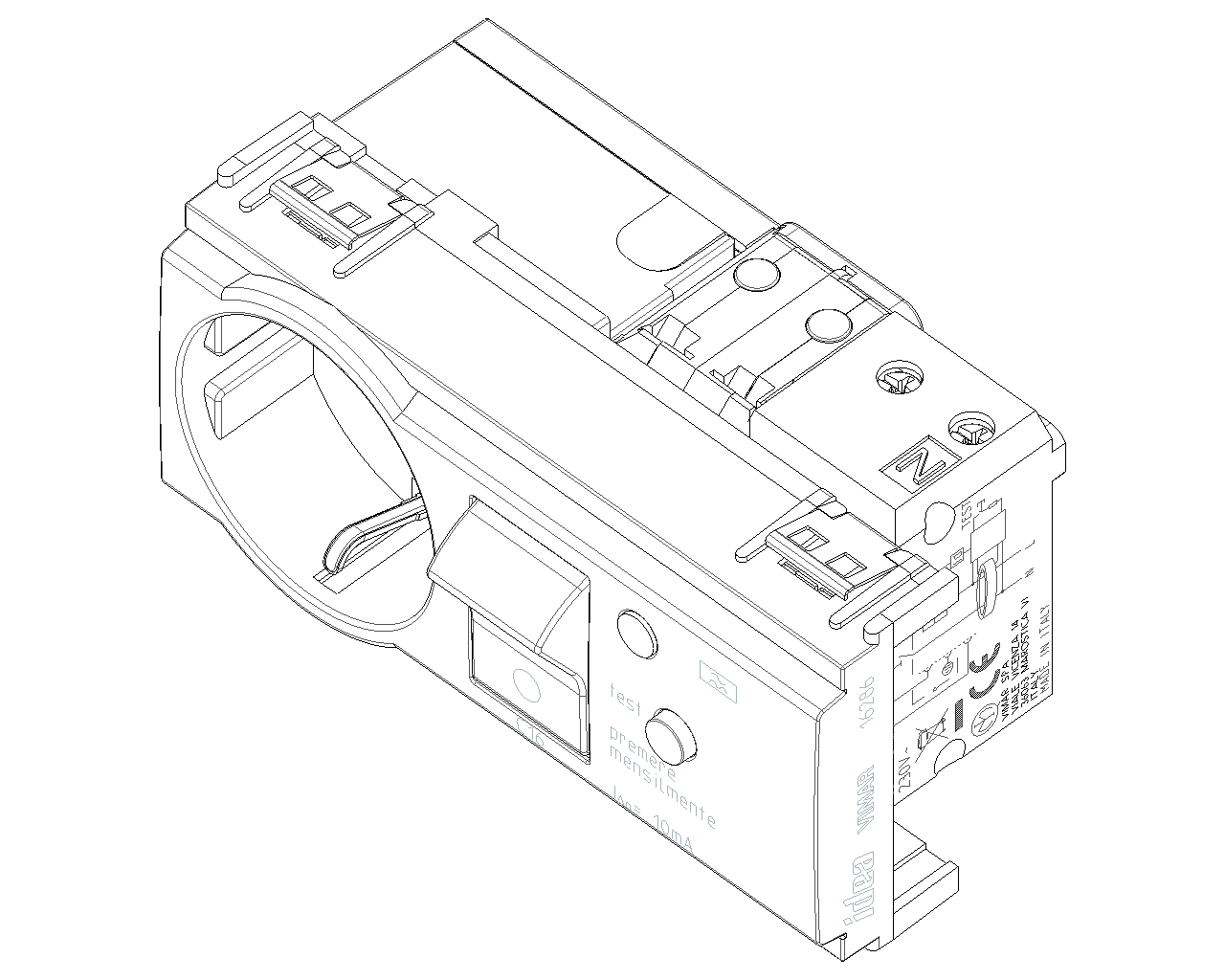

3D view art. 16286.B
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P30
Number of units
2
Number of modules (module system)
4
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
Yes
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50,00 - 50,01 HZ
Rated fault current
10 mA
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
74,80 mm
Device height
50,10 mm
Device depth
57,40 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352113220
1 NR
14.2x6.7x5.9 [cm]
186 [g]
