2P 6A 24V SELV outlet white - 16300.B

Pdf
16300.B

Idea / Devices / Socket outlets for signal reception

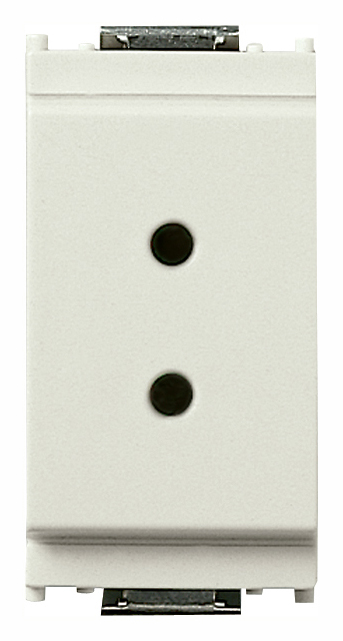

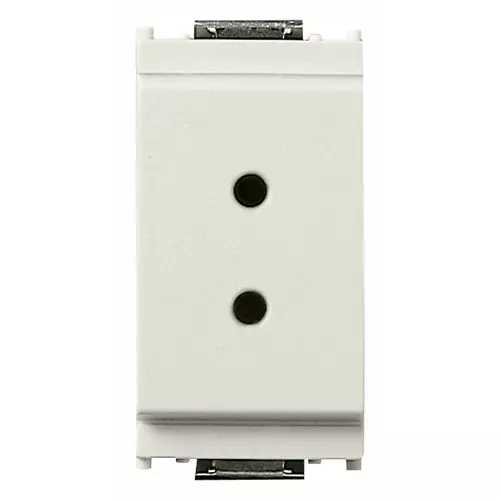

2P 6A 24V SELV outlet white
2P 6 A 24 V (SELV) socket outlet for plug 01620 (ø 3 mm pins, 12,4 mm distance between centres), white. For auxiliary circuits

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Insert/cover for communication technolog
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With imprint
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (akin)
9001
Transparent
No
Number of modules (module syst
1
With strain relief
No
Luster terminal
No
Suitable for degree of protect
IP20

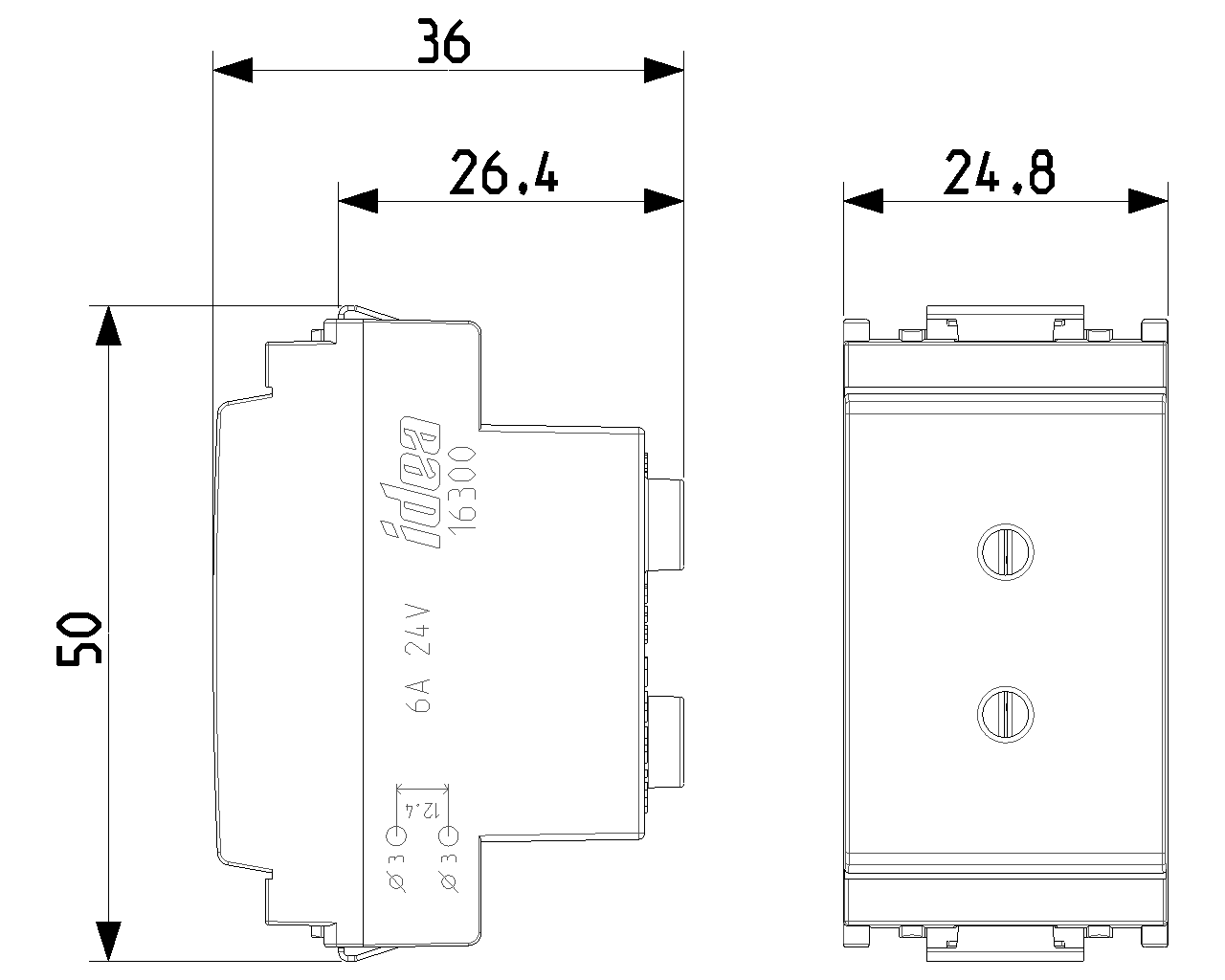

Width of device
24,80 mm
Height of device
50,10 mm
Depth of device
36,00 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352051492
1 NR
4.1x2.8x5.3 [cm]
25.87 [g]
Barcode Qty 20 NR
8007352051638
20 NR
21.4x11.6x6 [cm]
576.27 [g]
