TV-RD-SAT single-conn. outlet grey - 16306.01

16306.01
Wiring devices / Traditional wiring devices / IDEA / Devices

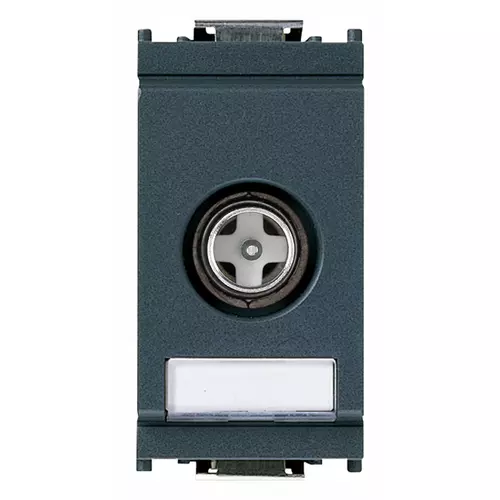

TV-RD-SAT single-conn. outlet grey
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, single connection, with male connector, connection attenuation 1 dB, grey. Allows the passage of d.c. current and control signals (24 V 500 mA max)

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

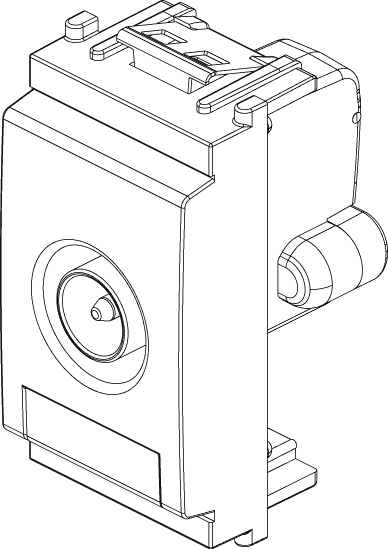

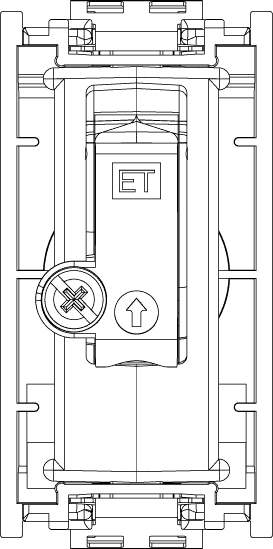

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
End socket

Cover
None

Tap loss at 860 MHz
0,10 dB

Tap loss at 2150 MHz
0,20 dB

Number of outlets
1

Suitable for remote power supply
Yes

Type of fastening
Snap mounting (engagement)

Colour
Grey

RAL-number (similar)
7015

Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

---

Barcode

8007352001053

1 NR

4.1x2.8x5.3 [cm]

42.8 [g]

8007352001060

20 NR

21.4x11.6x6 [cm]

917.2 [g]

8007352641365

200 NR

30.5x25.5x22.5 [cm]

9,500 [g]
