F type female socket connector white - 16331.B

Pdf
16331.B

Idea / Devices / TV socket outlets

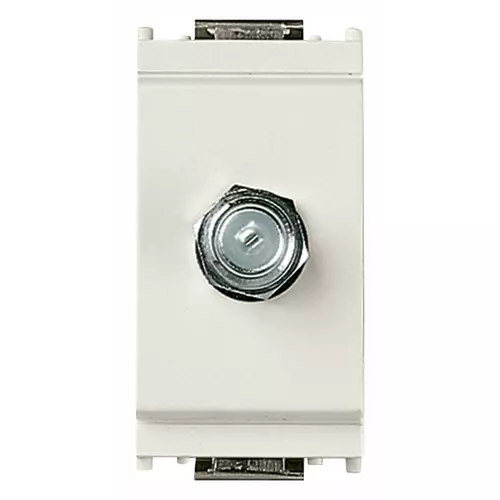

F type female socket connector white
Coaxial socket outlet with F type female connector, white. For frequencies up to 2400 MHz. In/out connection with F type male connector 01654.

Product Status
3 - Active

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
End socket
Cover
None
Number of outlets
1
Suitable for remote power supply
Yes
Frequency
0 - 2400 MHz
Type of fastening
Snap mounting (engagement)
Colour
White
RAL-number (similar)
9001
Material
Plastic
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352088962
1 NR
4.1x2.8x5.3 [cm]
16.2 [g]
Barcode Qty 10 NR
8007352088979
10 NR
14.4x9x6 [cm]
198.53 [g]
Barcode Qty 160 NR
8007352641983
160 NR
37.5x30x13.5 [cm]
3,544 [g]
