16333.B
Wiring devices / Traditional wiring devices / IDEA / Devices

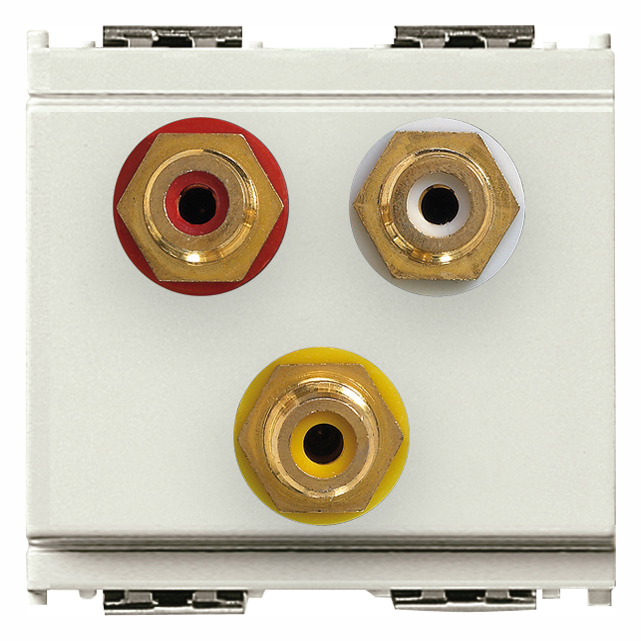

Socket with 3 RCA connectors white
Socket outlet with 3 RCA connectors, screw terminals, white
Product Status
2 - Will be discontinued

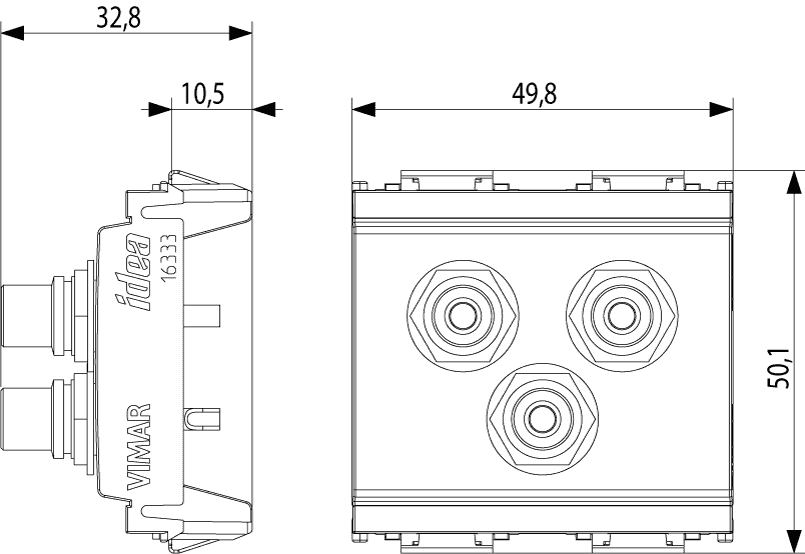

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Insert/cover for communication technology
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Utilization
RCA
RCA
Support ring
No
No
With dust cover
No
No
With hinged lid
No
No
With imprint
No
No
Mounting method
Flush-mounted
Flush-mounted
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
9001
9001
Transparent
No
No
Number of modules (module system)
1
1
With strain relief
No
No
Luster terminal
No
No
Suitable for degree of protection (IP)
IP20
IP20
Device width
49,80 mm
49,80 mm
Device height
50,10 mm
50,10 mm
Device depth
32,80 mm
32,80 mm
00. CE Marking - EU
Minimum order quantity: 1 NR
Barcode
8007352423763
1 NR
5.1x4.3x5.3 [cm]
37.44 [g]
8007352423770
20 NR
26.9x11.6x9 [cm]
847.1 [g]
8007352425156
240 NR
38x28.5x35.5 [cm]
10,685.2 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
