BUS RJ11phone jack white - 16339.B

Pdf
16339.B

Idea / Systems / Domotics - devices

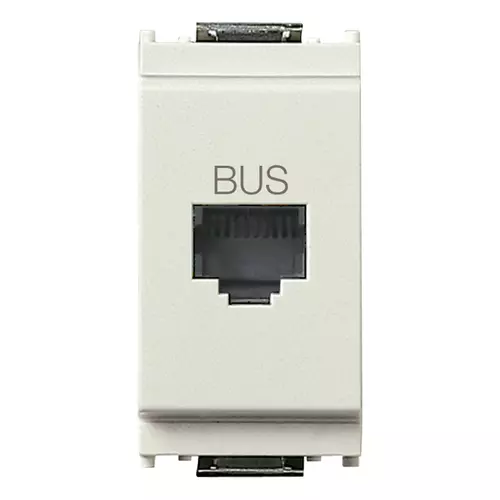

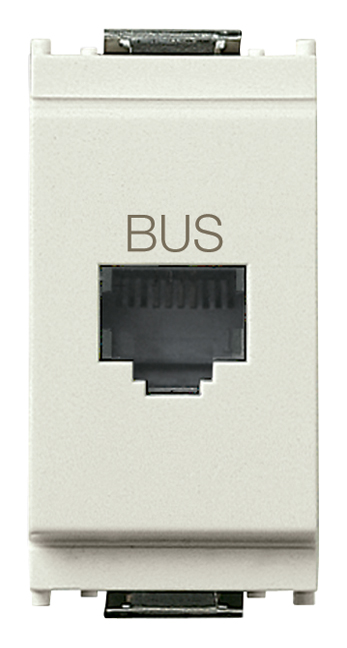

BUS RJ11phone jack white
RJ11 phone jack for Bus connection, screw terminals, white

Product Status
3 - Active

Class group
Data and telecommunication
Class
Data communication connection box copper (twisted pair)
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
No
Type of fastening
Engage (snap)
Type of connector
Other
With buses/couplings
Yes
Suitable for number of connectors
1
Category
Other
Colour
White
RAL-number
0
Connection type
Screw
Shielded buses
No
Shielded housing
No
Separate earthing connection
No
With label space
No
Design suitable
Yes
Separate strain relief
No
Mounting method shielding connection
None
With dust cover
No
Degree of protection (IP)
IP20
Mechanical coding
No
Colour coding
No

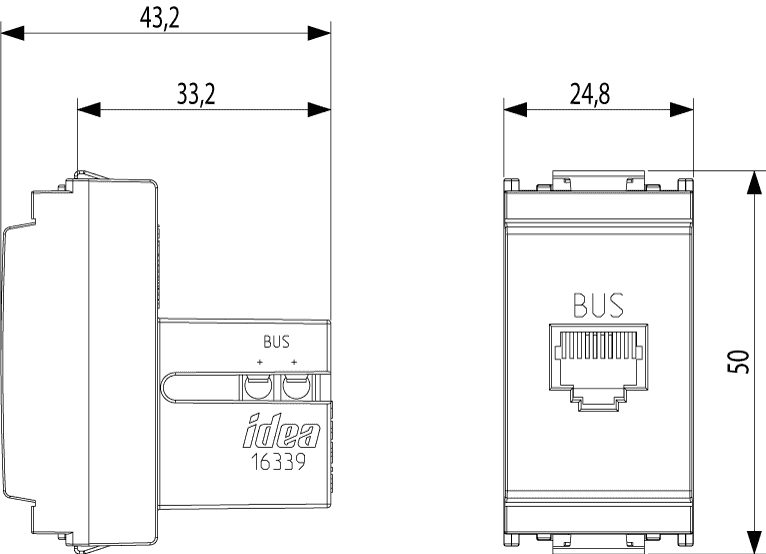

Height of device
45 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352307247
1 NR
5.1x2.8x5.3 [cm]
23.4 [g]
Barcode Qty 20 NR
8007352307254
20 NR
27x11.6x6 [cm]
536.53 [g]
