Polarized 2P 6A 24V SELV outlet white - 16345.B

Pdf
Vimar - 16345.B - Polarized 2P 6A 24V SELV outlet white
Vimar - 16345.B - Polarized 2P 6A 24V SELV outlet white

16345.B
Wiring devices / Traditional wiring devices / IDEA / Devices

Polarized 2P 6A 24V SELV outlet white

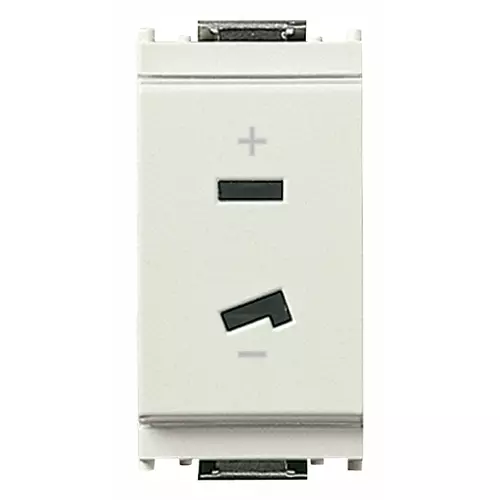

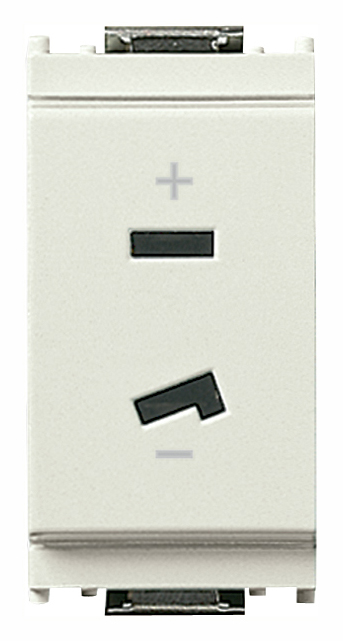

Polarized 2P 6 A 24 V (SELV) socket outlet for plug 01099, white

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Socket outlet
With hinged lid
No
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Nominal current
6 A
Nominal voltage
24 V

00. CE Marking - EU

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352024878
1 NR
4.1x2.8x5.3 [cm]
25.2 [g]
Barcode Qty 50 NR
8007352024885
50 NR
21.4x11.6x14.2 [cm]
1,344.27 [g]
Question: Which pin is the positive and which one is the negative?
Answer: The single flat pin is the ˝+˝ and the L-shaped one is the ˝-˝.
