BNC cable soldering socket conn. white - 16350.S.B

Pdf
Vimar - 16350.S.B - BNC cable soldering socket conn. white
Vimar - 16350.S.B - BNC cable soldering socket conn. white

16350.S.B
Wiring devices / Traditional wiring devices / IDEA / Devices

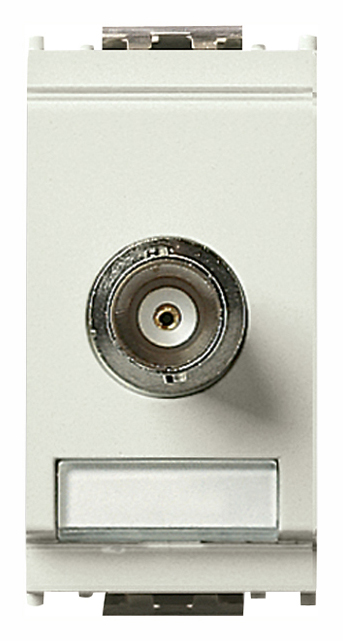

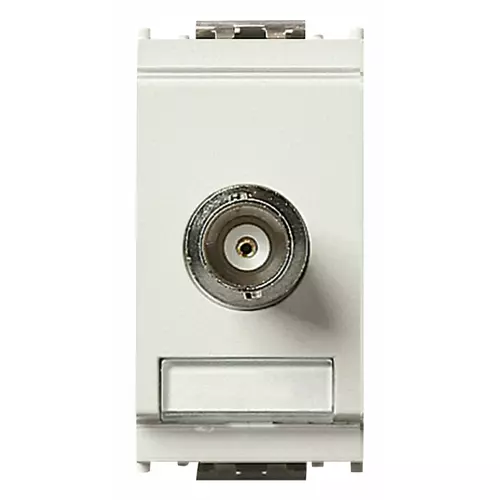

BNC cable soldering socket conn. white
Bayonet type coaxial socket connector, jack BNC, for RG58, RG59/62, RX93 cables soldering, white

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
BNC/TNC
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
30,50 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352029941
1 NR
5.1x2.8x5.3 [cm]
18.47 [g]
Barcode Qty 10 NR
8007352030145
10 NR
14.4x11.6x6 [cm]
221.87 [g]
