RJ45 Cat5e Netsafe UTP 110 outlet grey - 16359.4

16359.4
System infrastructure / Netsafe structured wiring / IDEA / Devices

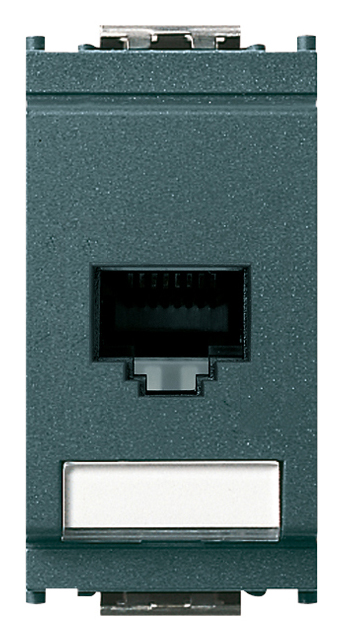

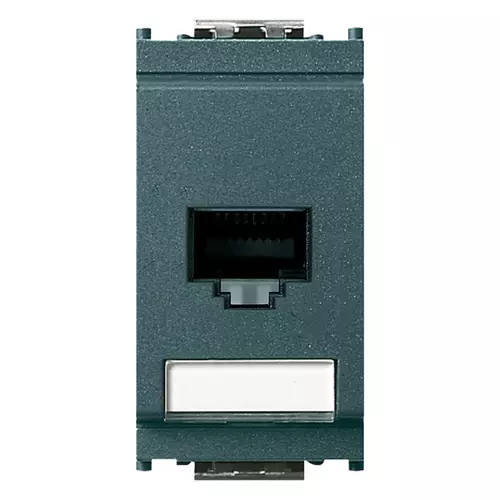

RJ45 Cat5e Netsafe UTP 110 outlet grey
RJ45 outlet with Netsafe connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 contacts, 110 type insulation-piercing terminals, grey

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (701 kb)

---

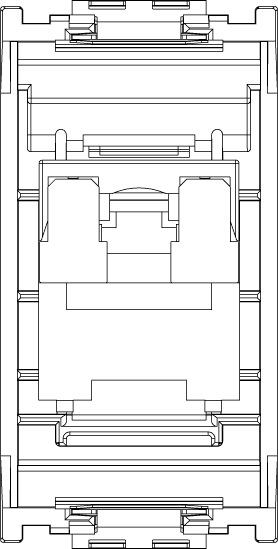

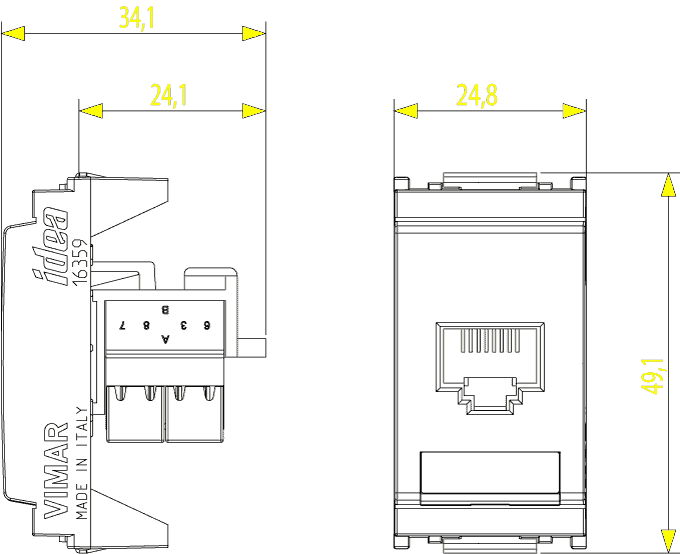

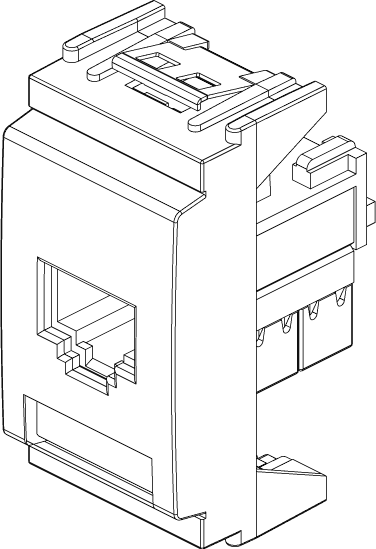

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation material for data and telecommunication networks

Class
Modular connector

Model
Bus (jack)

Type of connector
RJ45 8(8)

Screened
No

Category
5E

Connection type
110

Special tool necessary
Yes

Suitable for round cable
Yes

Suitable for flat cable
No

Suitable for litz wire conductor
No

Suitable for solid conductors
No

Colour
Other

AWG-range
22 - 26

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352256163

1 NR

6x2.8x5.3 [cm]

21.6 [g]

8007352256170

10 NR

14.4x13.1x6 [cm]

273.2 [g]

8007352657311

200 NR

50.5x20x28 [cm]

5,464 [g]
