9P SUB D socket connector white - 16361.B

Pdf
16361.B

Idea / Devices / EDP socket outlets

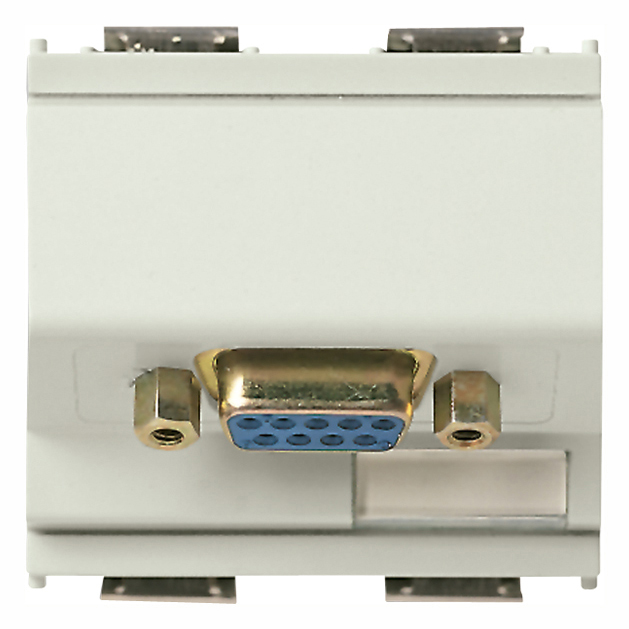

9P SUB D socket connector white
9 pin SUB-D socket connector, soldering, white - 2 modules

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
D-sub-miniature
Support ring
No
With dust cover
No
With imprint
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (akin)
9001
Transparent
No
Number of modules (module system)
2
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Width of device
49,80 mm
Height of device
50,10 mm
Depth of device
34,40 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352082304
1 NR
5.1x4.3x5.3 [cm]
27.47 [g]
Barcode Qty 10 NR
8007352083165
10 NR
26.9x11.6x4.9 [cm]
344 [g]
