16420.B
Wiring devices / Traditional wiring devices / IDEA / Devices

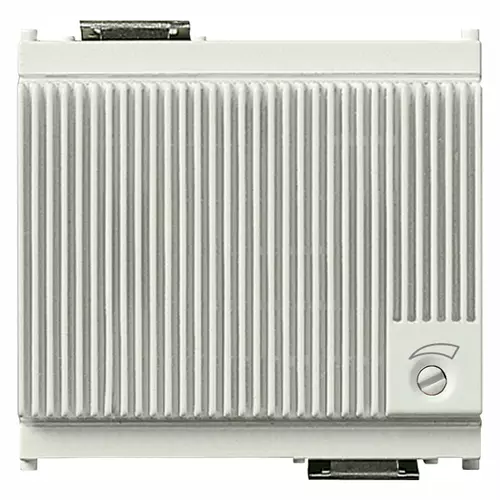

3-sound-sequence chime white
3-sound-sequence electronic chime (three-tone, two-tone, buzzer), adjustable volume, supply voltage 12 V~ 50-60 Hz and 12 V d.c. (SELV), white - 2 modules
Product Status
3 - Active
Sheets, Manuals, Documentation

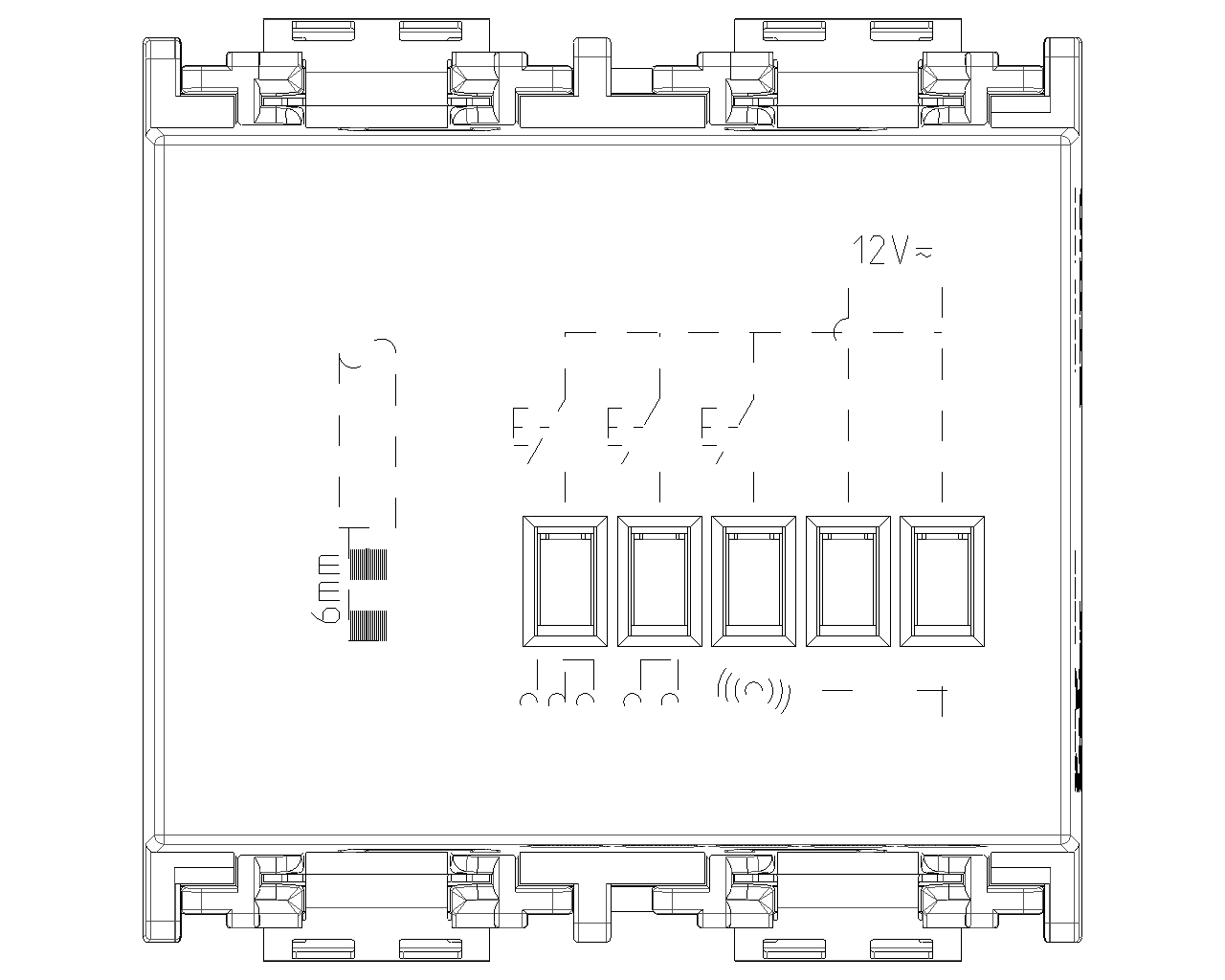

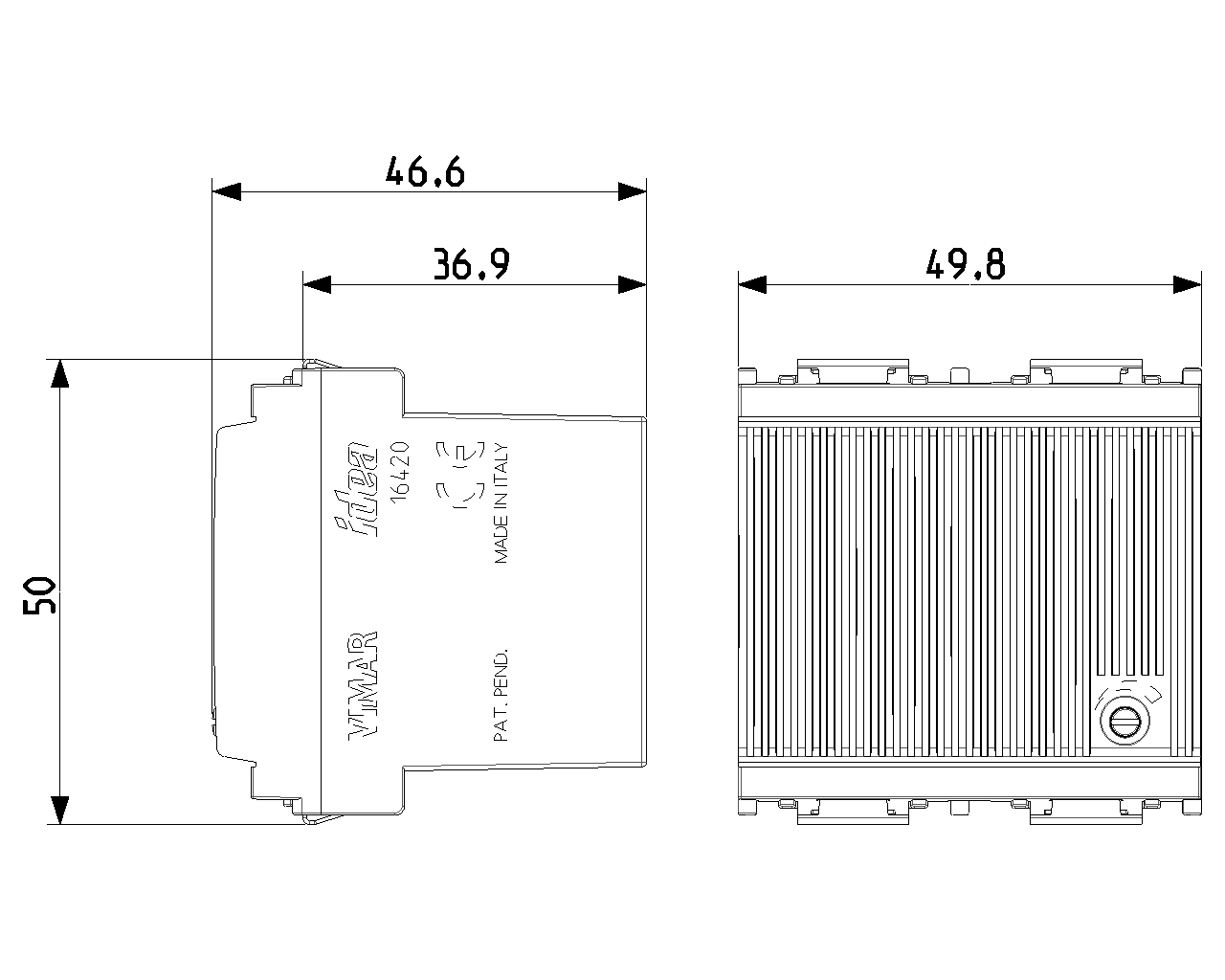

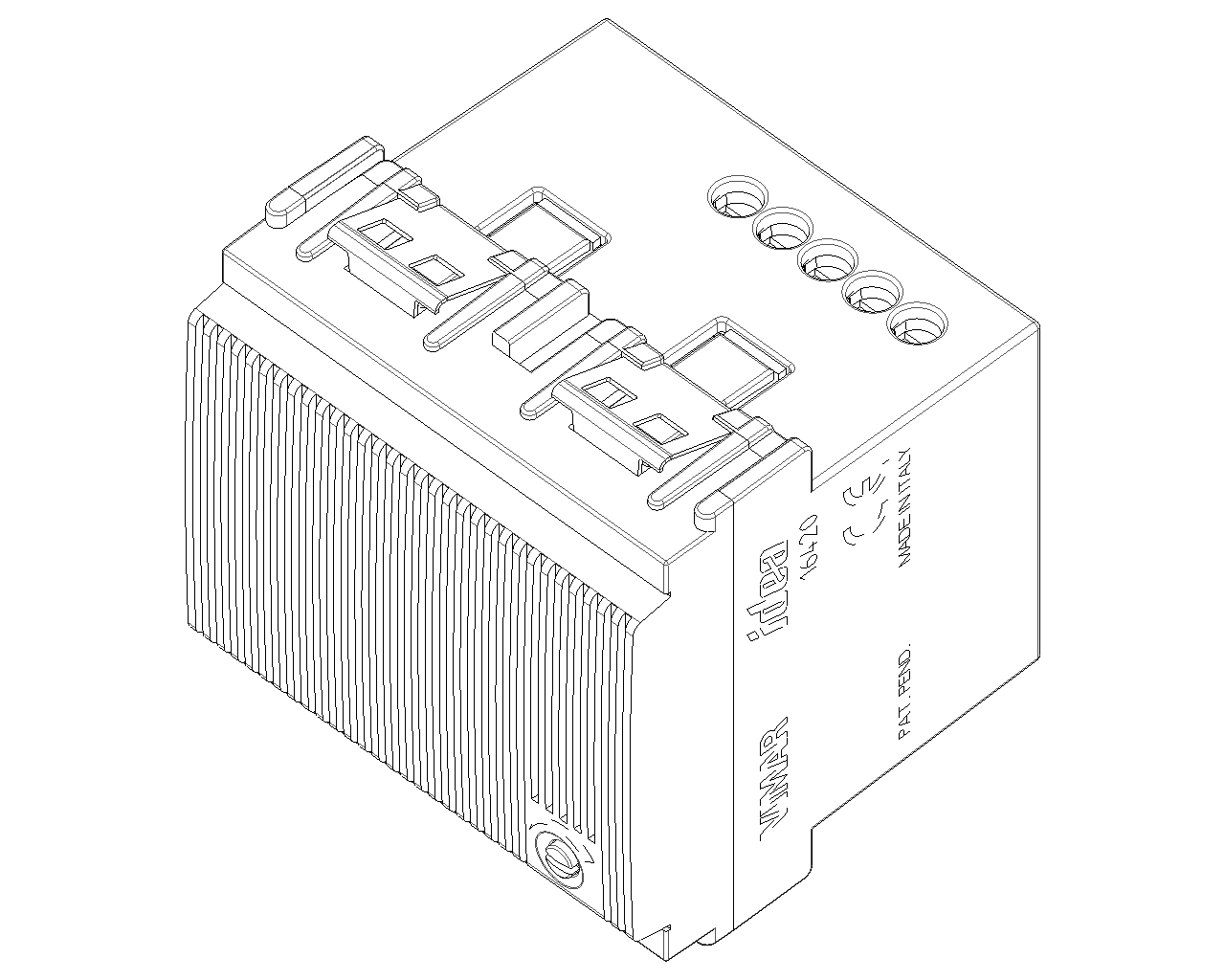

Drawings
Class group
Optical and acoustic signalling equipment
Optical and acoustic signalling equipment
Class
Bell gong
Bell gong
Housing colour
White
White
Housing material
Plastic
Plastic
Nominal voltage
12,00 - 12,01 V
12,00 - 12,01 V
Type of current
AC/DC
AC/DC
Built-in battery
No
No
Loudness
70 dB
70 dB
Wireless
No
No
Degree of protection (IP)
IP30
IP30
Mounting method
Flush-mounted
Flush-mounted
Width in number of modular spacings
2
2
Width
49,80 mm
49,80 mm
Height
50,00 mm
50,00 mm
Depth
46,60 mm
46,60 mm
Minimum order quantity: 5 NR
Barcode
8007352030510
1 NR
6x5.4x5.3 [cm]
86.47 [g]
8007352102552
5 NR
17.2x13.1x6 [cm]
498.2 [g]
