Red indicator unit grey - 16431.R

Pdf
Vimar - 16431.R - Red indicator unit grey
Vimar - 16431.R - Red indicator unit grey

16431.R
Wiring devices / Traditional wiring devices / IDEA / Devices

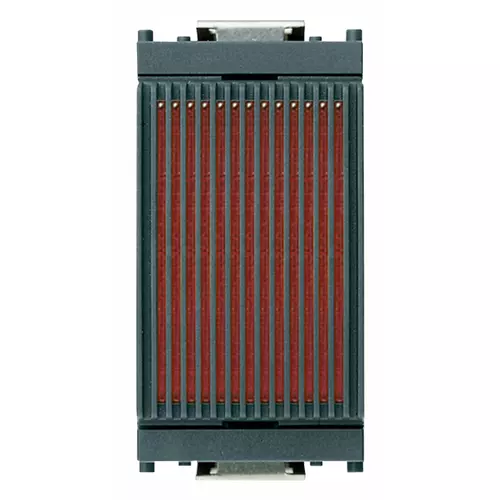

Red indicator unit grey
Indicator unit for ø 6.3x28 mm or ø 7x31 mm lamp, red diffuser, grey. Provided without lamp

Product Status
3 - Active

Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Lamp holder
Other
With light source
No
Lamp type
Other
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
3001
Transparent
No
Colour light source
Red
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352002609
1 NR
5.1x2.8x5.3 [cm]
31.4 [g]
Barcode Qty 20 NR
8007352000766
20 NR
27x11.6x6 [cm]
696.93 [g]
Barcode Qty 120 NR
8007352654396
120 NR
37.5x30x13.5 [cm]
4,536 [g]
