Red/green double indicator unit white - 16432.RV.B

Pdf
16432.RV.B

Idea / Devices / Optical signallings

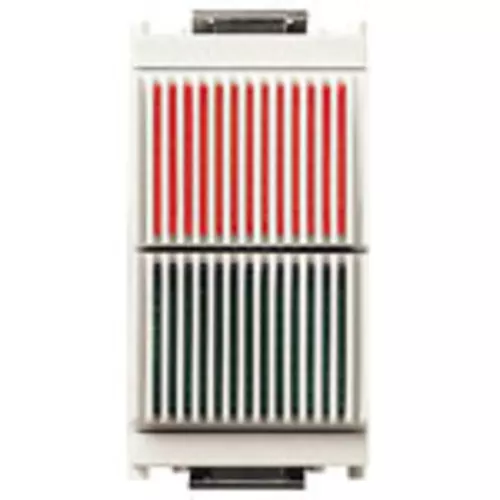

Red/green double indicator unit white
Double indicator unit for 2 signalling units, red and green diffusers, white. Provided without signalling unit

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Lamp holder
Other
With light source
No
Lamp type
LED exchangeable
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
1013
Transparent
No
Colour lamp
Green
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352030633
1 NR
4.1x2.8x5.3 [cm]
20.73 [g]
Barcode Qty 20 NR
8007352030640
20 NR
21.4x11.6x6 [cm]
472.33 [g]
