Vertical badge switch white - 16465.B

16465.B
Wiring devices / Traditional wiring devices / IDEA / Devices

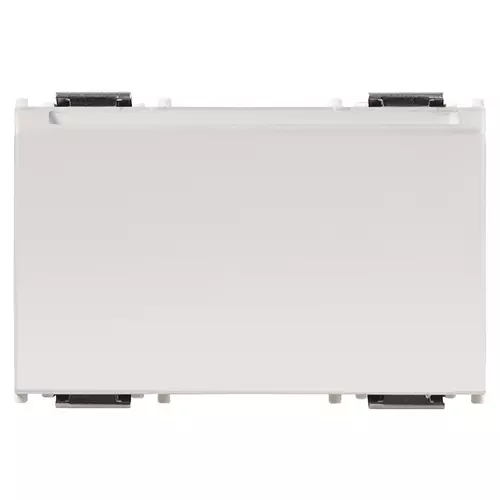

Vertical badge switch white
Electronic badge switch with vertical pocket, 16 A 250 V~ change-over relay output, supply voltage 230 V~ 50-60 Hz, 24 V~ 50-60 Hz and 24 Vd.c. (SELV), white - 3 modules. Provided without ISO card (badge)

Product Status
3 - Active

You may also be interested in

16452.S - ISO card

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (749 kb)
• Full Multilanguage instructions sheet (816 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Access control system

Standalone
Yes

Networkable
No

PC-binding
No

Type of interface
None

Type of reading technique
Data medium

Signalling
None

Mounting method
Flush-mounted

Operating voltage AC 50 Hz
250,00 - 250,01 V

Operating voltage AC 60 Hz
250,00 - 250,01 V

Operating temperature
5 - 45 °C

Degree of protection (IP)
IP20

Colour
White

Material
Plastic

Width
74,80 mm

Height
50,10 mm

Depth
49,20 mm

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352301993

1 NR

5.7x5.3x7.7 [cm]

167 [g]

8007352738416

5 NR

21.4x11.6x6 [cm]

891.8 [g]

8007352738423

50 NR

30.5x25.5x22.5 [cm]

9,258 [g]
