Connected 2-way switch grey - 16492

Pdf
16492

Idea / Devices / Radiofrequency

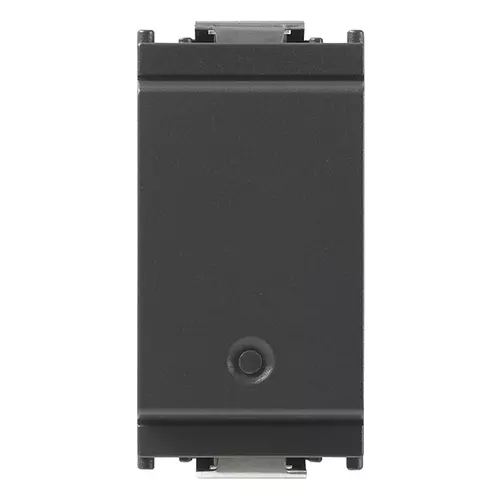

Connected 2-way switch grey
View Wireless electronic 2-way switch with 100-240 V 50/60 Hz relay output for 500 W incandescent lamps, 100W LED lamps, 250 VA electronic transformers, 120 W fluorescent lamps, local or remote control, double IoT technology on Bluetooth 5.0 standard for the creation of View Wireless mesh system and on Zigbee 3.0 standard, 1 input for external button for actuator control or to recall a scenario, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, grey

  • Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
  • Compatible with Alexa, Google Home and IFTTT, using the dedicated gateway or Zigbee hub

Product Status
3 - Active

Class group
Domestic switching devices
Class
Switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (akin)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Other
Type of lighting
LED not exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
24,80 mm
Height of device
50,10 mm
Depth of device
36,50 mm
Built-in depth
23,30 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352643024
1 NR
6x5.4x5.2 [cm]
57 [g]
Barcode Qty 60 NR
8007352649477
60 NR
37.5x30x13.5 [cm]
3,766 [g]
Question: How many devices can I install in a Wireless system?
Answer: The system allows the configuration of a maximum of 64 devices for each gateway code 14597-16497-19597-20597
Question: Which App is dedicated to system configuration?
Answer: The system can be configured using the View Wireless App.
Question: How do you reset the devices?
Answer: Resetting is done by pressing the configuration push button for a prolonged amount of time, which must be done within 5 min of commissioning (powering) the product.
Question: With which physical devices can I activate a scenario control in the connected system?
Answer: Mechanical push buttons connected to connected devices which envisage the function or using the radio control 03925.
Question: How many Energy meters art.02963 can I install in a Wireless system?
Answer: Each connected system allows a maximum of 2 meters art.02963.
Question: If I use the ZIgBee 3.0 operating mode, with which App do I configure Vimar devices?
Answer: You need to use the VIEW Wireless App to convert the operating mode (Bluetooth by default) into the ZigBee mode of those products that envisage it. Whereas for configuration, use the specific App of the ZigBee gateway system being used (for instance, the Amazon App)
Question: In a room with several controls (1-way switches/push buttons) operating the same light device, can I replace just one of them?
Answer: Yes, replacing a single control with art. 14592-16492-19592-20592 is enough. The device instructions include the wiring diagrams for the system with multi-way/two-way switches or push buttons(i.e. controls of a light from more than one point).
Question: Can the connected 2-way switch art.14592-19492-19592-20592 be used as a 1-way switch for a controlled socket outlet
Answer: No, as a minimum load of 2W is necessary for correct operation. To manage a controlled socket outlet, you can use art. 14593-16493-19593-20593 or art. 03981
Question: Using the Alexa assistant, fitted with Zigbee hub, can I control the Vimar connected 1-way switch via the Amazon App or do I also need the gateway art. 14597-19597-20597-16497?
Answer: If you want to use the IoT connected simple actuator or roller shutters with Alexa (fitted with built-in ZigBee Hub), you do not need the Vimar gateway as the configuration and management of our products will be governed directly by Alexa’s ZigBee hub via the dedicated Amazon App;
