16492.B
Wiring devices / View Wireless wiring devices / IDEA / Devices

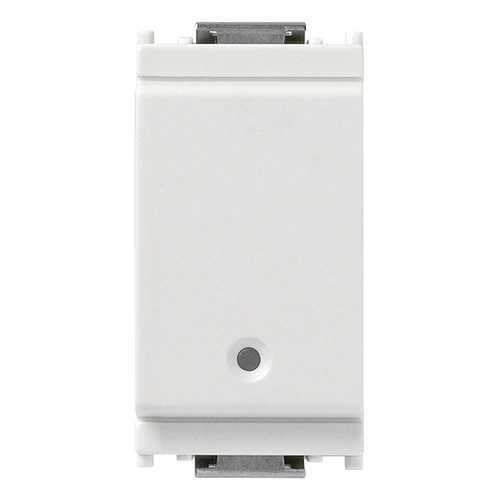

Connected 2-way switch white
View Wireless electronic 2-way switch with 100-240 V 50/60 Hz relay output for 500 W incandescent lamps, 100W LED lamps, 250 VA electronic transformers, 120 W fluorescent lamps, local or remote control, double IoT technology on Bluetooth 5.0 standard for the creation of View Wireless mesh system and on Zigbee 3.0 standard, 1 input for external button for actuator control or to recall a scenario, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, white
- Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
- Compatible with Alexa, Google Home and IFTTT, using the dedicated gateway or Zigbee hub
Product Status
3 - Active
Sheets, Manuals, Documentation
- Light multilanguage instructions sheet (1220 kb)
- Foglio istruzioni Full (776 kb)
- Feuille d’instructions Full (777 kb)
- Hoja de instrucciones Full (775 kb)
- Full instructions sheet (772 kb)
- Φυλλάδιο οδηγιών Full (919 kb)
- Anweisungsblatt Full (777 kb)
- Anweisungsblatt Full (844 kb)
- Manuale app View Wireless (19181 kb)
- Manual View Wireless app (40958 kb)
- Manual app View Wireless (40735 kb)
- Manuel appli View Wireless (40963 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (41171 kb)
- Installationsanleitung View Wireless (40768 kb)
Drawings
Installation bus systems
Switch actuator for bus system
No
No
Yes
No
No
Zigbee
Yes
Built-in installation
0
Yes
Yes
19. NOM - Mexico
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
47. Works with SmartThings
Barcode
| Question: | How can I reset the connected 1-way switch and then associate it with my system via the Bluetooth mesh? |
|---|---|
| Answer: | To reset the device, turn off the power supply to the device and turn it back on, then press the front control for approximately 30 seconds, until the front LED, which is flashing blue, changes colour and flashes white; at this point, release the control and wait for the LED to turn off. |
| Question: | How many devices can I install in a Wireless system? |
| Answer: | The system allows the configuration of a maximum of 64 devices for each gateway code 14597-16497-19597-20597 |
| Question: | Which App is dedicated to system configuration? |
| Answer: | The system can be configured using the View Wireless App. |
| Question: | How do you reset the devices? |
| Answer: | Resetting is done by pressing the configuration push button for a prolonged amount of time, which must be done within 5 min of commissioning (powering) the product. |
| Question: | With which physical devices can I activate a scenario control in the connected system? |
| Answer: | Mechanical push buttons connected to connected devices which envisage the function or using the radio control 03925. |
| Question: | How many Energy meters art.02963 can I install in a Wireless system? |
| Answer: | Each connected system allows a maximum of 2 meters art.02963. |
| Question: | If I use the ZIgBee 3.0 operating mode, with which App do I configure Vimar devices? |
| Answer: | You need to use the VIEW Wireless App to convert the operating mode (Bluetooth by default) into the ZigBee mode of those products that envisage it. Whereas for configuration, use the specific App of the ZigBee gateway system being used (for instance, the Amazon App) |
| Question: | In a room with several controls (1-way switches/push buttons) operating the same light device, can I replace just one of them? |
| Answer: | Yes, replacing a single control with art. 14592-16492-19592-20592 is enough. The device instructions include the wiring diagrams for the system with multi-way/two-way switches or push buttons(i.e. controls of a light from more than one point). |
| Question: | Can the connected 2-way switch art.14592-19492-19592-20592 be used as a 1-way switch for a controlled socket outlet |
| Answer: | No, as a minimum load of 2W is necessary for correct operation. To manage a controlled socket outlet, you can use art. 14593-16493-19593-20593 or art. 03981 |
| Question: | Using the Alexa assistant, fitted with Zigbee hub, can I control the Vimar connected 1-way switch via the Amazon App or do I also need the gateway art. 14597-19597-20597-16497? |
| Answer: | If you want to use the IoT connected simple actuator or roller shutters with Alexa (fitted with built-in ZigBee Hub), you do not need the Vimar gateway as the configuration and management of our products will be governed directly by Alexa’s ZigBee hub via the dedicated Amazon App; |
