1P+N C6 RCBO 120-230V 10mA grey - 16511.06

16511.06
Wiring devices / Traditional wiring devices / IDEA / Devices

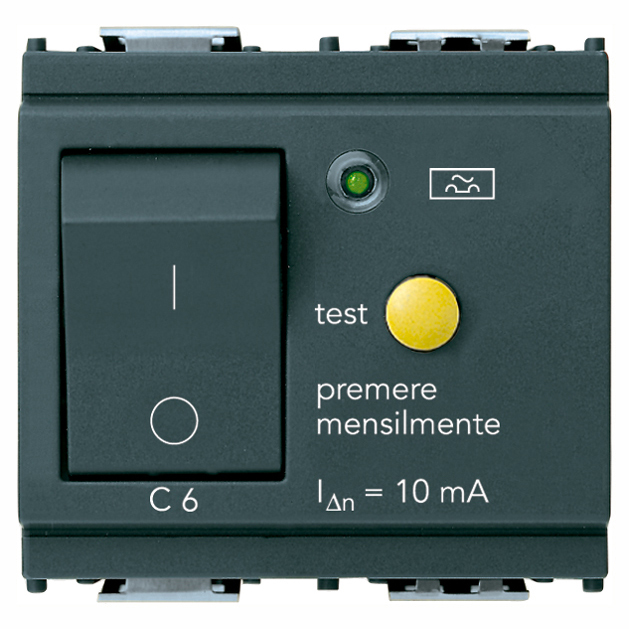

1P+N C6 RCBO 120-230V 10mA grey
1P+N C 6 residual current breaker with overcurrent protection, supply voltage 120-230 V~ 50-60 Hz, IΔn 10 mA, breaking capacity 1500 A, grey - 2 modules

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Questions and answers

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (688 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Circuit breakers and fuses

Class
Earth leakage circuit breaker

Number of poles (total)
2

Number of protected poles
1

Rated voltage
230 V

Rated current
6 A

Rated fault current
6 A

Leakage current type
A

Current limiting class
1

Rated short-circuit breaking capacity Icn according to EN 61009-1
1.500,00 kA

Surge current capacity
1,50 kA

Voltage type
AC

Frequency
50/60 Hz

Release characteristic
C

Concurrently switching neutral conductor
Yes

Over voltage category
3

Built-in depth
39,10 mm

Flush-mounted installation
Yes

Anti-nuisance tripping version
No

Degree of protection (IP)
IP40

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

---

Barcode

8007352107496

1 NR

6x5.4x5.3 [cm]

100.8 [g]

8007352107502

5 NR

17.2x13.1x6 [cm]

564.27 [g]

Question:

Why is it specified that the differential circuit breaker should not be used as a control 1-way switch?

Answer:

The product cannot be used as a control 1-way switch as it is designed to be installed upstream of a socket outlet or of a device for the sole purpose of permitting protection against overloads and the short-circuiting of the device itself and for the protection of the user against contact voltages; it is therefore an intended use that is completely different from that of a classic control 1-way switch, where the power supply interruptions towards the load occur according to the user’s desire.

---
