1P+N C6 RCBO 120-230V 10mA white - 16511.06.B

Pdf

16511.06.B
Wiring devices / Traditional wiring devices / IDEA / Devices

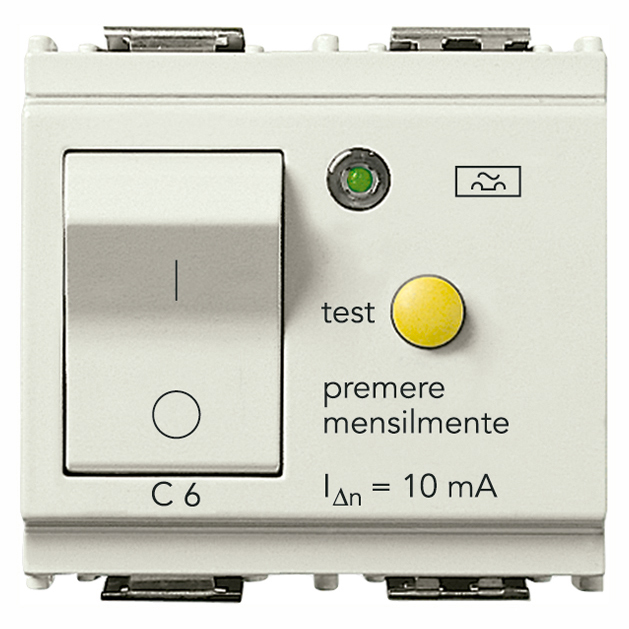

1P+N C6 RCBO 120-230V 10mA white
1P+N C 6 residual current breaker with overcurrent protection, supply voltage 120-230 V~ 50-60 Hz, IΔn 10 mA, breaking capacity 1500 A, white - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

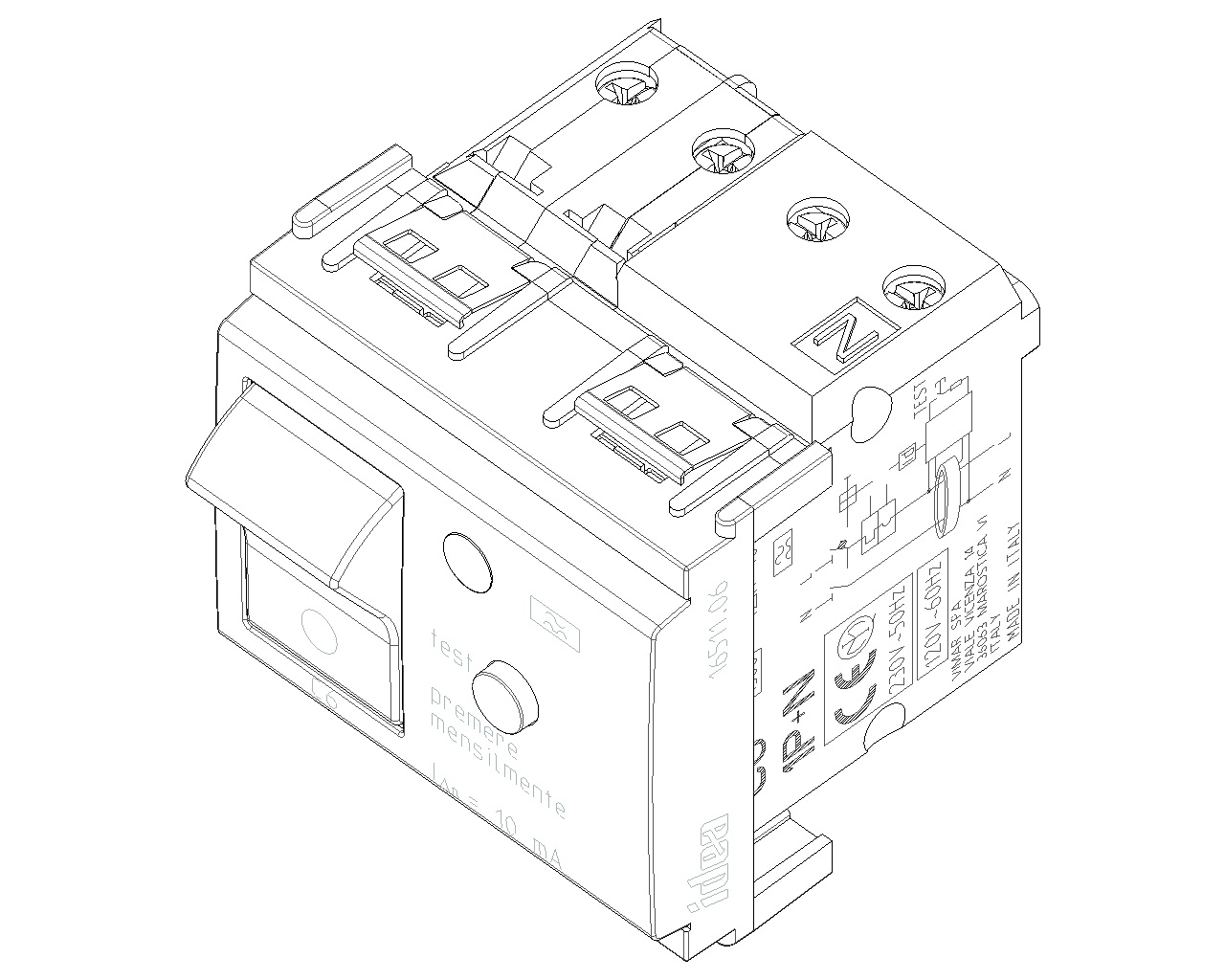

Drawings

Class group
Circuit breakers and fuses
Class
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated current
6 A
Rated fault current
6 A
Leakage current type
A
Current limiting class
1
Rated short-circuit breaking capacity Icn according to EN 61009-1
1.500,00 kA
Surge current capacity
1,50 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Built-in depth
39,10 mm
Flush-mounted installation
Yes
Anti-nuisance tripping version
No
Degree of protection (IP)
IP40
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352107519
1 NR
6x5.4x5.3 [cm]
100 [g]
Barcode Qty 5 NR
8007352107526
5 NR
17.2x13.1x6 [cm]
564.8 [g]
Question: Why is it specified that the differential circuit breaker should not be used as a control 1-way switch?
Answer: The product cannot be used as a control 1-way switch as it is designed to be installed upstream of a socket outlet or of a device for the sole purpose of permitting protection against overloads and the short-circuiting of the device itself and for the protection of the user against contact voltages; it is therefore an intended use that is completely different from that of a classic control 1-way switch, where the power supply interruptions towards the load occur according to the user’s desire.
