MASTER dimmer 120V grey - 16559.1.120

Pdf
Vimar - 16559.1.120 - MASTER dimmer 120V grey
Vimar - 16559.1.120 - MASTER dimmer 120V grey

16559.1.120
Wiring devices / Traditional wiring devices / IDEA / Devices

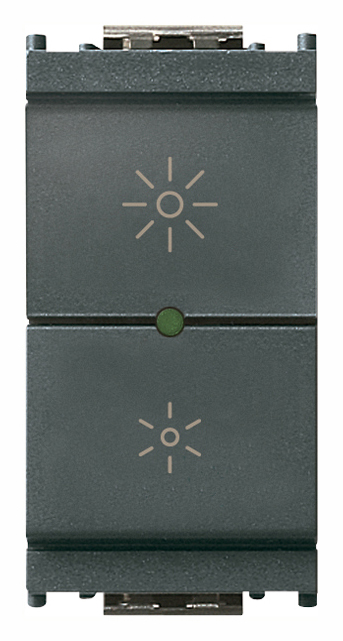

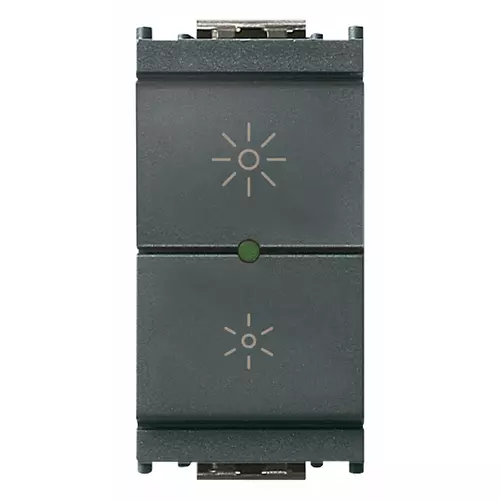

MASTER dimmer 120V grey
Universal dimmer 120 V~ 60 Hz for 40-400 W incandescent lamps, 40-300 VA electronic transformers, 10-200 W CFL lamps, 3-200 W LED lamps, for LED electronic power supply units, ON/OFF control and regulation by built-in push button or via NO peripheral push buttons, minimum brightness control, visible in darkness, grey. Device not suitable for installation in Isoset enclosures

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

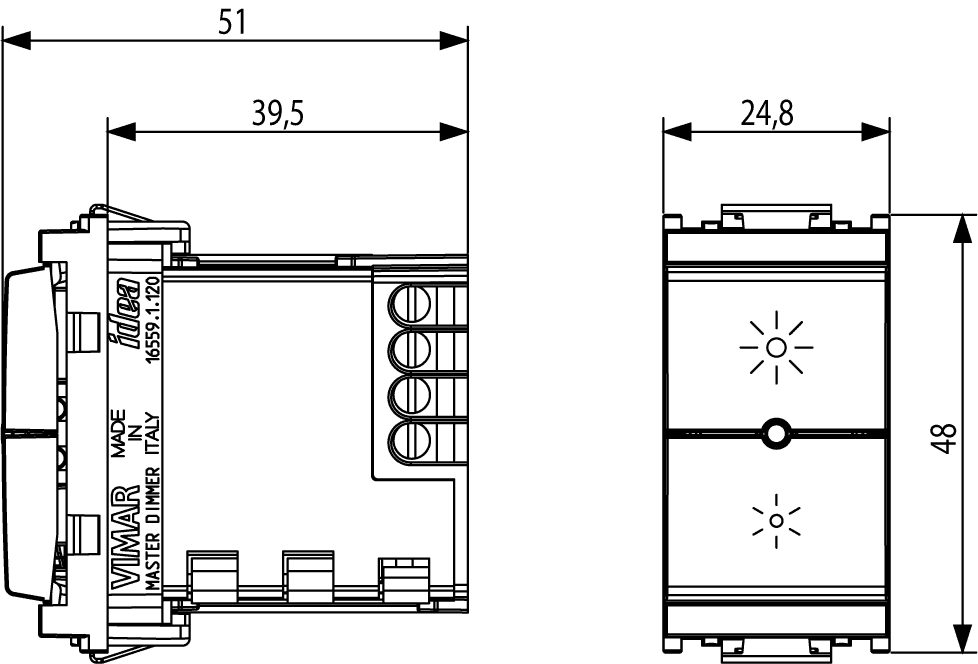

view encumbered art. 16559.1.120
PNG DXF

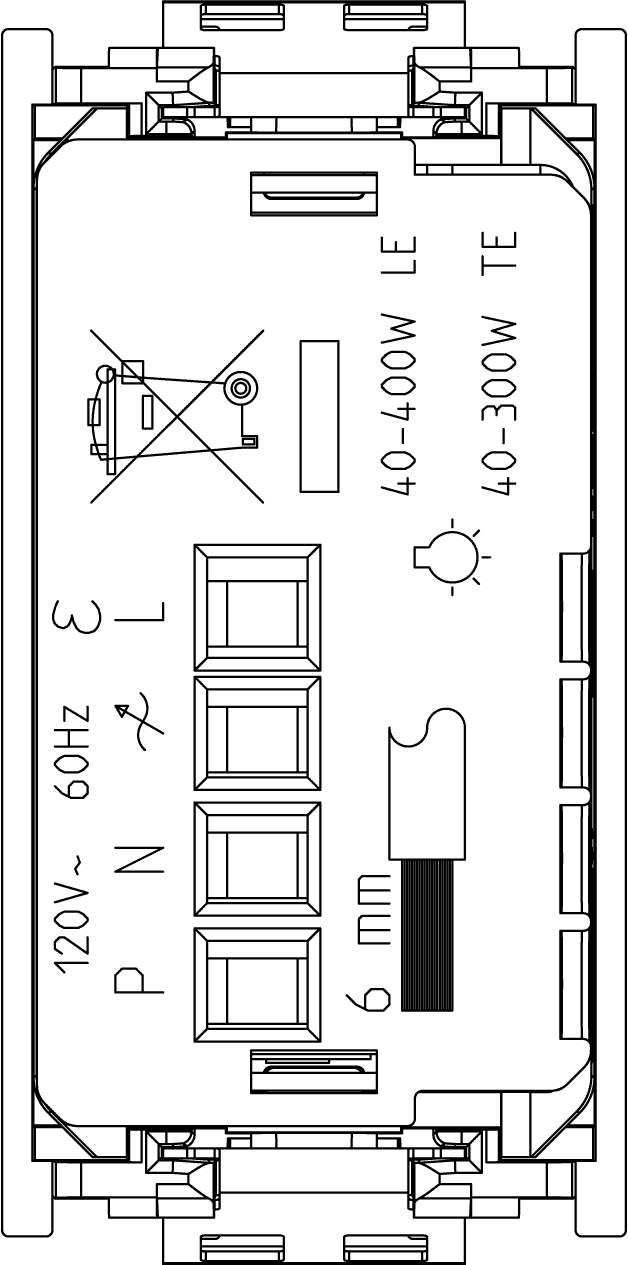

rear view art. 16559.1.120
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 120,01 V
Frequency
60,00 - 60,01 HZ
Control voltage
120,00 - 120,01 V
Connection type
Screwed terminal
Device width
24,80 mm
Device height
50,10 mm
Device depth
58,20 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352575905
1 NR
5.1x4.3x5.3 [cm]
59.1 [g]
Barcode Qty 10 NR
8007352575912
10 NR
26.9x11.6x4.9 [cm]
655.8 [g]
