16563.B
Wiring devices / Traditional wiring devices / IDEA / Devices

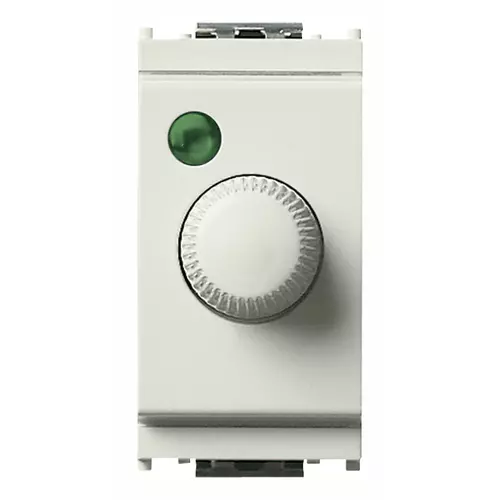

Dimmer 230V 100-500W +push white
Dimmer 230 V~ 50-60 Hz for: 100-500 W incandescent lamps, control by push-push 2-way switch, regulation by rotary potentiometer, visible in darkness, white
Product Status
3 - Active
Class group
Domestic switching devices
Domestic switching devices
Class
Dimmer
Dimmer
Method of operation
Turn/push button
Turn/push button
Type of load
Resistive load
Resistive load
Applicable with button
Yes
Yes
Applicable with movement sensor
No
No
Applicable with presence indicator
No
No
Applicable with time switch/timer
No
No
Applicable with transmission button
No
No
Applicable with infrared button
No
No
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Snapper mounting
Snapper mounting
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
9001
9001
Transparent
No
No
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
230,00 - 230,01 V
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
230,00 - 230,01 V

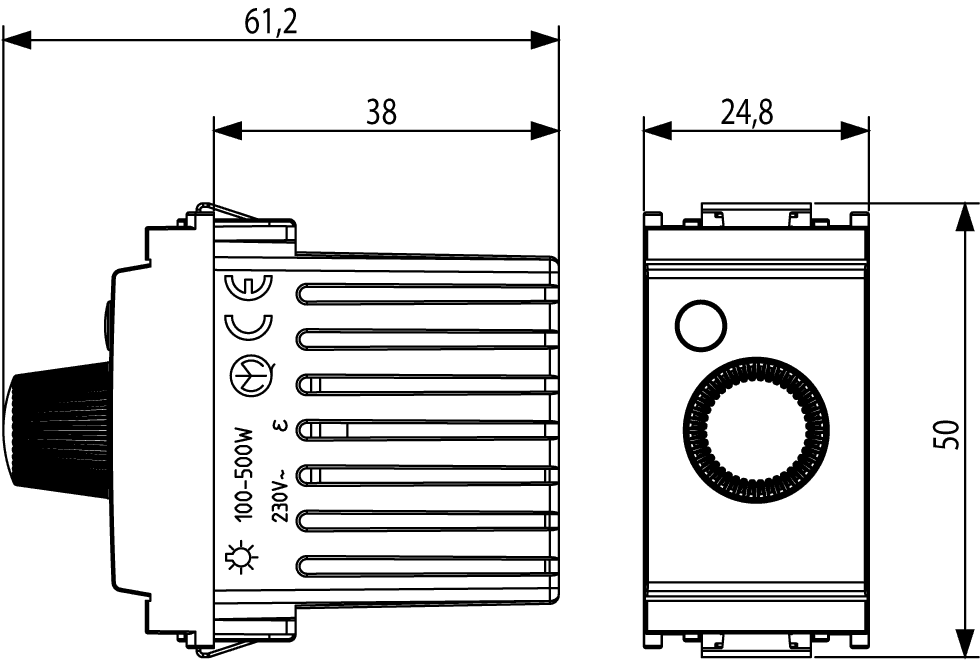

Device width
24,80 mm
24,80 mm
Device height
50,10 mm
50,10 mm
Device depth
58,20 mm
58,20 mm
00. CE Marking - EU
37. Marking - Morocco
Minimum order quantity: 10 NR
Barcode
8007352075207
1 NR
5.3x3.9x7.6 [cm]
64.62 [g]
8007352075214
10 NR
28.1x13.1x6 [cm]
721.6 [g]
8007352657366
120 NR
38.5x29x30 [cm]
9,139.2 [g]
