Electronic time delay switch 230V white - 16572.B

Pdf
Vimar - 16572.B - Electronic time delay switch 230V white
Vimar - 16572.B - Electronic time delay switch 230V white

16572.B
Wiring devices / Traditional wiring devices / IDEA / Devices

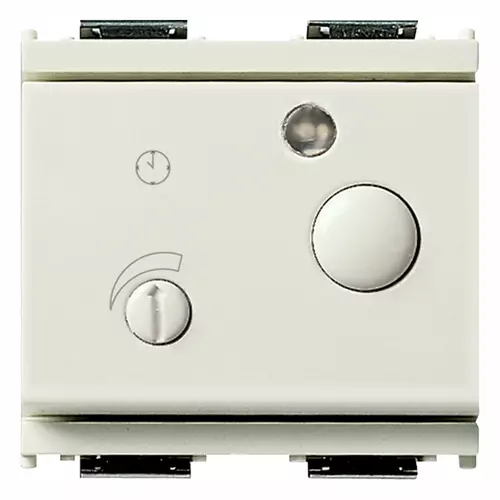

Electronic time delay switch 230V white
Electronic time-delay switch for the control of staircases and utility rooms lighting, of exhaust fans, NO 6 A 230 V~ relay output, visible in darkness, supply voltage 230 V~ 50-60 Hz, white - 2 modules

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

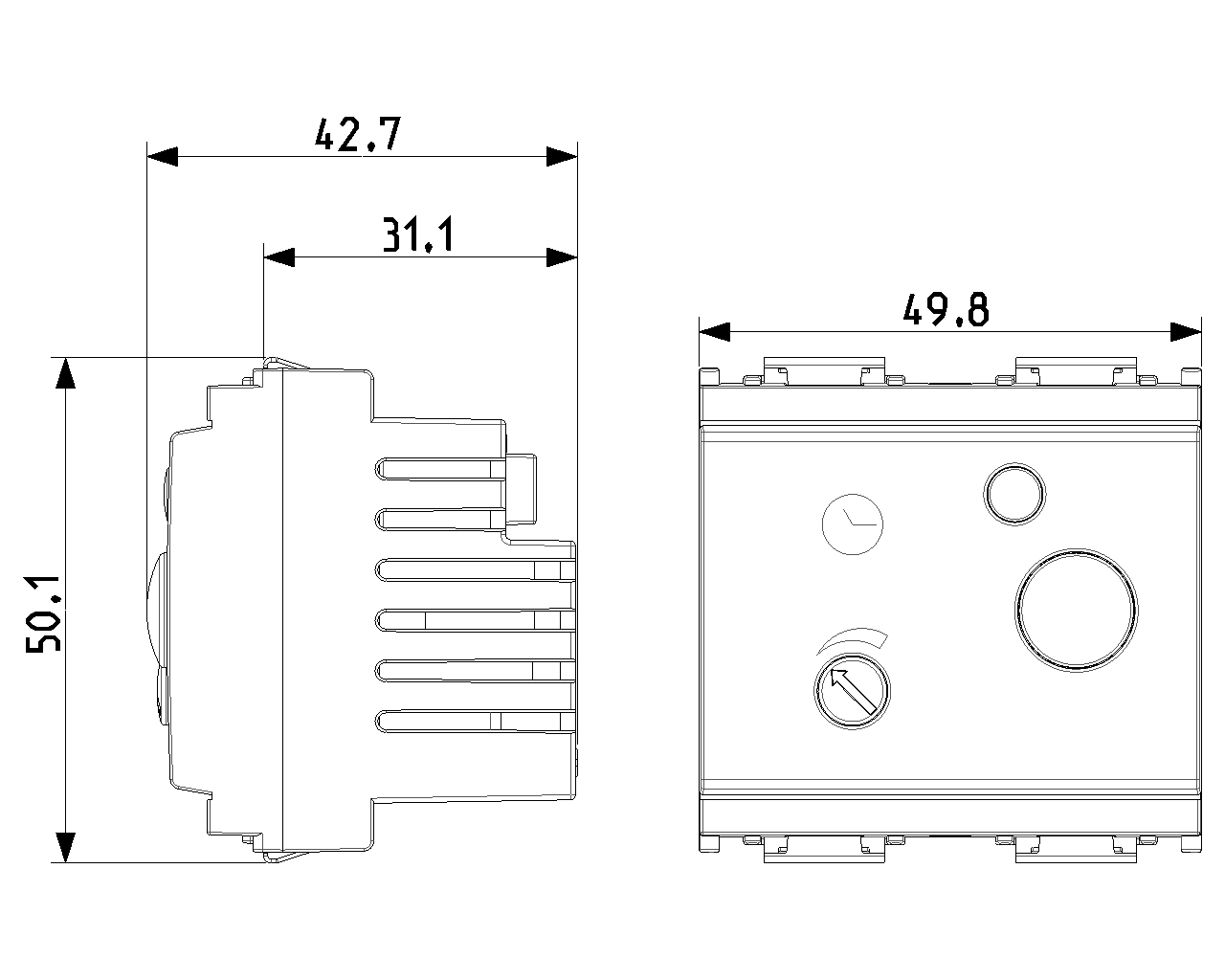

view encumbered art. 16572.B
PNG DXF

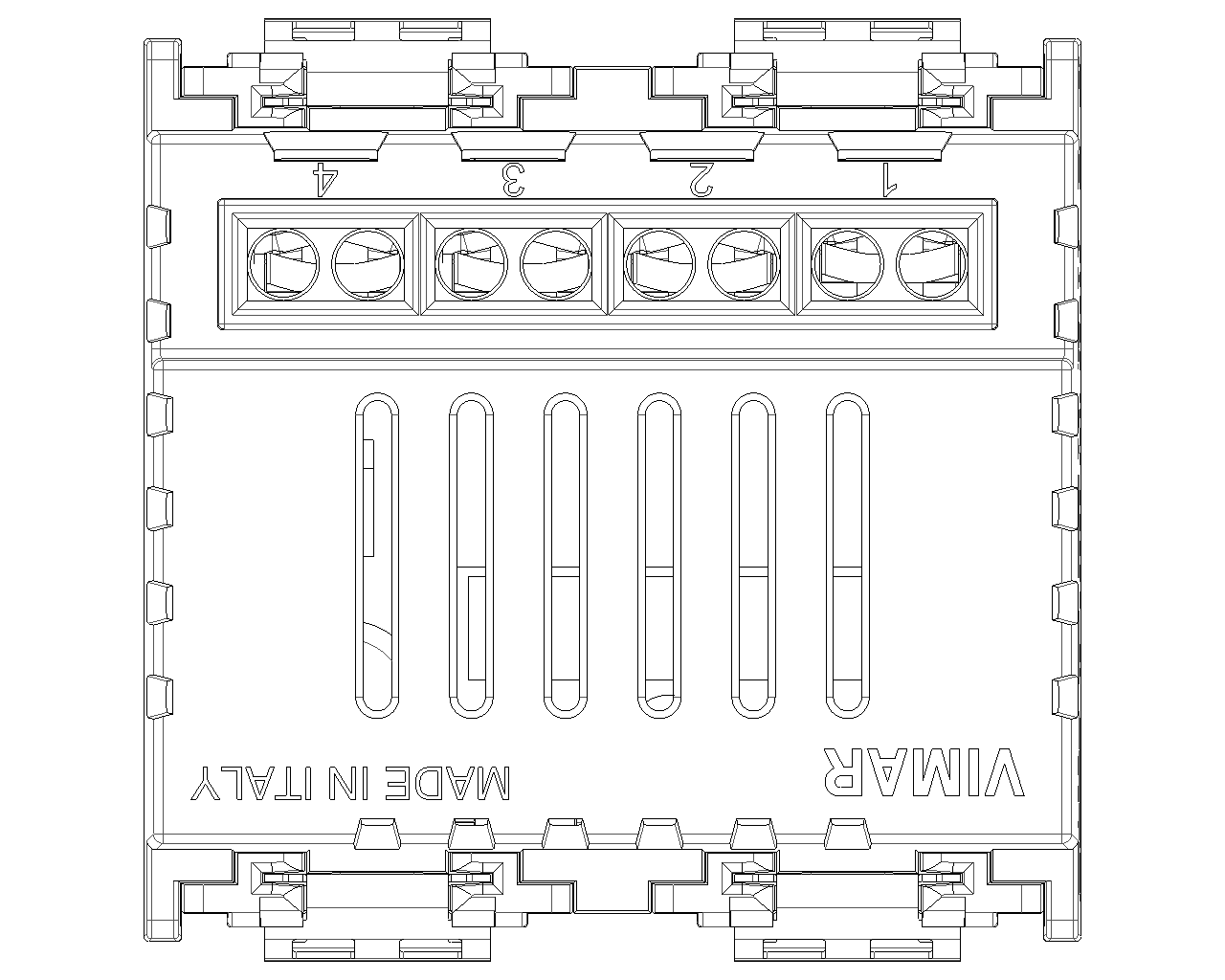

rear view art. 16572.B
PNG DXF
3D view art. 16572.B
PNG DXF
Class group
Domestic switching devices
Class
Electronic insert for domestic switching devices
Model
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Radio-controlled
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352076877
1 NR
6x5.4x5.3 [cm]
71.6 [g]
Barcode Qty 10 NR
8007352077034
10 NR
28.1x13.1x6 [cm]
784.6 [g]
