Univ.MASTER rotary-dimmer 230V white - 16603.1.B

Pdf

16603.1.B
Wiring devices / Traditional wiring devices / IDEA / Devices

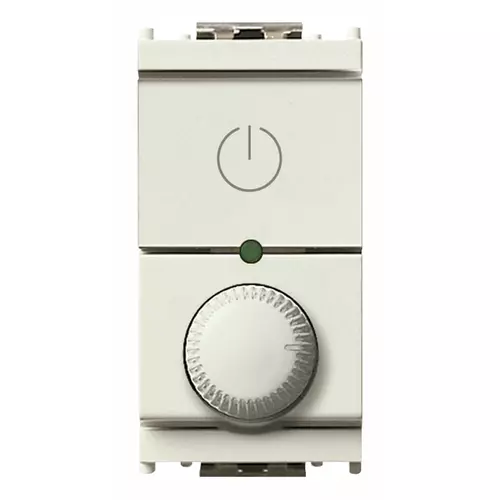

Univ.MASTER rotary-dimmer 230V white
Universal phase cutting dimmer 230 V~ 50 Hz, for 40-400 W incandescent lamps, 40-300 VA electronic transformers, 10-200 W CFL lamps, 3-200 W LED lamps, for LED phase cutting electronic power supply units, ON/OFF control with built-in push button or via NO peripheral push buttons, dimming with built-in rotary potentiometer, minimum brightness control, visible in darkness, white. Device not suiTable for installation in Isoset enclosures

Product Status
3 - Active

Sheets, Manuals, Documentation

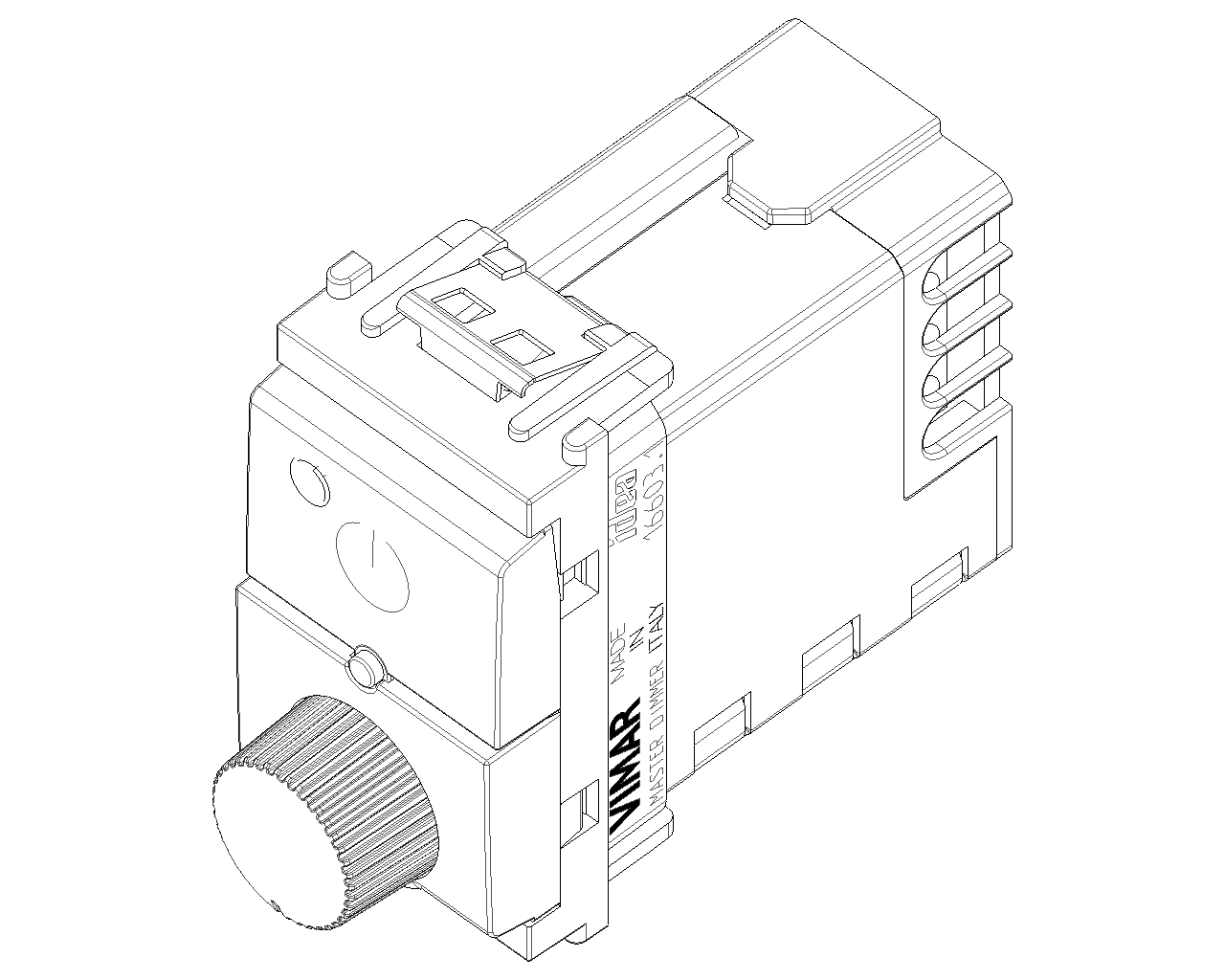

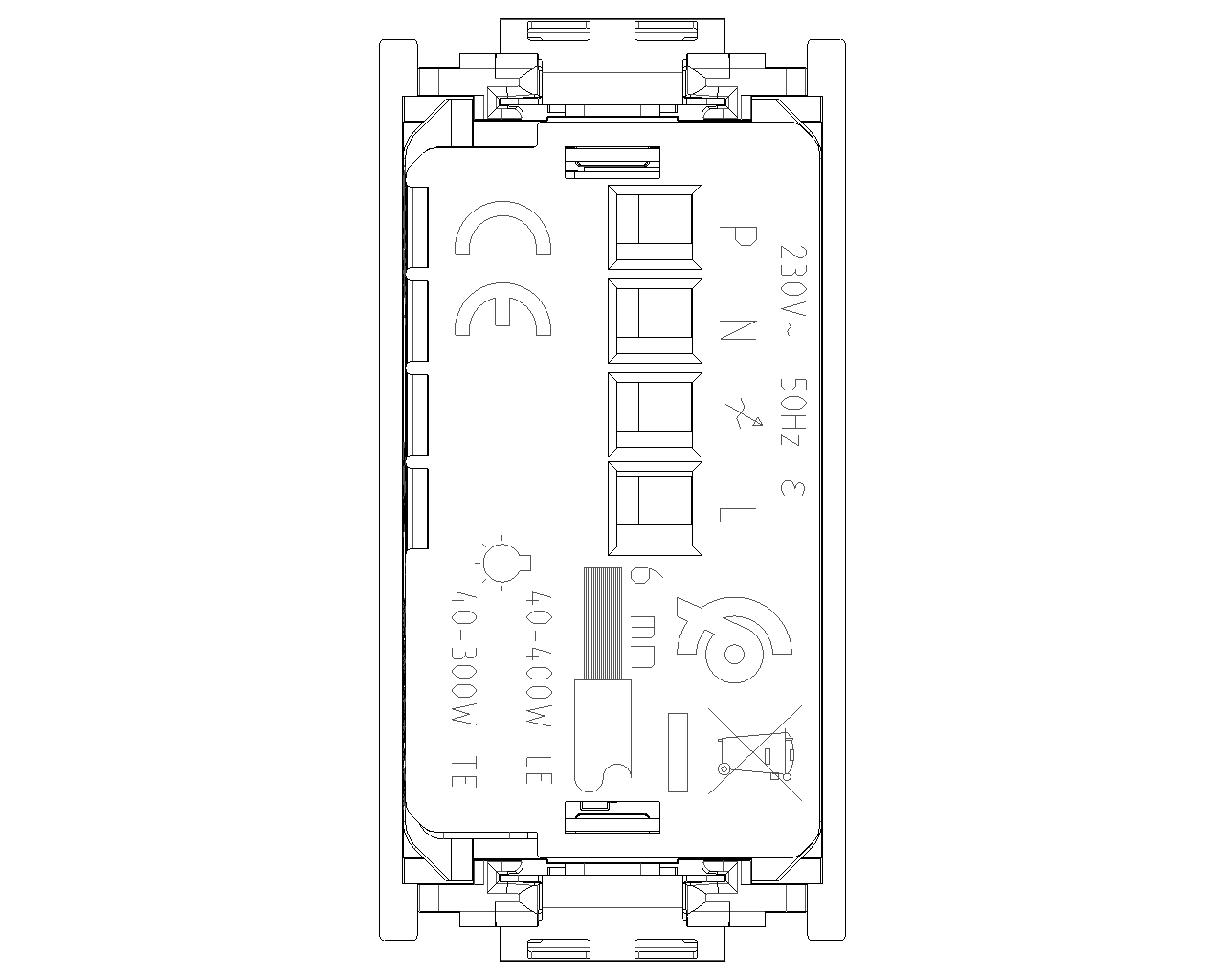

Drawings

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
9001
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 50,01 HZ
Control voltage
230,00 - 230,01 V
Connection type
Screwed terminal
Device width
24,80 mm
Device height
50,10 mm
Device depth
60,40 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352555778
1 NR
5.2x3.9x6.2 [cm]
57.8 [g]
Barcode Qty 10 NR
8007352555785
10 NR
20.5x11.5x7 [cm]
641.6 [g]
