IR detector 12Vdc SELV for alarm white - 16620.B

Pdf
Vimar - 16620.B - IR detector 12Vdc SELV for alarm white
Vimar - 16620.B - IR detector 12Vdc SELV for alarm white
16620.B

Idea / Devices / Presence detection

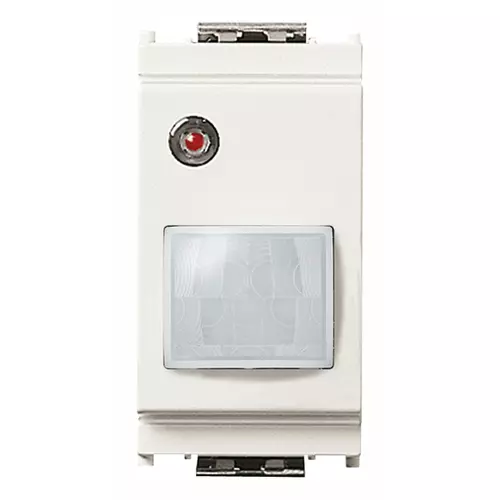

IR detector 12Vdc SELV for alarm white
Volumetric infrared motion detector for conventional burglar alarm systems, supply voltage 12 Vdc (SELV), white

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Class group
Alarm installations, emergency call and signalling
Class
Movement sensor for intrusion detection system
Type of messaging
Passive infrared
Mounting method
Built-in
Detection range
112
Operating current
6,50 mA
Operating voltage
12,00 - 12,01 v
Height
50,10 mm
Width
24,80 mm
Depth
51,60 mm
Characteristic
Other
Cover monitoring
No
Radio system
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352060760
1 NR
6x2.8x5.3 [cm]
42.07 [g]
Barcode Qty 5 NR
8007352428393
5 NR
14.2x6.7x5.9 [cm]
239.35 [g]
