IR relay-switch 230V white - 16633.B

Pdf

16633.B
Wiring devices / Traditional wiring devices / IDEA / Devices

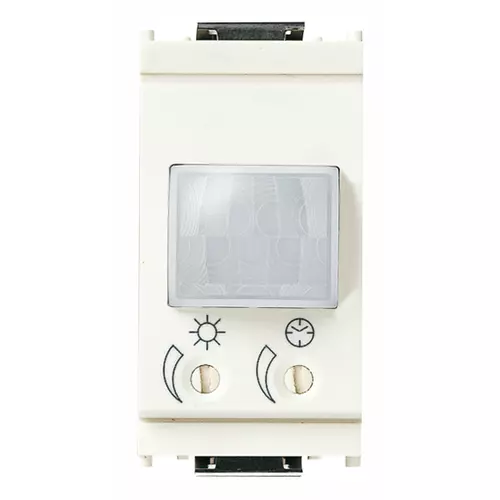

IR relay-switch 230V white
Automatic lighting switch with IR motion sensor, adjustable dusk/dawn sensor threshold and time-delay cycle, NO 6 A 230 V~ relay output, supply voltage 230 V~ 50-60 Hz, weiß

Product Status
3 - Active

Class group
Domestic switching devices
Class
Electronic insert for domestic switching devices
Model
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Radio-controlled
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352328464
1 NR

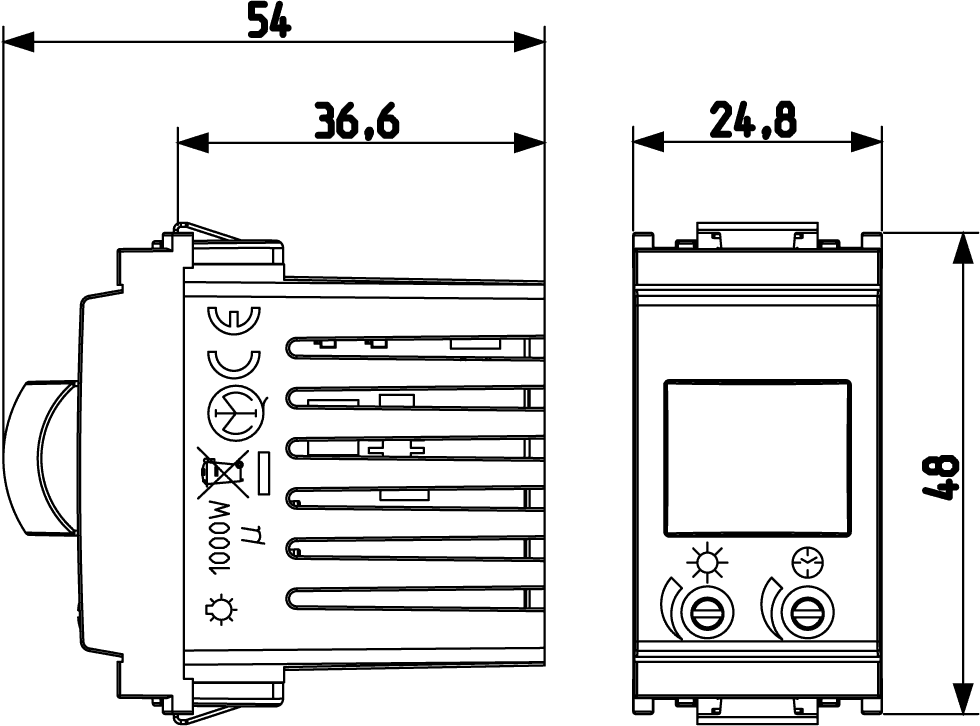

5.3x3.9x7.6 [cm]
55.13 [g]
Barcode Qty 5 NR
8007352328471
5 NR
20.6x8.5x6 [cm]
322.73 [g]
Question: Where should I install the 16633 Idea and 14181 Plana switches with infrared presence detectors for switching on lights?
Answer: Keep them away from heat sources and barriers like plants, furniture or columns; they should not be exposed to direct sunlight or have interior lights shining directly on them; they should be mounted 110 to 130cm above ground level if the installation is flush mounted. For higher installation, they must be installed on an adjustable supports.
