Frame 2M for DIN rail - 16727

Pdf
16727

Idea / Mounting frames / For DIN rail

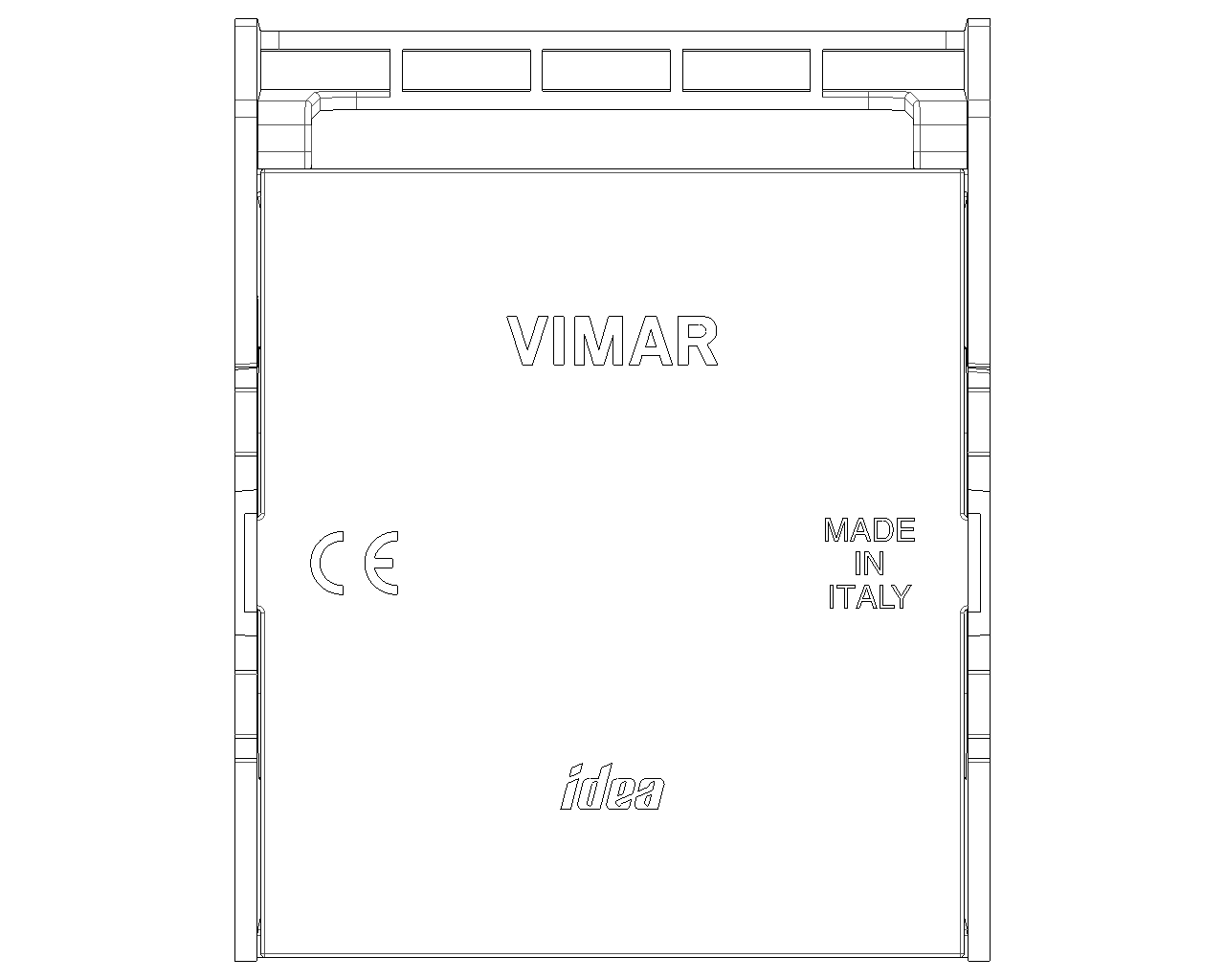

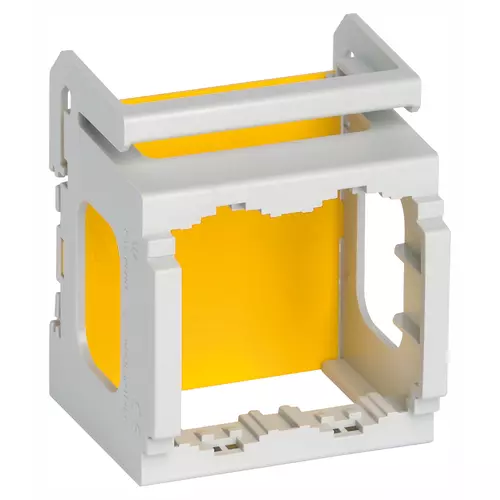

Frame 2M for DIN rail
2-module frame for DIN (60715 TH35) rail installation, occupies 2 17,5 mm modules, RAL 7035 grey

Product Status
3 - Active

Class group
Domestic switching devices
Class
Holder for modular domestic switching de
Model
Flush mounted (plaster)
Mounting method
Snap mounting
Mounting method of the module
Back side
Mounting direction
Horizontal and vertical
Number of modules horizontal (
2
Number of modules vertical (mo
1
With built-in installation box
No
With screws
No
Suitable for mounting in round
No
Suitable for flush-mounted ins
No
Suitable for floor box
No
Suitable for wall duct
No
Suitable for mounting on DIN-r
Yes
Material
Plastic
Material quality
Thermoplastic
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352133402
1 NR

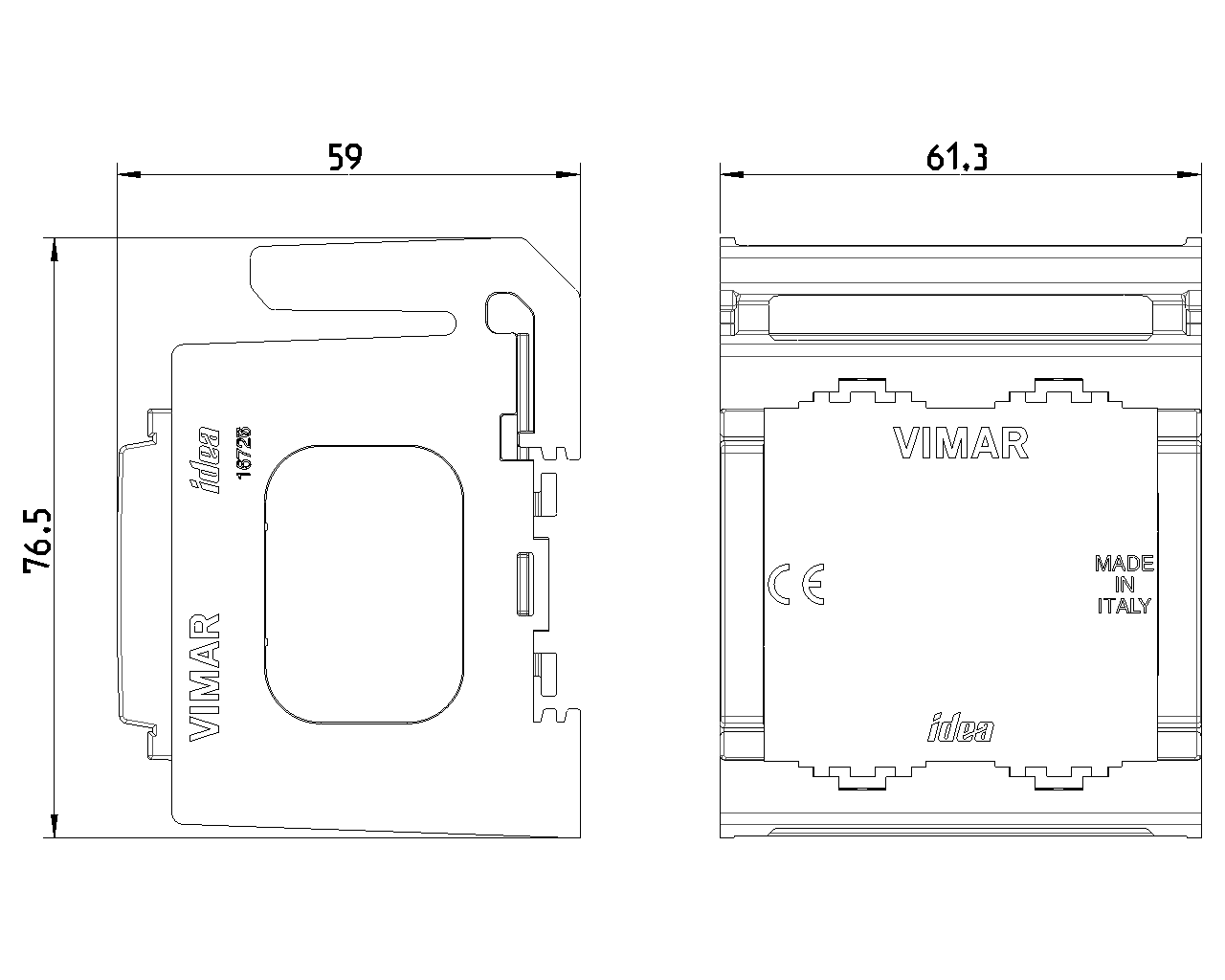

7.7x6.1x5.9 [cm]
28.4 [g]
Barcode Qty 20 NR
8007352133419
20 NR
35.5x24.8x8.7 [cm]
728.13 [g]
