Classica plate 18M techn. black - 16749.16

Pdf
16749.16

Idea / Cover plates / Technopolymer Classica cover plates

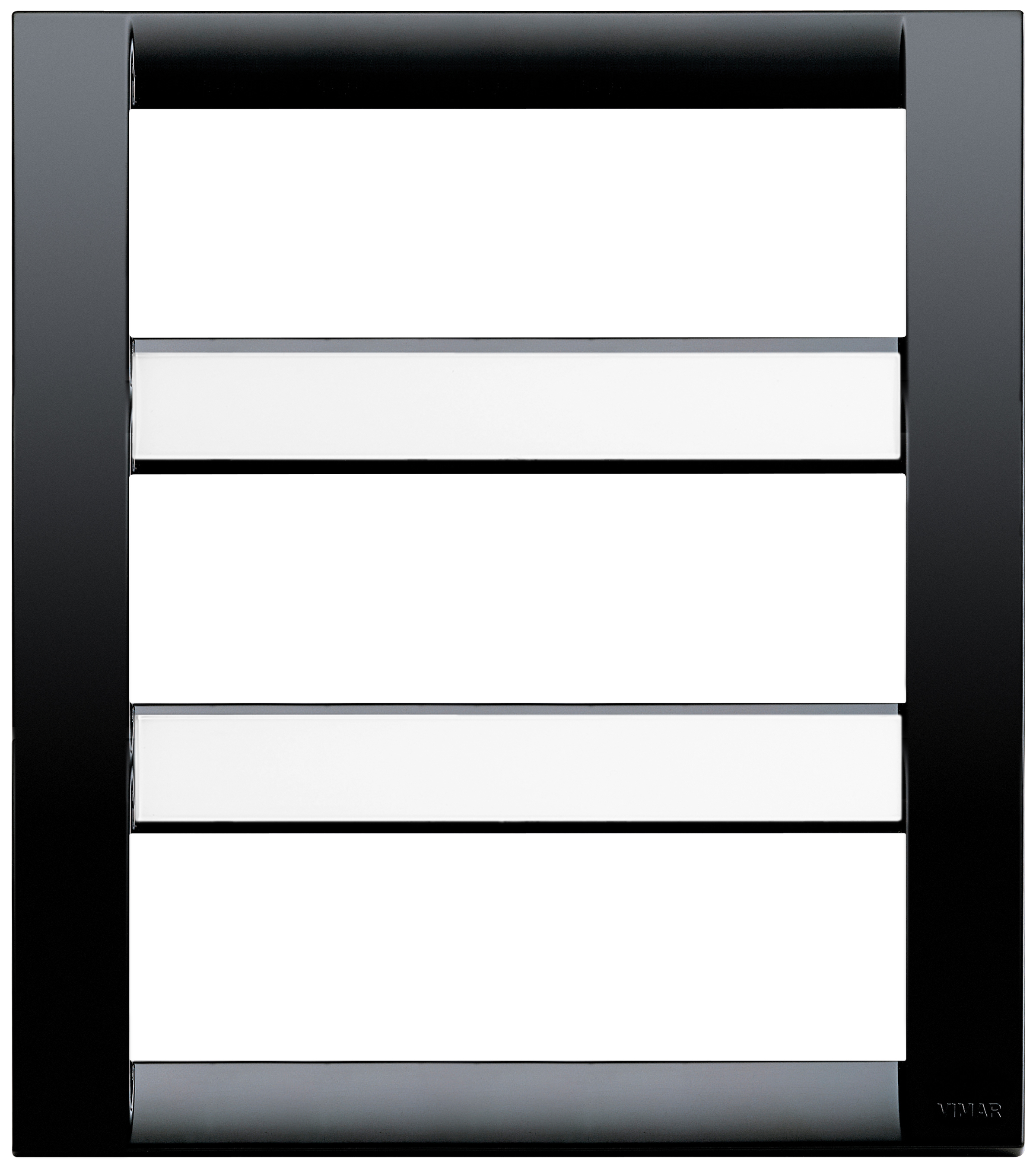

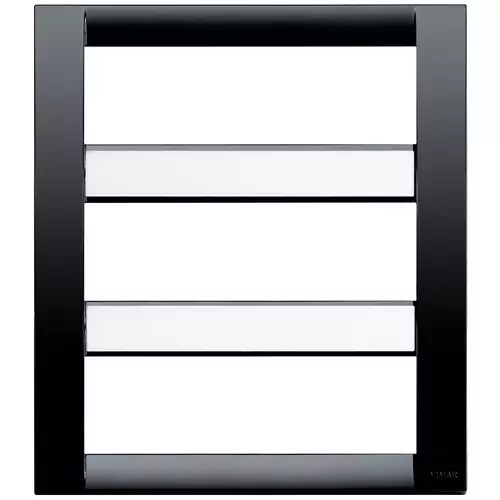

Classica plate 18M techn. black
18-module Classica cover plate, technopolymer, black

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
18
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
3
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
3
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted installation
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
No
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (akin)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
206,00 mm
Height
222,00 mm
Depth
11,00 mm
Built-in width
206,00 mm
Built-in height
222,00 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352114715
1 NR
20.6x22.2x1.1 [cm]
99.87 [g]
Barcode Qty 5 NR
8007352114722
5 NR
21.7x22.1x8.3 [cm]
618.53 [g]
