Two rocker butt.+roller laths actuator w - 16967.1.B

Pdf
Vimar - 16967.1.B - Two rocker butt.+roller laths actuator w
Vimar - 16967.1.B - Two rocker butt.+roller laths actuator w

16967.1.B
Smart systems&products / By-me Plus / IDEA / Devices

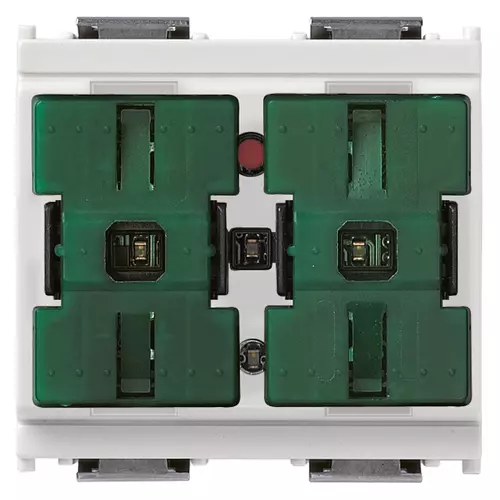

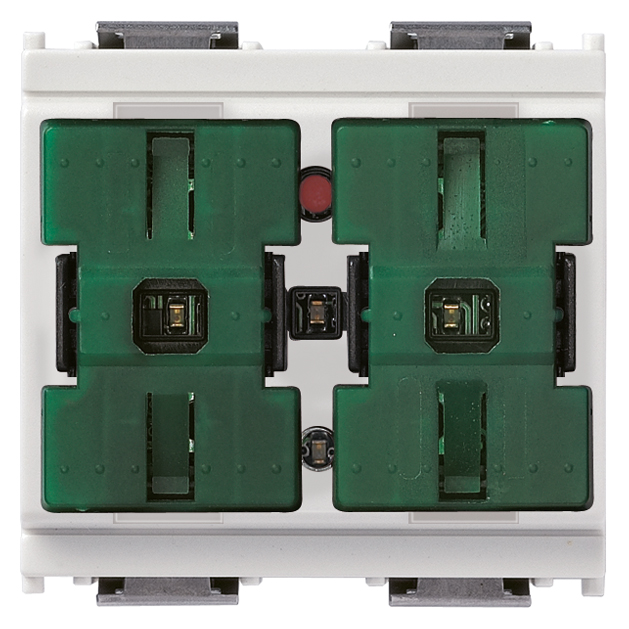

Two rocker butt.+roller laths actuator w
Two rocker push buttons and actuator for 1 roller shutter laths positioning, relay output for cosφ 0.6 2 A 120-230 V~ motor, to complete with interchangeable 1- or 2-module buttons, white - 2 modules

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of modules (module system)
200
Number of poles
1
Nominal voltage
230 V
Rated current
2,00 A
With lighting
Yes
Monitoring contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP40
Device width
49,80 mm
Device height
50,10 mm
Device depth
44,80 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352434073
1 NR
11.2x9.6x9.8 [cm]
124.5 [g]
