16969.120

Idea / Systems / Domotics - devices

Two rocker push buttons+SLAVE actuator g
Two rocker push buttons and actuator for SLAVE dimmer 120 V~ 60 Hz for: LED lamps and electronic transformers, RGB lamps and electronic transformers, to complete with interchangeable 1- or 2-module buttons <(>,<)> grey - 2 modules

Product Status
42 - Will be discontinued

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of modules (module system)
2
Number of poles
1
Nominal voltage
120 v
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP40

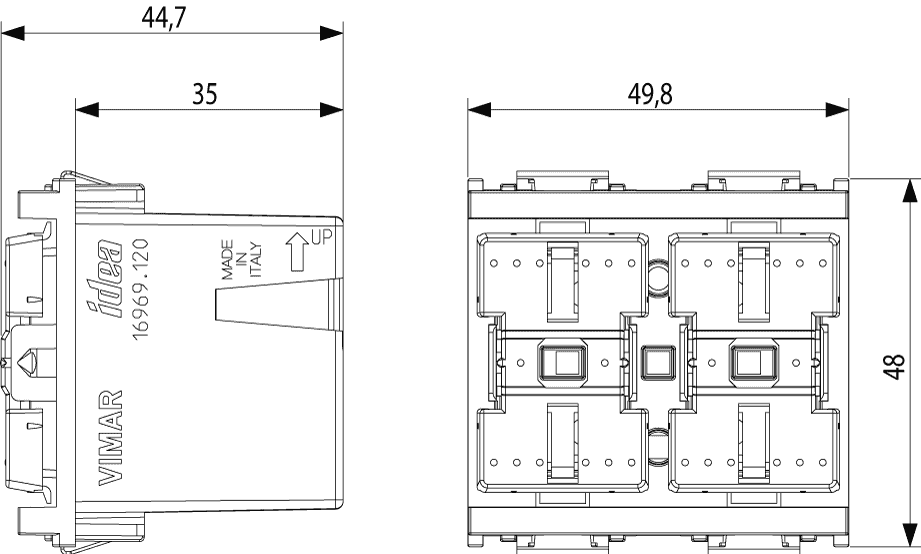

Width of device
49,80 mm
Height of device
50,10 mm
Depth of device
44,80 mm

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352498129
1 NR
11.2x9.6x9.8 [cm]
117.6 [g]
