TV-RD-SAT single-conn.out.2outs white - 17067.01.B

17067.01.B
Wiring devices / Traditional wiring devices / IDEA / Devices

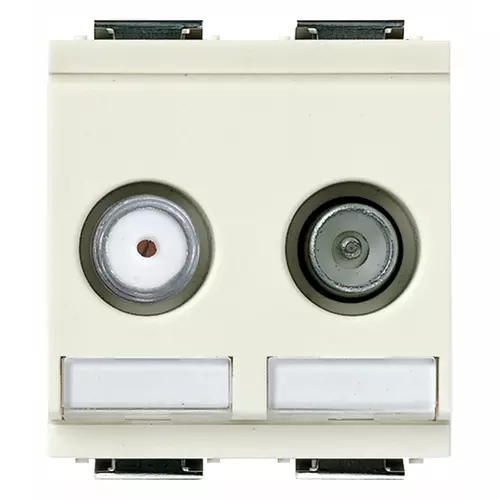

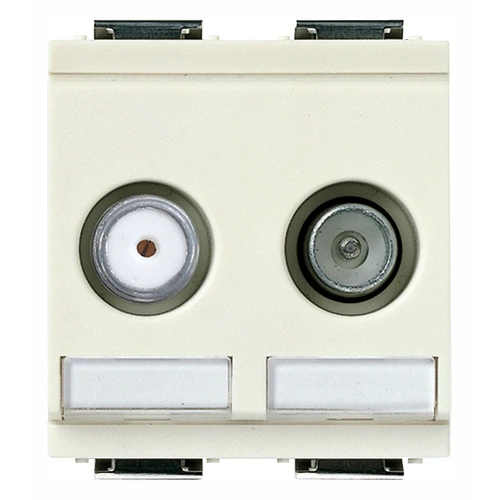

TV-RD-SAT single-conn.out.2outs white
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, single connection, demix, 2 outputs with male (TV-RD) and female F-type (SAT) connectors, connection attenuation 1 dB, white - 2 reduced modules. Allows the passage of d.c. current and control signals (24 V 500 mA max) through the female connector

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (905 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
TWIN end socket

Cover
None

Tap loss at 860 MHz
1,00 dB

Tap loss at 2150 MHz
1,00 dB

Number of outlets
2

Suitable for remote power supply
Yes

Type of fastening
Snap mounting (engagement)

Colour
White

RAL-number (similar)
9001

Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352400894

1 NR

5.1x4.3x5.3 [cm]

83.3 [g]

8007352401051

10 NR

26.9x11.6x4.9 [cm]

885.8 [g]
