Classica plate 1-2M met.antique brass - 17092.37

Pdf

17092.37
Wiring devices / Traditional wiring devices / IDEA / Cover plates

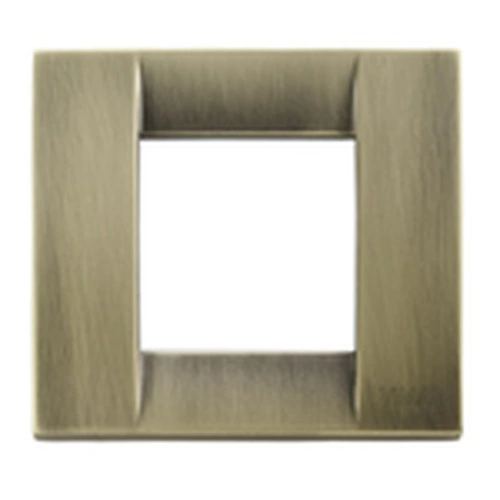

Classica plate 1-2M met.antique brass
1-module or 2-reduced-module Classica cover plate, die-cast metal, antique brass

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Glossy
Colour
Brass
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
88,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
88,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352357747
1 NR
8.5x9.1x1.1 [cm]
94.1 [g]
Barcode Qty 10 NR
8007352357754
10 NR
9.9x12.4x9.6 [cm]
981.2 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
