1P 10AX 1-way switch 2M grey - 19000.2

Pdf

19000.2
Wiring devices / Traditional wiring devices / ARKÉ / Devices

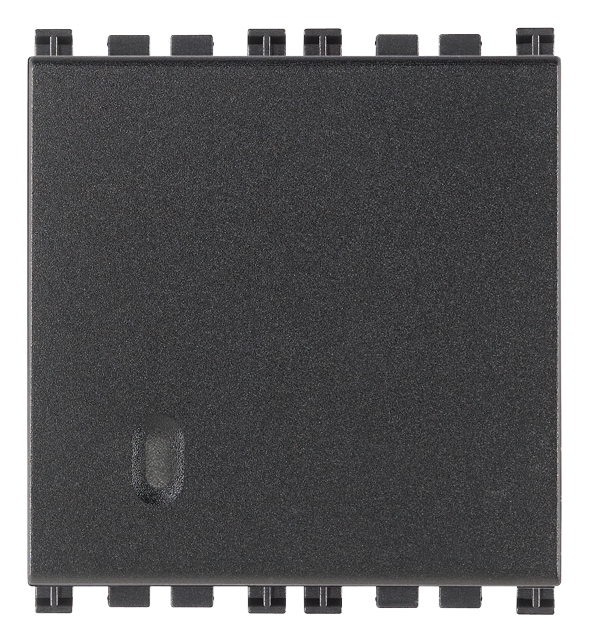

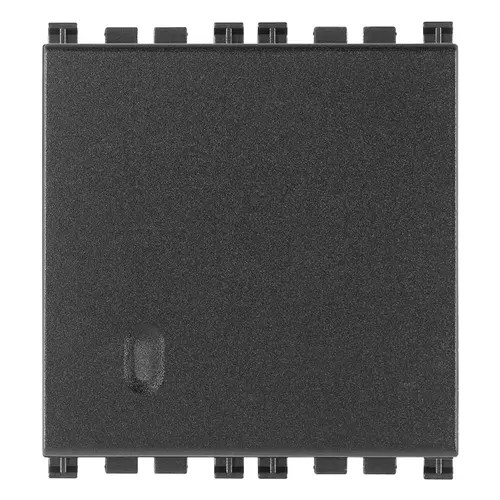

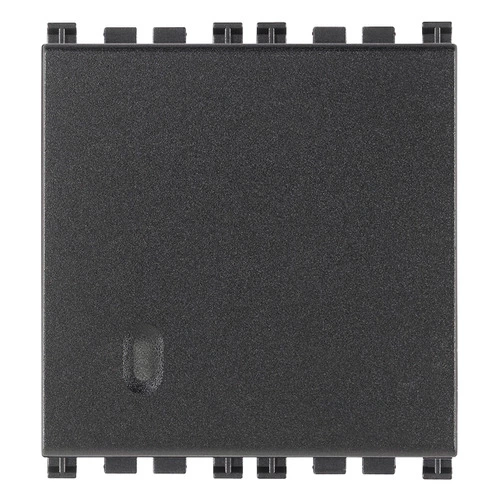

1P 10AX 1-way switch 2M grey
1P 10 AX 250 V~ 1-way switch, lightable, replaceable button, grey - 2 modules. Max 100 W for lamps with built-in power unit(IEC 60669-1:2017)

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

50. Product Environm. Profile

92. RoHS UAE

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352685031
1 NR
5.1x4.3x5.3 [cm]
34 [g]
Barcode Qty 20 NR
8007352685048
20 NR
26.9x11.6x9 [cm]
767.8 [g]
Barcode Qty 240 NR
8007352685055
240 NR
38x28.5x35.5 [cm]
9,756 [g]
