Vimar - 19005.M - 1P 16AX 2-way switch Metal

19005.M

Arké Metal / Devices / Basic devices

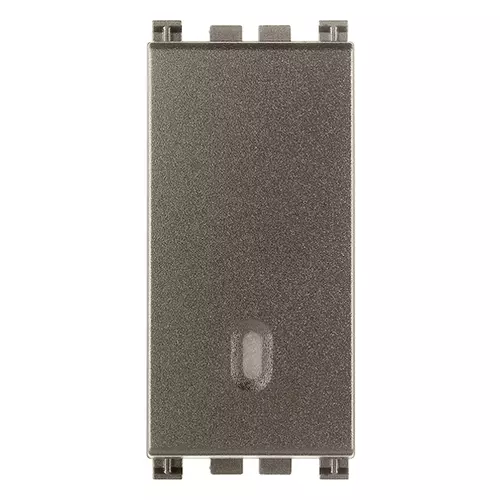

1P 16AX 2-way switch Metal
1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, Metal. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

19005 - 1P 16AX 2-way switch grey

19005.B - 1P 16AX 2-way switch white

00936.250.W - LED unit 250V 0,35W white

Video

Arké lives in your time

Drawings

view encumbered art. 19005.M

PNG DXF

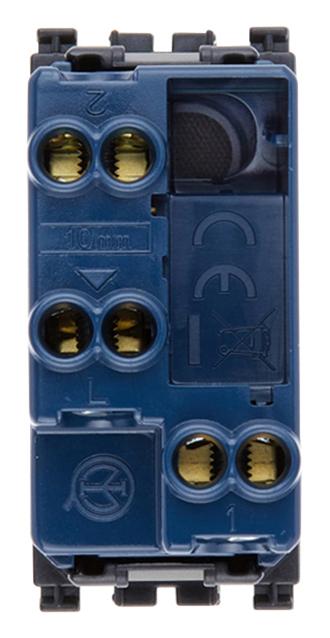

rear view art. 19005.M

PNG DXF

3D view art. 19005.M

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Matt

Colour
Aluminium

RAL-number (similar)
9007

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
22,30 mm

Device height
49,00 mm

Device depth
36,80 mm

Built-in depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

07. INGCER - Chile

10. EAC Eurasian Customs Union

13. SNI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

34. PSE - Japan

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

50. Product Environm. Profile

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352598188

1 NR

4.1x2.8x5.3 [cm]

28.2 [g]

8007352598195

50 NR

21.4x11.6x14.2 [cm]

1,513 [g]

8007352598201

500 NR

57.5x22.5x30 [cm]

15,584 [g]
