1P NO 10A push button screwless white - 19008.FX.B

Pdf

19008.FX.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

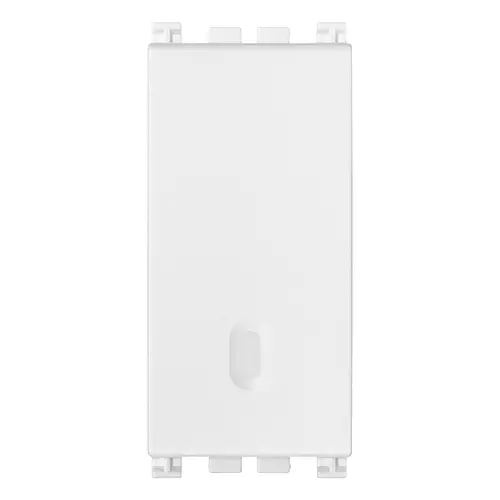

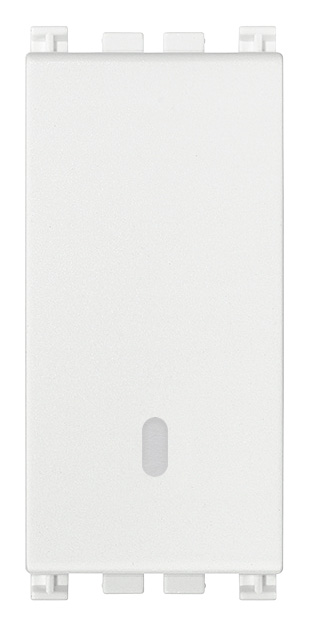

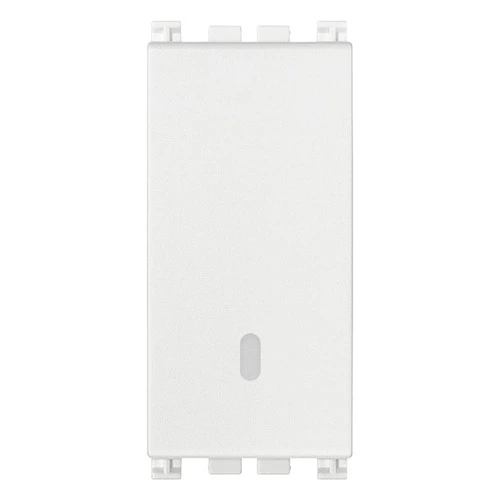

1P NO 10A push button screwless white
1P NO 10 A 250 V~ push button, screwless terminals, lightable, replaceable button, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

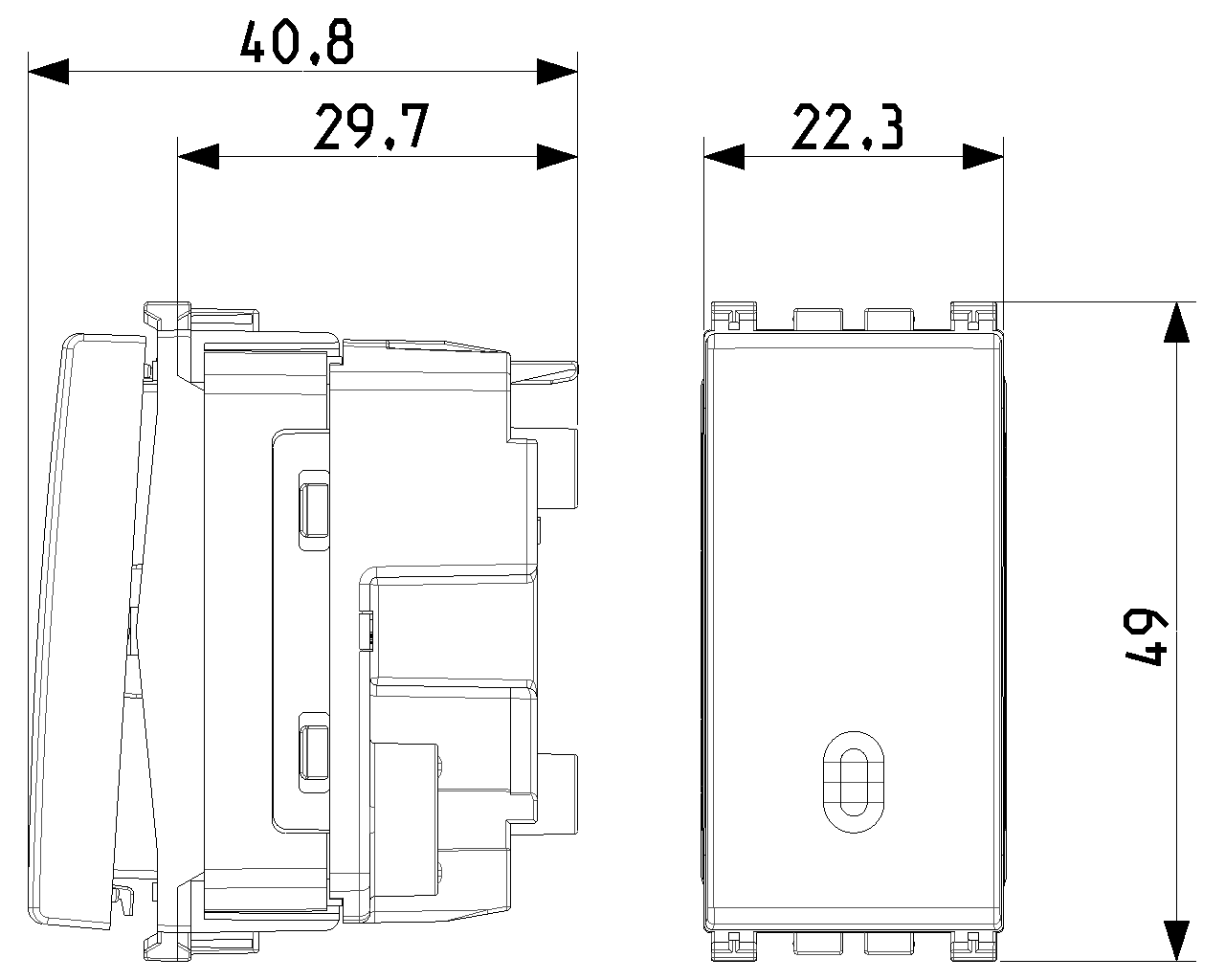

Device width
22,30 mm
Device height
49,00 mm
Device depth
38,50 mm

00. CE Marking - EU

31. TISI - Thailand

37. Marking - Morocco

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352514843
1 NR
5.1x2.8x5.3 [cm]
25.2 [g]
Barcode Qty 50 NR
8007352514850
50 NR
27x15x12 [cm]
1,351 [g]
