Blank module Metal - 19041.M

Pdf

Vimar - 19041.M - Blank module Metal

19041.M
Wiring devices / Traditional wiring devices / ARKÉ / Blank module

Blank module Metal
Blank module, Metal

Product Status
3 - Active

Video

Arké lives in your time

Drawings

view encumbered art. 19041.M

PNG DXF

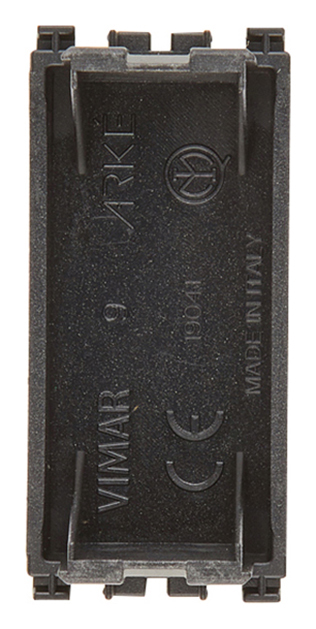

rear view art. 19041.M

PNG DXF

3D view art. 19041.M

PNG DXF

Class group
Domestic switching devices

Class
Push button

Method of operation
Other

Number of modules (module system)
100

Nominal voltage
0 V

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Mounting with claw

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Matt

Colour
Aluminium

RAL-number (similar)
9007

Transparent
No

Label space/information surface
Yes

Device width
22,20 mm

Device height
49,00 mm

Device depth
20,20 mm

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

15. CCC - China

29. QCERT - Colombia

43. UKCA mark - Great Britain

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 100 NR

Barcode

8007352596559

1 NR

2.22x4.9x2.02 [cm]

4.4 [g]

8007352596580

10 NR

2.2x4.9x20 [cm]

45.8 [g]

8007352596597

100 NR

28.2x11.1x10 [cm]

551 [g]

8007352596603

1,000 NR

57.5x22.5x30 [cm]

5,994 [g]

8007352613362

21,000 NR

80x120x103 [cm]

124,908 [g]
