19097.AB
Wiring devices / Traditional wiring devices / ARKÉ / Devices

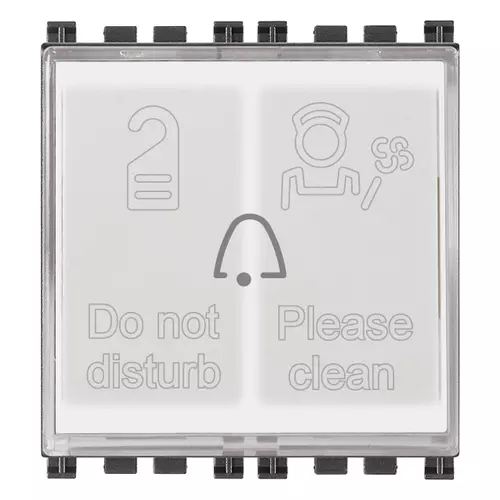

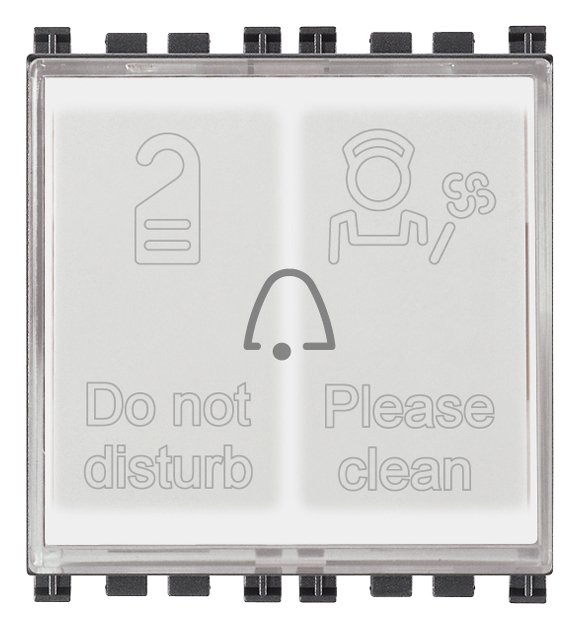

Button+2 hotel pilots 230V antibact.grey
1P NO 10 A 250 V~ push button with 2 indicator units Do Not Disturb / Please Clean 230 V~ for hotel sector, antibacterial material, grey - 2 modules
Product Status
3 - Active

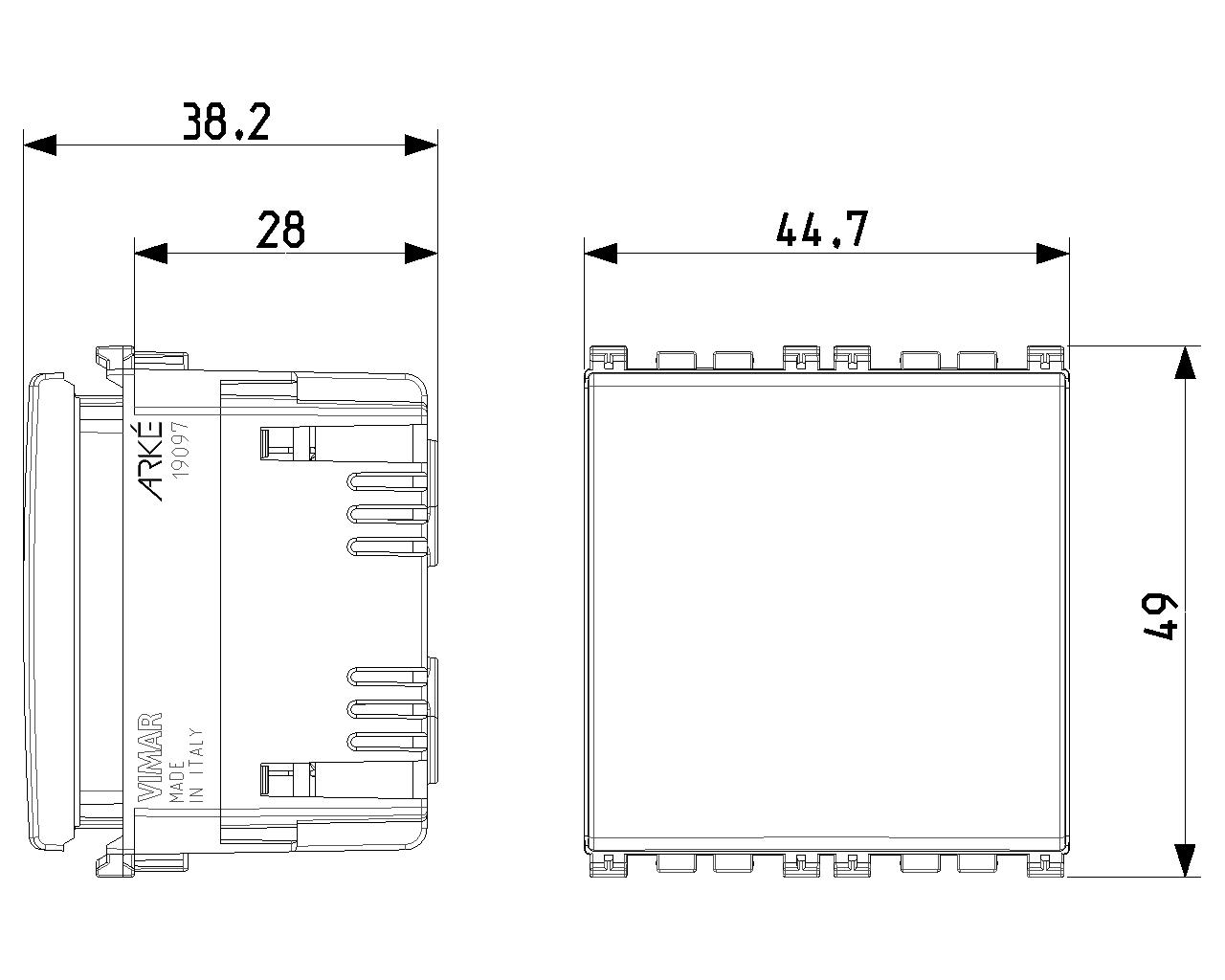

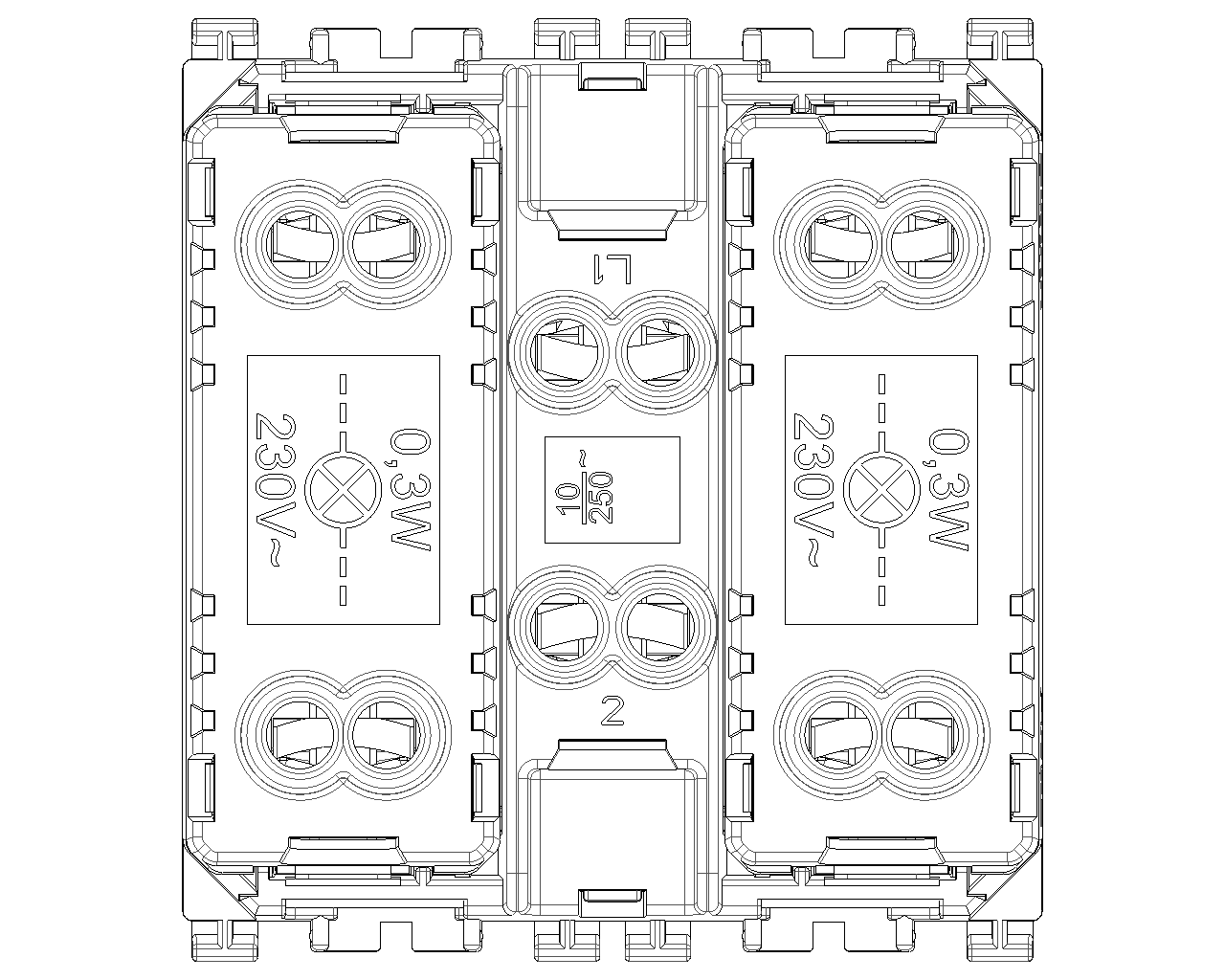

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Push button
Push button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Model
Single push button
Single push button
Method of operation
Push button
Push button
Number of rockers
1
1
Number of modules (module system)
200
200
Number of poles
1
1
Nominal voltage
250 V
250 V
Rated current
10,00 A
10,00 A
With lighting
Yes
Yes
Monitoring contact
No
No
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Anti-bacterial treatment
Yes
Yes
Surface protection
Other
Other
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
7015
7015
Transparent
No
No
Label space/information surface
Yes
Yes
Suitable for degree of protection (IP)
IP40
IP40
Device width
44,80 mm
44,80 mm
Device height
49,00 mm
49,00 mm
Device depth
37,50 mm
37,50 mm
Minimum order quantity: 10 NR
Barcode
8007352652460
1 NR
5.1x5.3x4.3 [cm]
50.8 [g]
8007352652477
10 NR
26.9x11.6x4.9 [cm]
573.6 [g]
