MASTER dimmer 230V antibacterial white - 19135.AB.1.B

Pdf

19135.AB.1.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

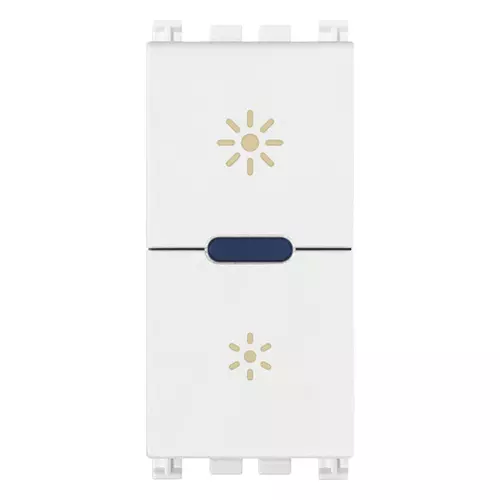

MASTER dimmer 230V antibacterial white
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-400 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps, LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 19137, minimum brightness regulation, visible in darkness, antibacterial material, white. Not for Isoset enclosures

Product Status
3 - Active

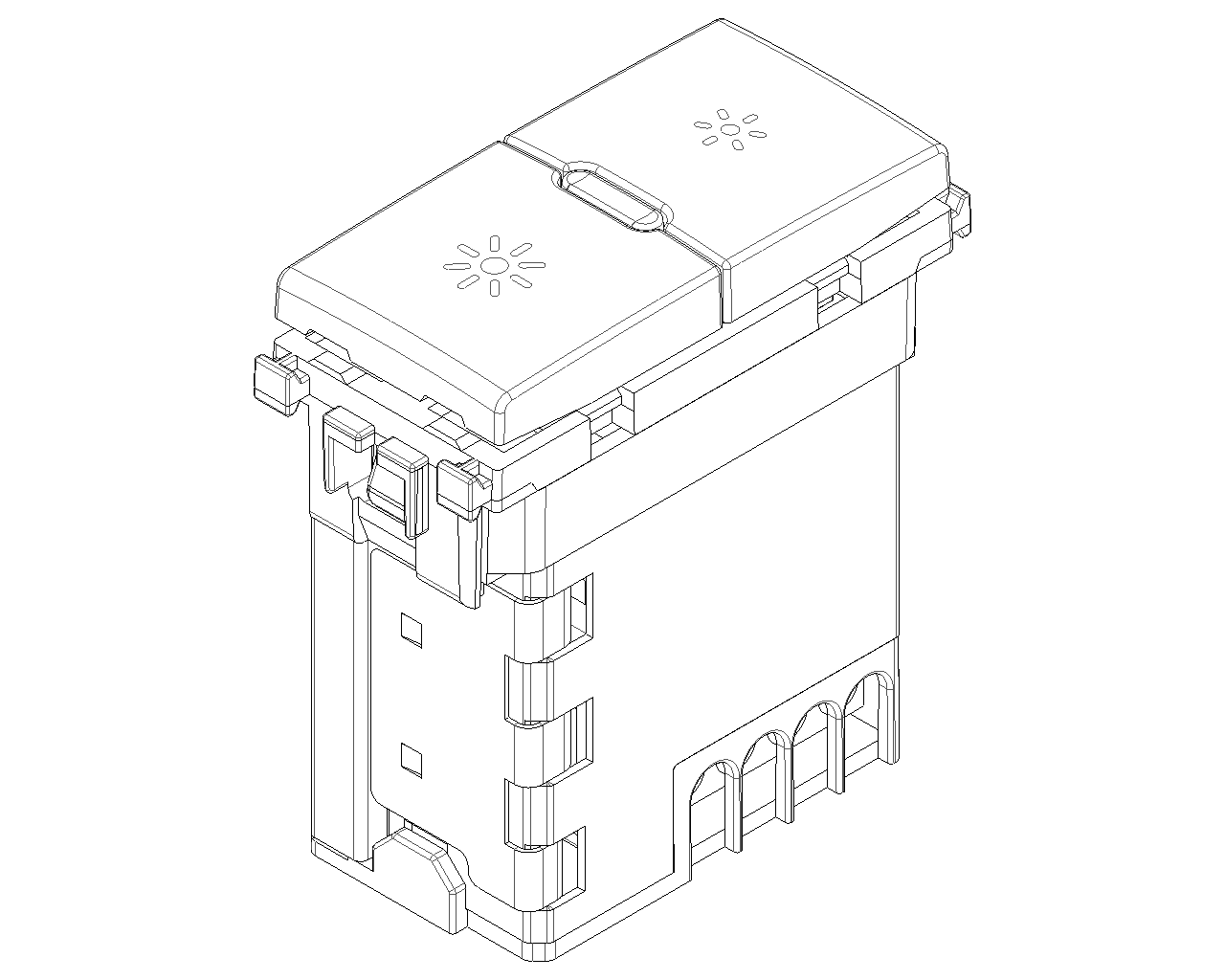

Drawings

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Number of modules (module system)
1
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 50,01 HZ
Control voltage
230,00 - 230,01 V
Connection type
Screwed terminal

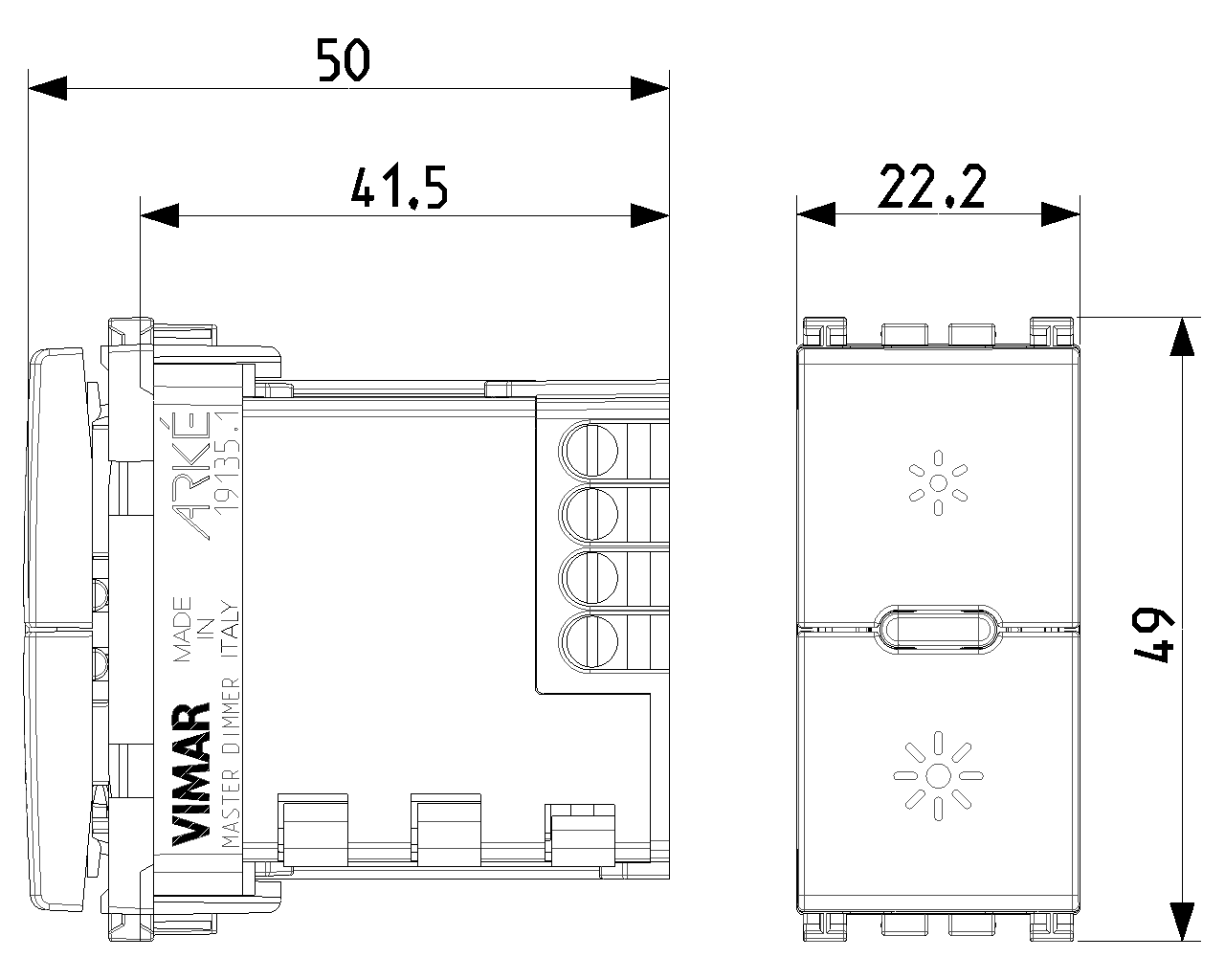

Device width
22,30 mm
Device height
49,00 mm
Device depth
50,70 mm

00. CE Marking - EU

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352652989
1 NR
5.1x4.3x5.3 [cm]
54.4 [g]
Barcode Qty 10 NR
8007352652996
10 NR
26.9x11.6x4.9 [cm]
610 [g]
