MASTER dimmer 120V white - 19136.120.B

Pdf
Vimar - 19136.120.B - MASTER dimmer 120V white
Vimar - 19136.120.B - MASTER dimmer 120V white

19136.120.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

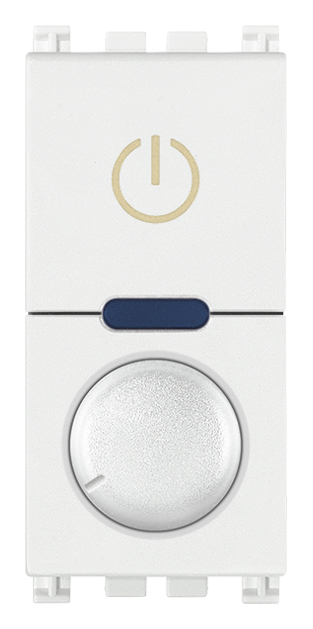

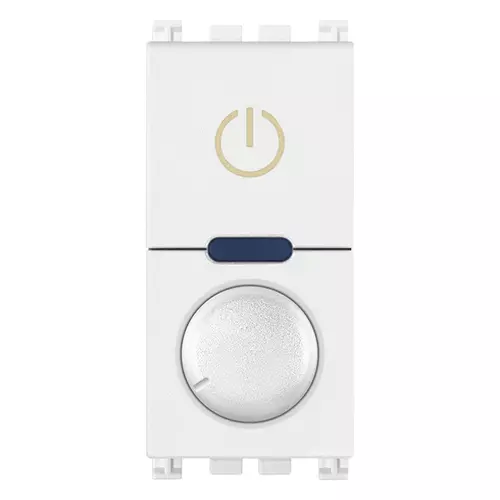

MASTER dimmer 120V white

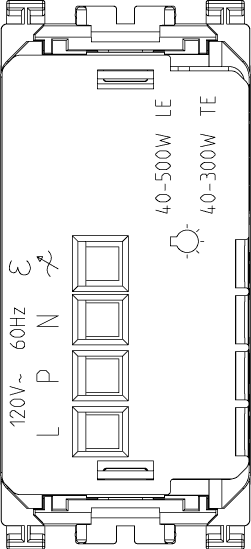

Dimmer 120 V~ 60 Hz for: 40-500 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED electronic transfomers, control with built-in push button or from NO peripheral push buttons, control and regulation by rotary potentiometer, MASTER function for 19137.120, minimum power control, visible in darkness, white. Not for Isoset enclosures

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 120,01 V
Frequency
60,00 - 60,01 HZ
Control voltage
120,00 - 120,01 V
Connection type
Screwed terminal
Device width
22,30 mm
Device height
49,00 mm
Device depth
61,30 mm

19. NOM - Mexico

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352498068
1 NR
5.2x3.9x6.2 [cm]
59.5 [g]
Barcode Qty 10 NR
8007352498075
10 NR
20.5x11.5x7 [cm]
658.7 [g]
