2P+E16A German SICURY outlet+cover Metal - 19208.C.M

Pdf
Vimar - 19208.C.M - 2P+E16A German SICURY outlet+cover Metal
Foto gallery #1
Foto gallery #2
Vimar - 19208.C.M - 2P+E16A German SICURY outlet+cover Metal

19208.C.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

2P+E16A German SICURY outlet+cover Metal

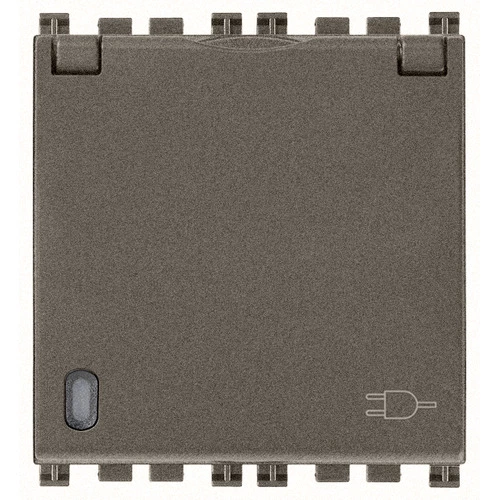

2P+E 16 A 250 V~ SICURY socket outlet, German standard, with cover, Metal - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
Yes
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Aluminium
RAL-number (similar)
9007
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other

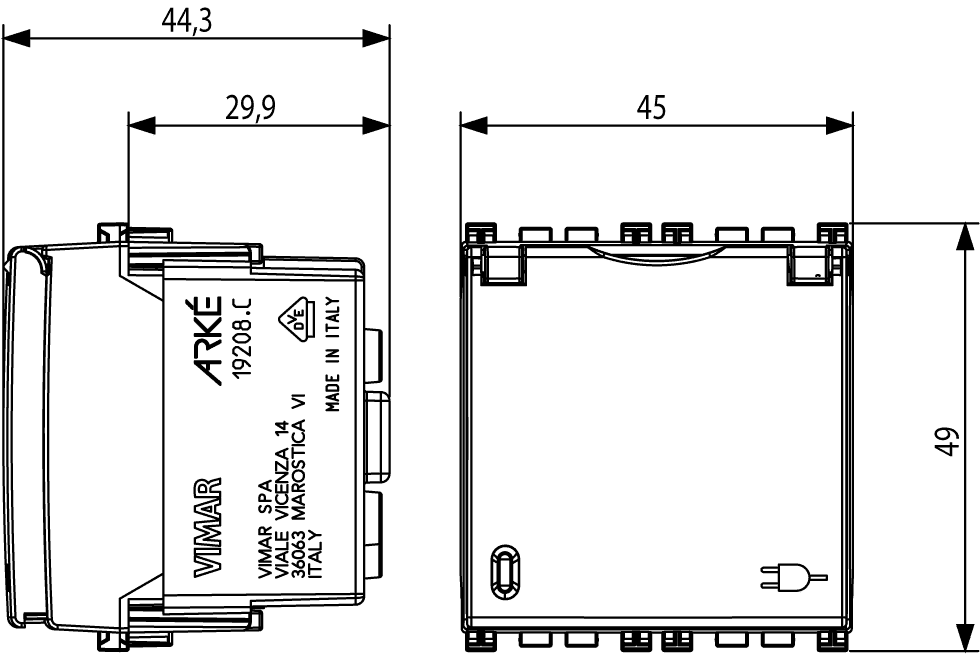

Device width
44,80 mm
Device height
49,00 mm
Device depth
38,90 mm

00. CE Marking - EU

09. VDE - Germany

10. EAC Eurasian Customs Union

12. AENOR - Spain

13. SNI - Indonesia

14. TSE - Turkey

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352595781
1 NR
5.1x4.3x5.3 [cm]
52.2 [g]
Barcode Qty 10 NR
8007352595798
10 NR
26.9x11.6x4.9 [cm]
587.6 [g]
