A+C-USB supply unit 15W 3A 5V 2M Metal - 19295.AC.M

Pdf
Vimar - 19295.AC.M - A+C-USB supply unit 15W 3A 5V 2M Metal
Vimar - 19295.AC.M - A+C-USB supply unit 15W 3A 5V 2M Metal
19295.AC.M

Arké Metal / Devices / USB power units

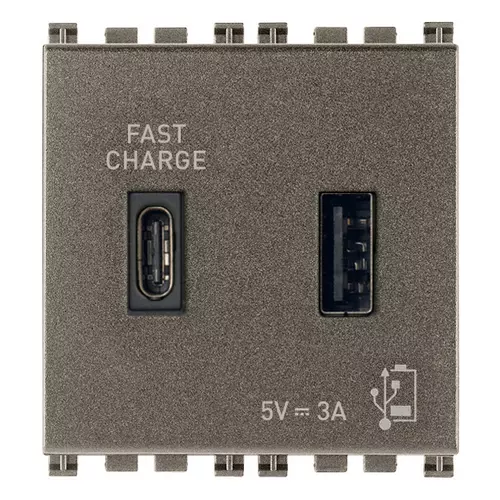

A+C-USB supply unit 15W 3A 5V 2M Metal
5 V 3 A USB power supply unit for electronic devices, 1 A-USB and C-USB ports providing a total of 3 A for charging a device up to 3 A (e.g. tablet) or simultaneously two devices (e.g. tablet, smartphone), supply voltage 120-240 V~ 50/60 Hz, Metal - 2 modules

  • The type C USB socket outlet is a standard used in latest-generation devices; since it is reversible, it can be inserted either way round
  • Type C outputs are designed for fast charging the device with currents up to 3 A on a single output

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 19295.AC.M
PNG DXF
rear view art. 19295.AC.M
PNG DXF
3D view art. 19295.AC.M
PNG DXF
Class group
Domestic switching devices
Class
USB power supply
Model
Bus
Mounting method
Flush-mounted
Colour
Aluminium
RAL-number
0

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352646896
1 NR
6x5.4x5.3 [cm]
65.2 [g]
Barcode Qty 10 NR
8007352646902
10 NR
28.1x13.1x6 [cm]
730.6 [g]
Barcode Qty 120 NR
8007352686571
120 NR
38.5x29x30 [cm]
9,409 [g]
